Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard

China Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard supplier
Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard supplier Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard supplier Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard supplier Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard supplier

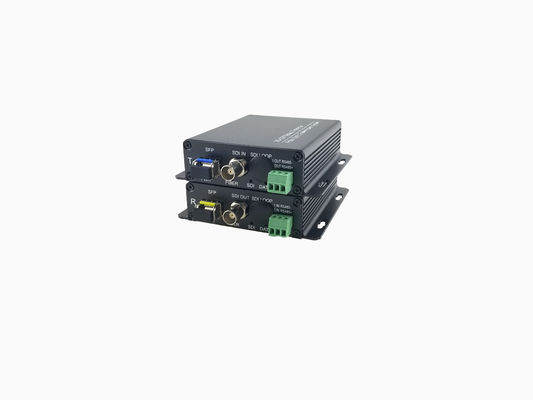

Large Image :  Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V1D-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Fiber Module: 3G SFP
Application: 3G SDI Broadcasting System Operating Temperature: -40~75°C
Interface Type: FC/SC/LC Support Resolution: 1080P@60fps

3G-SDI Video Audio Data Fiber Optical Transmitter and Receiver,8Ch forward 3G SDI video,180mm x 123mm x 30mm



Overview:

Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard
Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard



Feature:

1)  8 channel video and embedded audio transmission of digital video signal over optic fiber
2)  Handles pathological pattern
3)  Automatic cable equalization to ensure signal integrity
4)  Automatic reclocking 270Mbit/s 1.48Gbit/s 3Gbit/s
5)  Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards, DVB-ASI
6)  Long transmission capability at least 10 km(6.2 miles) , up to 80 km
7) Terminal block power input for industrial application
8)  Supports hot swapping and hot plugging
9)  Simplex LC/PC single mode optical connection



Specification:

SDI Format: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Data Rates: 270Mbit/s 1.48Gbit/s 3Gbit/s
Cable Equalization: Automatic cable EQ (Belden 1694A cable), 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
Connector: BNC 75 Ohm

Input Power: 5V DC
Power consumption (maximum): Transmitter: 1.8W Receiver: 1.5W
Operating temperature: 0°C to 55°C
Storage temperature: -10°C to 70°C
Operating humidity: 0 ~ 95% (non-condensing)
Case material: Aluminum



Application:

Digital audio transmission sdi to fiber optic converter 1080P@60fps Resolution SMPTE292M standard
