HDTV 4channel 3G-SDI video data converter , single mode fiber types fiber optic transmitter and receiver

China HDTV 4channel 3G-SDI video data converter ,  single mode fiber types fiber optic transmitter and receiver supplier
HDTV 4channel 3G-SDI video data converter ,  single mode fiber types fiber optic transmitter and receiver supplier HDTV 4channel 3G-SDI video data converter ,  single mode fiber types fiber optic transmitter and receiver supplier HDTV 4channel 3G-SDI video data converter ,  single mode fiber types fiber optic transmitter and receiver supplier HDTV 4channel 3G-SDI video data converter ,  single mode fiber types fiber optic transmitter and receiver supplier

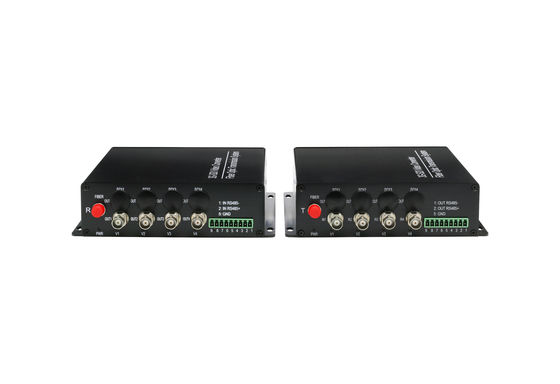

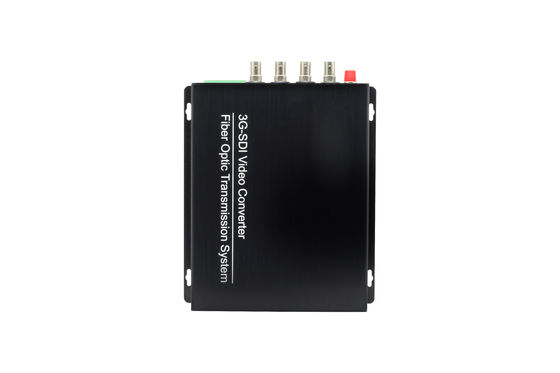

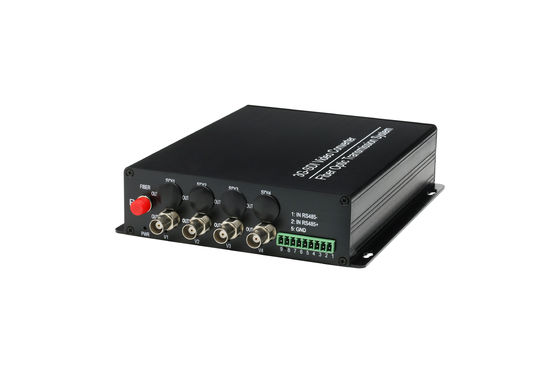

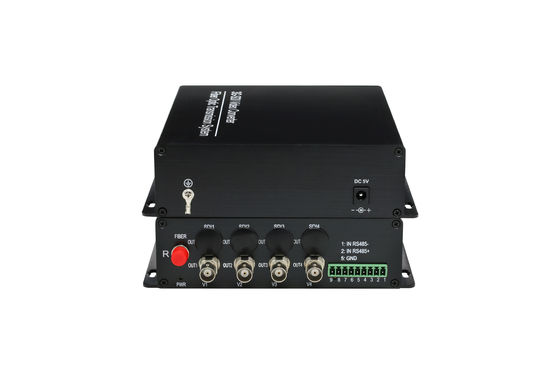

Large Image :  HDTV 4channel 3G-SDI video data converter , single mode fiber types fiber optic transmitter and receiver

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-4V-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Fiber Module: 3G SFP
BNC Number: 4 Warranty: 3 Years
Fiber Mode: Single Mode Or Multimode Fiber Type: Single Fiber

HDTV 3G-SDI Video Audio Data over fiber optic extender,4Ch 3G-SDI video,180mm x 123mm x 30mm







Overview:



      Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.







Feature:



1. 4 channel video and audio transmission of digital video signal over optic fiber

2. Handles pathological pattern

3. Automatic cable equalization to ensure signal integrity

4. Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

5. Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards.

6. Long transmission capability at least 10 km(6.2 miles), up to 80 km







Specification:

Optical

Wavelength 1310nm&1470nm~1610nm
Output Power -9~-3dBm / -3~+2dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -18dBm
Optical connector LC/PC (optional)
Distance 0~500M (MM) / 0~80KM (SM)

Video:

SDI Input
Signal Type SDI SMPTE 424M, SMPTE 292M, SMPTE 259M
Data Rates 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization

Automatic cable EQ (Belden 1694A cable)

250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

Connector BNC 75 Ohm
Number of tranmitter channel 4
Number of tranmitter Loopout 0
Number of receiver output4
General:
Input Power 5 V DC or12 V DC
Power consumption (maximum) Transmitter: 1.8W Receiver: 1.5W
Operating temperature 0°C to 55°C
Storage temperature -10°C to 70°C
Operating humidity 0 ~ 95% (non-condensing)
Net Weight 210g /pair (with Power supply 440g/pair)
Case material Aluminum









Application:

HDTV 4channel 3G-SDI video data converter ,  single mode fiber types fiber optic transmitter and receiver







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
