4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data

China 4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data supplier
4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data supplier 4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data supplier 4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data supplier 4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data supplier

Large Image :  4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-4V-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Fiber Connector: FC/SC/ST
Transmission Distance: 0-20KM Warranty: 3 Years
Wavelenght: 1310nm/1550nm

3G SDI fiber optic video converter extender,4Ch 1080P@30fps HD SDI video+1Ch embedded Audio180mm x 123mm x 30mm







Overview:



     Ho-link SD/HD/3GSDI transmitter and reveiver is the low cost transfer device for one way SD/HD/3GSDI video by single mode and multimode optical fiber cable transfer. SD/HD/3GSDI transmitter and reveicer is designed by digital optical transfer technology, transfer long distance one way SD/HD/3GSDI video signal on one single mode optical fiber. Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of tramsmitter and receiver: Transmitter convert SDI signal to optical signal; Receiver convert optical signal to SDI signal and output.

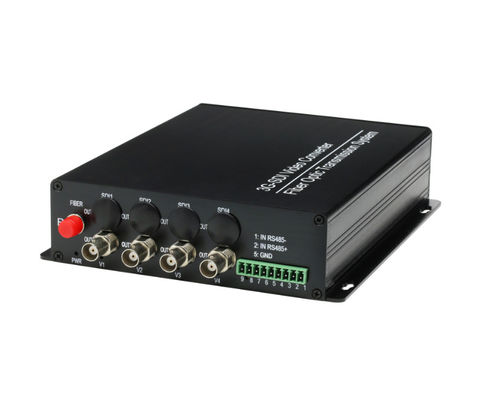

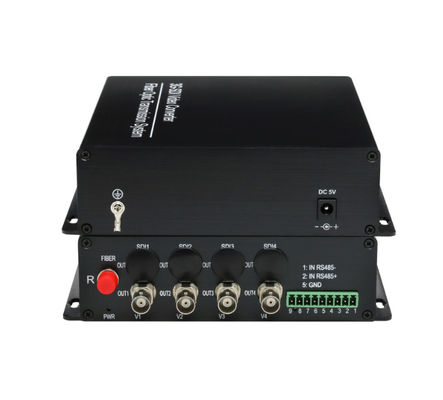

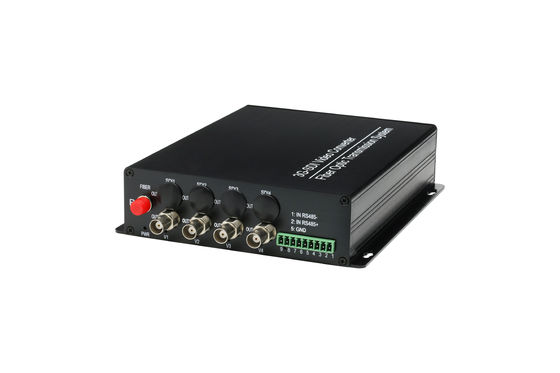

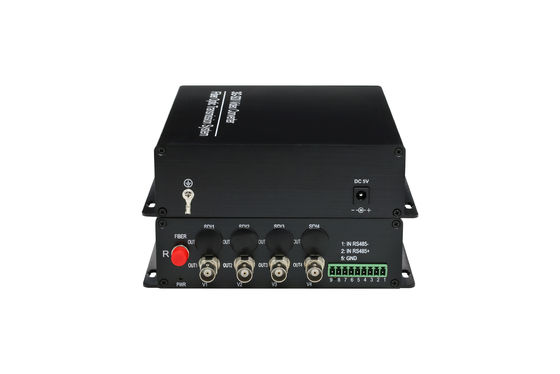

Photo show:

4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data

4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data





Feature:



1. 8bit/16.5MHz digital sample for video signal

2. High speed synchronous digital transmission technology

3. Module construction design

4. Super optical dynamic range

5. Power, optical, video and data status indication

6. Non electromagnetic interaction







Specification:



Model/Name HL-4V-20T/R/3D-SDI
Quantity/Type Single Mode, Single Fiber
Video port 3G-SDI
Transmission Distance 0m-20Km/30km/40km/60KM optional
Fiber Connector SC/FC
Wave Length 1310nm/1550nm
Transmitted power "-11dbm~-4dbm
MaximumReceiving Sensitivity <-26dbm
Signal Type SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Video Standard SMPTE259M/292M/344M/ITU
DATA comm. method RS232/422/ RS-485
Power Consumption 3~5 Watts
Operating Temperature Operating: -30℃ ~ +75℃
Storage Temperature Operating: -40 ~ +85
Relative Humidity 0~95% RH (Non-condensation)
Dimension 180mm x 123mm x 30mm
Weight 2kg







Application:

4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km





Payment



4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data



Our Services



Welcome to inquire!



4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data



Ho-Link Technology Co.,Ltd


4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km







Company Information


Company Profile



    Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

    Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
