HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio

China HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio supplier
HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio supplier HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio supplier

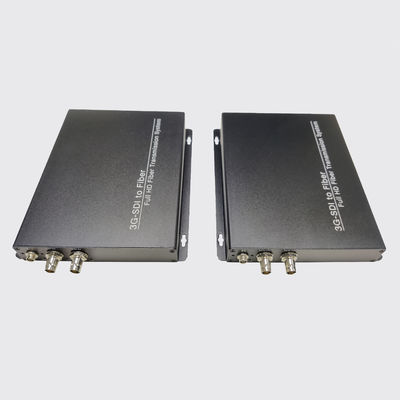

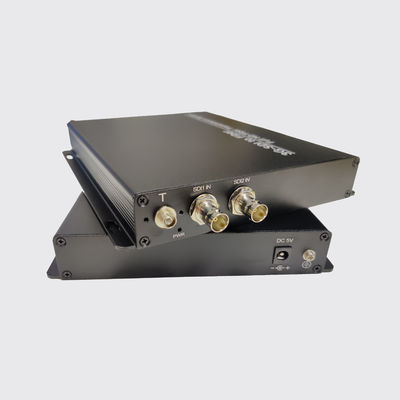

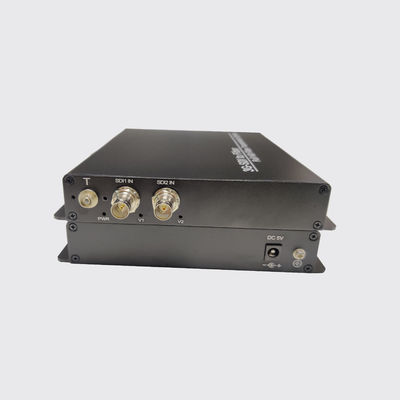

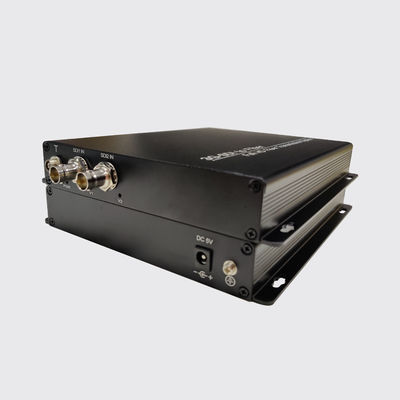

Large Image :  HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-2V1D-20T/R/3D-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Application: 3G SDI Broadcast System
Support Resolution: 1920X1080P@60Hz Fiber Module: 3G SFP
Warranty: 3 Years Weight: 2KG

HDTV 3G SDI to Fiber Converter 2Ch 3G SDI video with1Ch Return RS485 Data,180mm x 123mm x 30mm​





Product Description



System Design Fiber Optic Video Transmitter & Receiver



SDI series can transmission 1/2/4/8-Channels

SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.







Single-Mode or Multi-Mode



SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical

connector.



The Transmission distance Range according to the Optical Budget.



Manufacturer's default standard is single mode 20Km .

HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio







Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Specification:

Model/Name HL-2V1D-20T/R/3D-SDI
Quantity/Type Single Mode, Single Fiber
Video port SD/HD-SDI
Transmission Distance 0m-20Km/30km/40km/60KM optional
Fiber Connector SC/FC
Wave Length 1310nm/1550nm
Transmitted power "-11dbm~-4dbm
MaximumReceiving Sensitivity <-26dbm
Signal Type SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Video Standard SMPTE259M/292M/344M/ITU
DATA comm. method RS232/422/ RS-485
Digital Audio 48KHz
Bandwidth (-3db)20Hz-20khz
Power Supply ac220v/50hz
Power Consumption 3~5 Watts
Operating Temperature Operating: -30℃ ~ +75℃
Storage Temperature Operating: -40 ~ +85
Relative Humidity 0~95% RH (Non-condensation)
Dimension 210*140*25mm
Weight 0.55kg









Application:

HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio







Typical application

HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio



HDTV 3g sdi video digital optical converter SC / FC Fiber Connector 48KHz Digital Audio







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization
