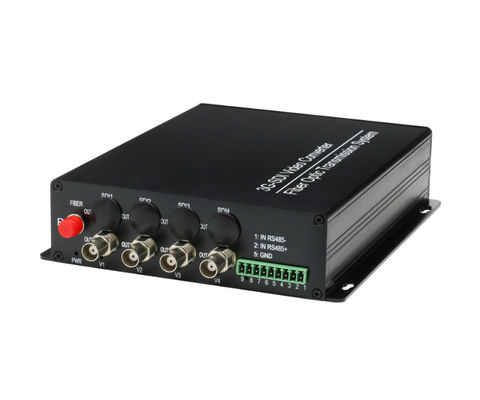

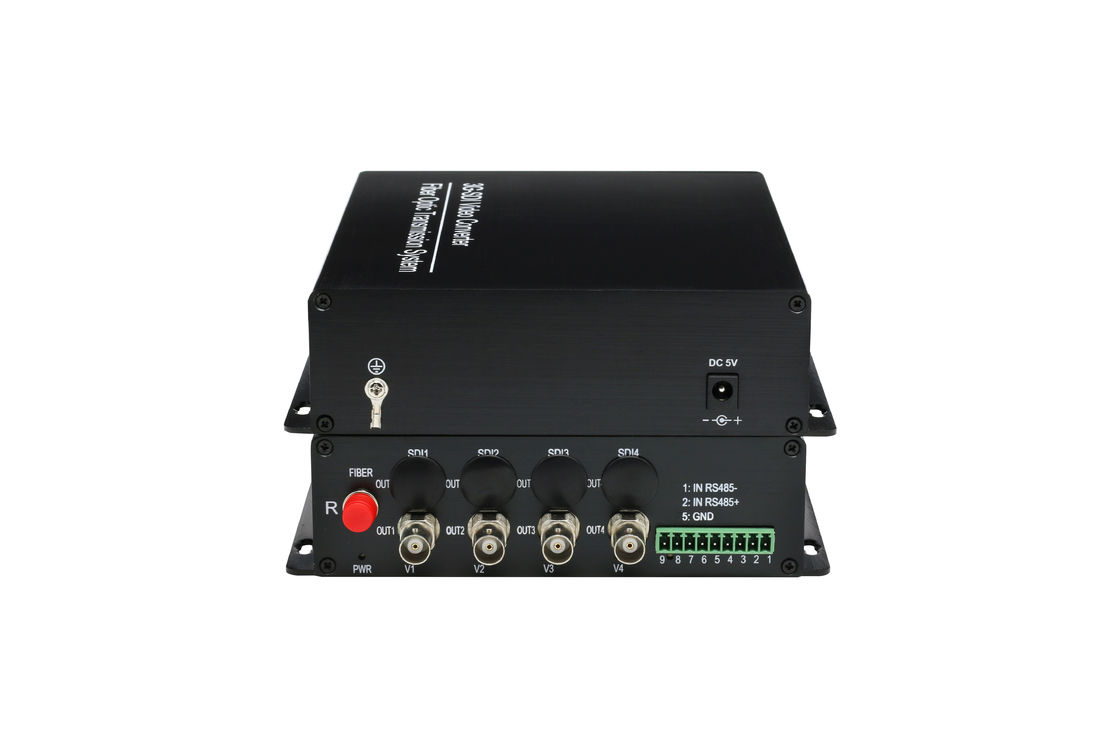

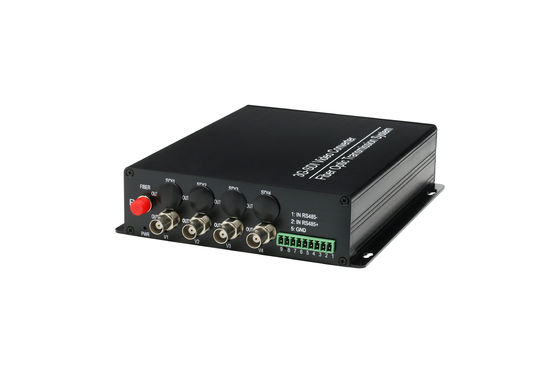

1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender

China 1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender supplier
1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender supplier 1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender supplier 1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender supplier 1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender supplier

Large Image :  1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-4V-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G-SDI Over Fiber Converter Color: Black
Audio: 1Ch Embedded Data Rate: 2.97Gbps
Standard: CE/ROHS/FCC Warranty: 3 Years

High definition 3G SDI to Fiber Converter transmitter receiver,1Ch 1080P Forward 3G SDI video,85mm x 76mm x 30mm






Product Description



System Design Fiber Optic Video Transmitter & Receiver



SDI series can transmission 1/2/4/8-Channels

SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender







Single-Mode or Multi-Mode



SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical

connector.



The Transmission distance Range according to the Optical Budget.



Manufacturer's default standard is single mode 20Km .1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender









Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Typical application





1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender1Pair 4 Channel 3G-SDI Video 1080P Single Mode Single Fiber Extender







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization







Specifications



Video



Number of channels : 1/2/4/8 channels

Input/out put Connector : BNC 75Ω

Input/output voltage: 1.0 Volt p-p

Video Bits Rate: Max 3.2Gb/s

Video SDI Standards: 270Mbps(SD-SDI)

1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)



Data

Data encode : RS485/RS422/RS232/Manchester

Physical interface : Industrial standard screw terminal

Frequency/Rate support : 0~400K bps



Fiber Optic

Number of Optical port : 1 SFP

Connector : Simplex LC

Transmission Distance: Multi-mode 550m

Single-mode 20Km – 80Km

Wavelength: Mulitmode:850/1310nm;

Single-mode:1310/1550nm (Option)



Connectors

Video : BNC 75Ω

Fiber Optical : Simplex LC

Stand-alone power: DC JACK

Rack power: AC line cord



Electrical & Mechanical



Power adaptor : AC 100-240V to DC 5V 2A

Power consumption : <3W



Environmental

Operating Temperature : -45 C~+75 C

Storage Temperature : -45 C~+85 C

Relative Humidity : 0%~95% (non-condensing)

MTBF : >100,000 hours



Remark: To meet the needs of our customers and help them to realize their projects, we also can

manufacture the products according to customers' requirements.
