Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter

China Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter supplier
Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter supplier Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter supplier

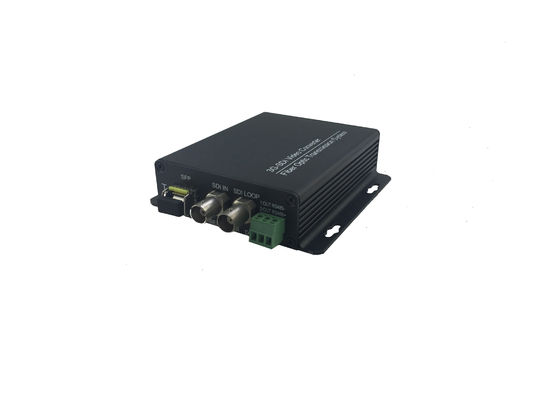

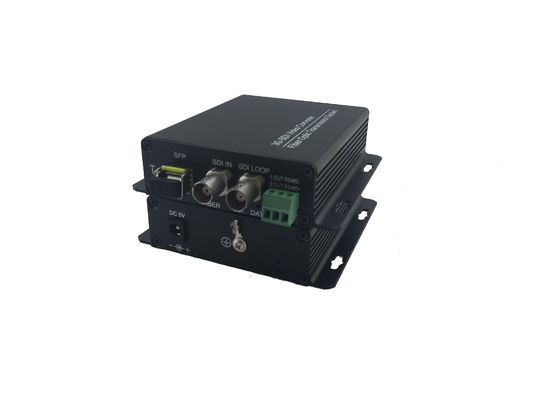

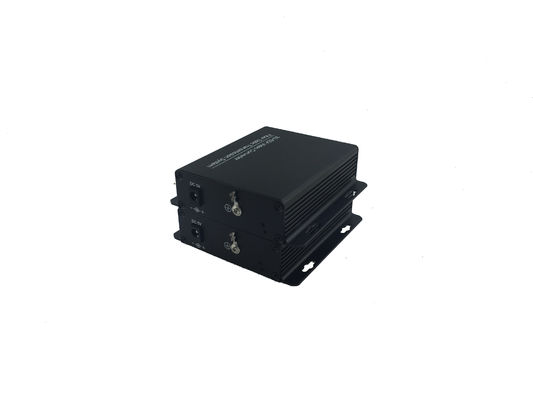

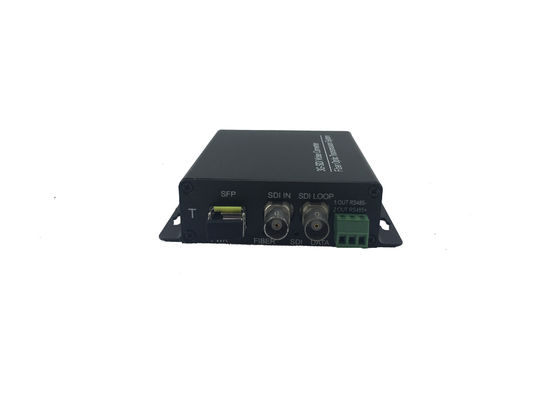

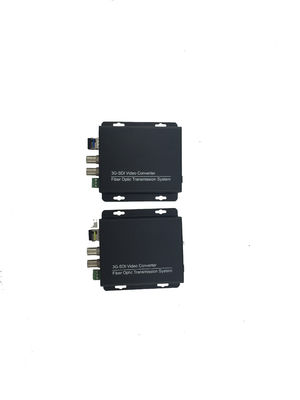

Large Image :  Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V1D-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G-SDI To Fiber Converter Application: 3G SDI TV Live Broadcast System
Support Resolution: 1080P@60fps Data Rate: 3G(max)
Standard: CE/ROHS/FCC Warranty: 36 Months

1 Channel 1920X1080P 3G SDI to Fiber Converter extender,with 1Ch Reverse RS485 Data,85mm x 76mm x 30mm







Overview:

    Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.







Feature:

  • SD/HD-SDI video signal supported;
  • Complied with SMPTE 259M SD-SDI, SMPTE 292M HD-SDI
  • Support 1485Mb/s and 270Mb/s transmission data rate
  • Audio, Switching Value, RS232/422/485 Data Oprional
  • Support 1080P@30,29.97,25,24,23.98; 1080I@60,59.94,50; 720P@60,59.94, 50,30,29.97,25,24,23.98 and 625i, 525i video format
  • Full digital non-compression broadcast level transmission;
  • super optic dynamic range and free of adjustment prior to use;
  • surface coating technique;
  • fiber optic WDM/CWDM/DWDM technique;
  • 1000M optical fiber transmission, easy for update;
  • industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;





Specification:

Model/Name HL-1V1D-20T/R/3G-SDI
Quantity/Type Single Mode, Single Fiber
Video port SD/HD-SDI
Transmission Distance 0m-20Km/30km/40km/60KM optional
Fiber Connector SC/FC
Wave Length 1310nm/1550nm
Transmitted power "-11dbm~-4dbm
MaximumReceiving Sensitivity <-26dbm
Signal Type SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Video Standard SMPTE259M/292M/344M/ITU
DATA comm. method RS232/422/ RS-485
Digital Audio 48KHz
Bandwidth (-3db)20Hz-20khz
Power Supply ac220v/50hz
Power Consumption 3~5 Watts
Operating Temperature Operating: -30℃ ~ +75℃
Storage Temperature Operating: -40 ~ +85
Relative Humidity 0~95% RH (Non-condensation)
Dimension 210*140*25mm
Weight 0.55kg









Application:

  • Police and safe city monitoring system
  • Express way security protection and toll station system
  • City traffic monitoring system
  • Building and campus monitoring system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasum (live video and audio transmission)
  •

    Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter



    Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter





Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter





Payment



Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter



Our Services



Welcome to inquire!



Full Real Time 1 Channel Video + RS485 Backward Data BNC Interface 3G/HD-SDI Fiber Converter
