1080p/60hz HDMI video Fiber Converter with RS485 / RS232 / optical audio receiver 5V3A Power

China 1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power supplier
1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power supplier 1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power supplier 1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power supplier 1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power supplier

Large Image :  1080p/60hz HDMI video Fiber Converter with RS485 / RS232 / optical audio receiver 5V3A Power

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-HDMI-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pair per month
Contact Now
Detailed Product Description
Product Name: HDMI To Fiber Converter Application: Fiber Optical Networking Telecommunications
Working Temperature: -40~75 Video Format: Up To 1920X1080P@60Hz
Power: 5V3A Receiving Sensitivity: -22dBm

HDMI over Fiber Converter &RS485/RS232/Audio for Advertising,Up to 1080P&60Hz,Single Fiber,20Km







Specifications:


Video I/O connector VGA/DVI/HDMI
HDMI version HDMI1.1 1.2 1.3
HDCP HDCP1.2
HDMI resolution 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format 24bit/deep color 30bit/deep color 36bit
Audio format DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Input cable length ≤20m AWG26 HDMI 1.3 standard cable
Output cable length ≤20m AWG26 HDMI 1.3 standard cable
Audio Connector USB-to-3.5mm audio Jack
Optical Connector SM/MM SC/FC type
Wave length 850nm/1310nm/1550nm
Physical Size (L× W ×H) Sender : 164mm*115mm*26mm
Receiver: 164mm*123mm*26mm
Case metal
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
Power consumption 15W
Environment Working temperature -15°C-55°C
Storage temperature -40-80°C
Humidity

0-95% (non-condensing)








Overview:


     H-HDMI-1V1D1A-T/RL Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable




Each LED indicator lamp:



Indicator Light HDMI Transmitter HDMI Receiver
VIDEO On Video signal on
Off Video signal off
LOCK On Fixed video signal
Off Not fixed video signal
RUN On Device works smoothly
Off Device not works smoothly
POWER On Power on
Off Power off

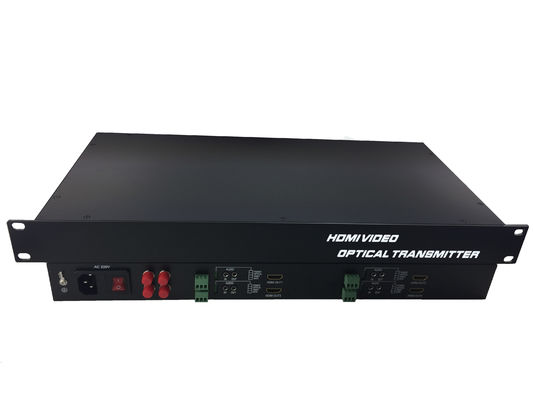

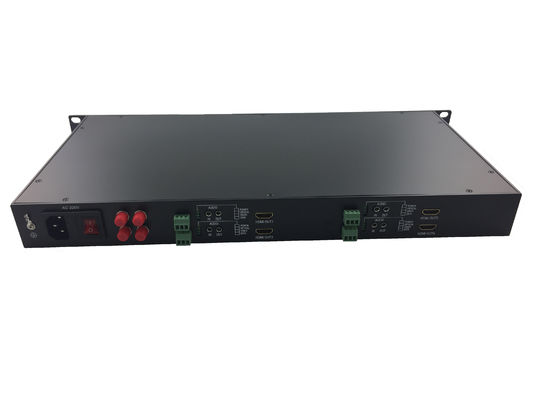

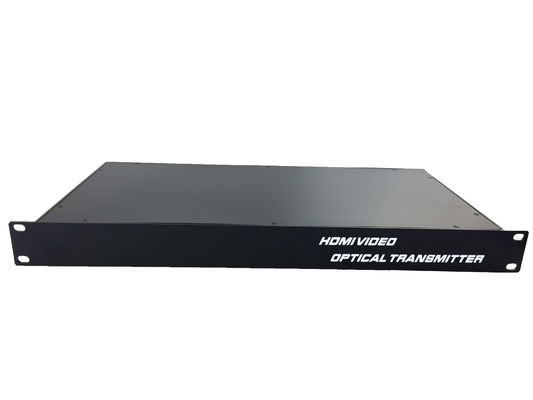

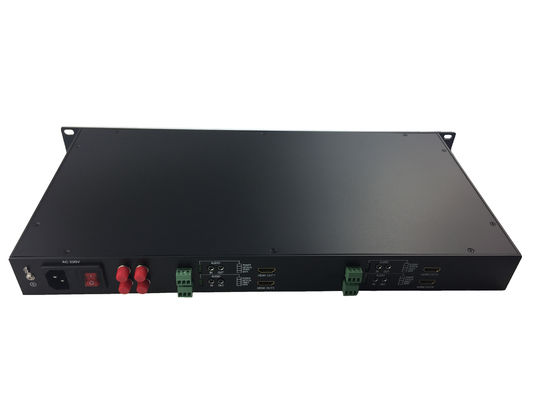

Photoes Show



1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power





Main Features:

1, max fiber transmission distances can reach up to 20km (multi-mode)

2, support max 1920*1080@60Hz resolution

3, support RS232,VGA/HDMI/DVI,PS2 keyboard and mouse,audio,MIC interface

4, 1 channel fiber optic output, compatible with any system, plug and play

5, support sampling frequency, phase, image horizontal and vertical adjustable

6, signal input indication








Applications:


1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power





Payment



1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power



Our Services



Welcome to inquire!



1080p/60hz  HDMI  video  Fiber Converter  with  RS485 / RS232 / optical audio receiver 5V3A Power
