4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P

China 4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P supplier
4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P supplier 4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P supplier 4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P supplier 4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P supplier

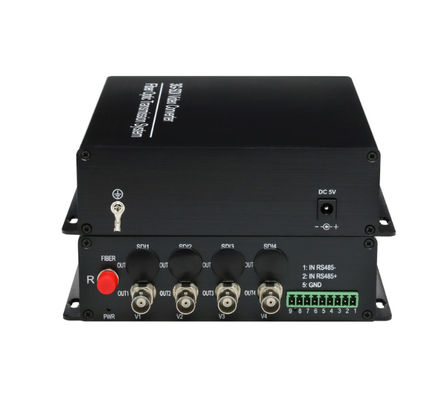

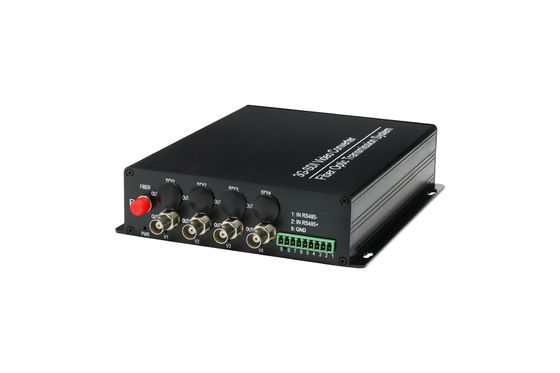

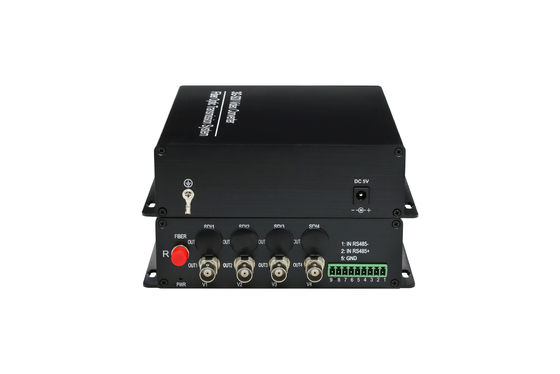

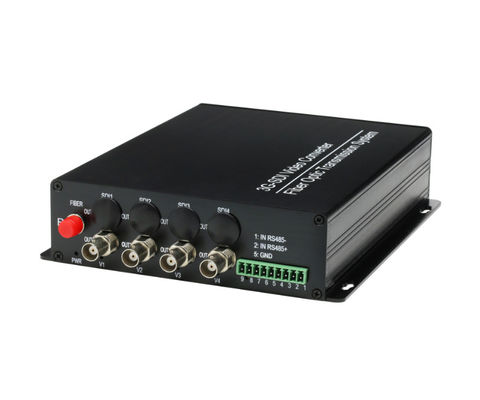

Large Image :  4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-4K SDI-1V-20T/R

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or Western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 4K SDI To Fiber Converter Data Rate: 10G
Transmission Distance: 0-80KM Color: Black,Customerized
Support Resolution: 1920*1080@120HZ 4K*2K@30Hz Warranty: 3 Years

4K SDI broadcast SDI to Fiber Converter 1Ch 4K SDI video,support 3840X2160P,180mm x 123mm x 30mm



Overview:

     Ho-link 4K SDI over Fiber Converter / 4 Channel 3G SDI over Fiber Converter is an ideal and economic solution for broadcasting or surveillance applications, with which you can transmit 4-ch SDI & embedded audio up to 20km away, only one single fiber. Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality.

4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P


Feature:

1) 4 Channel 3G-SDI High density digital audio/video fiber transmission
2) Handles pathological pattern
3) Automatic cable equalization to ensure signal integrity
4) Support SMPTE-424M 3Gbps HD-SDI,SMPTE-292M HD-SDI , SMPTE-259M SDI

5) Long transmission capability at least 10 km(6.2 miles) , up to 80 km
6) SD, HD, 3G input auto indentification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format


Specification:


Product Name: 4K SDI to Fiber Converter
Item No.: HL-1V-20T/R/4K-SDI
Formats: 1.485Gb, 270Mb, 2.97G Auto Select, meet all relevant SMPTE specifications
Fiber Cable: Standard single mode fiber, Single Connector
Fiber Connector: FC/ST/SC
Transport distance: Up to 20 km
Power supply: DC 5V
Size: 168mm×154mm×45mm



Signal input and output :

Item Transmitter Receiver
3G-SDI x Input 1x Output
Audio 1x embedded audio (BNC) 1x Embedded audio (BNC)
Data (RS422/RS485) None None
Fiber 1x FC/ST/SC, Single mode 1x FC/ST/SC, Single mode,




Application:

4K SDI broadcast fiber video converter , 4Ch 4K SDI video transmitter support 3840 X 2160P
