1channel 1080P/60hz HDMI video fiber optic converter extender for Multimedia publishing system with RS232

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

1channel 1080P/60hz HDMI video fiber optic converter extender for Multimedia publishing system with RS232

China 1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232 supplier
1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232 supplier 1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232 supplier 1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232 supplier 1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232 supplier 1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232 supplier

Large Image :  1channel 1080P/60hz HDMI video fiber optic converter extender for Multimedia publishing system with RS232

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-HDMI-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pair per month
Contact Now
Detailed Product Description
Product Name: HDMI Over Fiber Converte Application: Multimedia Publishing System
Material: Metal Video Format: Up To 1920X1080P@60Hz
Color: Black Fiber Type: Multi-mode/Single-mode (optional)





 HDMI Video & Audio & RS232 to Fiber Converter for Advertising ,Support 1080P@30Hz/60Hz,3G Fiber Bandwidth,Black Color High quanlity








Specifications:


Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution range Up to 1920X1080P@60Hz
Connector Female HDMI type A
Impedance 100Ω
Optical fiber Interface SFP model – LC connector
Fiber type Multi-mode / single-mode (optional)
Wavelength

Multi-mode 850nm /

Single-mode 1310nm(optional)

Interface bandwidth 10Gbps
Transmission distance

OM3 multi-mode fiber: maximum 300m,

Single-mode fiber: standard 2km;maximum 10km

Other Power supply The power adapter: DC 5V/2A
Power dissipation MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 94.5*73*26mm
The warranty 1 year free warranty, life-long maintenance






Overview:

    H-HDMI-1V1D1A-T/RL HDMI to Fiber Optic Converter provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P,EDID
copy function. The extender can use for a wide range of applications requiring long
distance transmission of high resolution with high quality by its good stability and
powerful security.

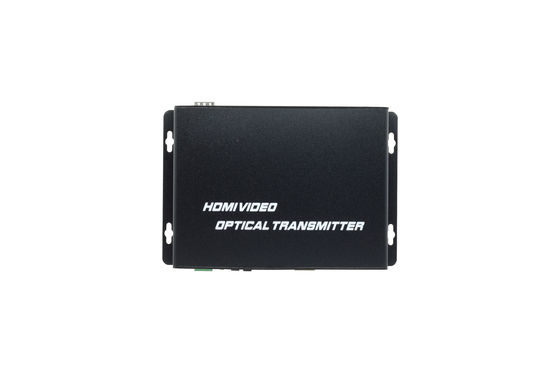

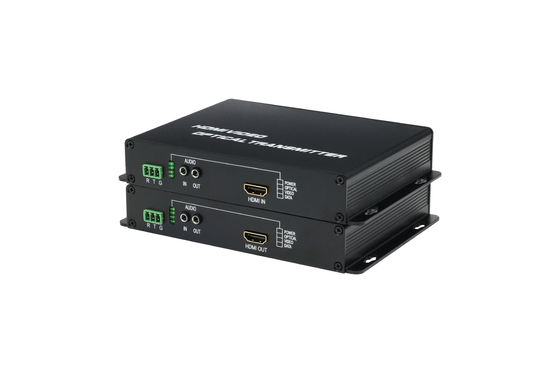

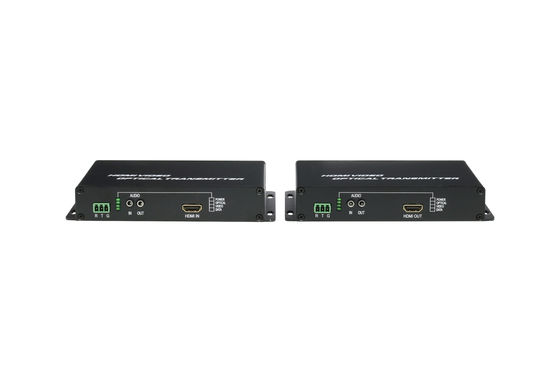

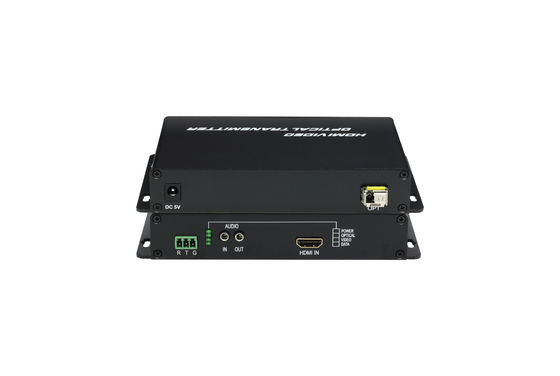

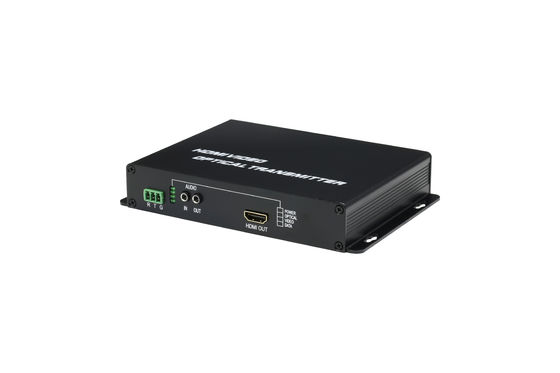

Photoes Show



1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232


Each LED indicator lamp:



Indicator Light HDMI Transmitter HDMI Receiver
VIDEO On Video signal on
Off Video signal off
LOCK On Fixed video signal
Off Not fixed video signal
RUN On Device works smoothly
Off Device not works smoothly
POWER On Power on
Off Power off






Main Features:

1, Transmits HDMI video signals up to 2km-10km over one fiber optic cable

2, Support video resolution up to 1920*1200@60Hz, 3D signal

3, Support copy EDID, can match many kind display device

4, Compliance with HDMI 1.3 and HDCP 1.2 standard

5, High compatibility, can auto-match source and display device

6, Built-in automatic adjustment system, make the image smooth, clear and
stable

7, Built-in ESD protection system

8, Simple to install, plug and play





Applications:

1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232



Shipping:



1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232





1channel 1080P/60hz HDMI video fiber optic  converter extender for Multimedia publishing system with RS232
