4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

China 4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km supplier
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km supplier 4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km supplier 4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km supplier 4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km supplier 4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km supplier

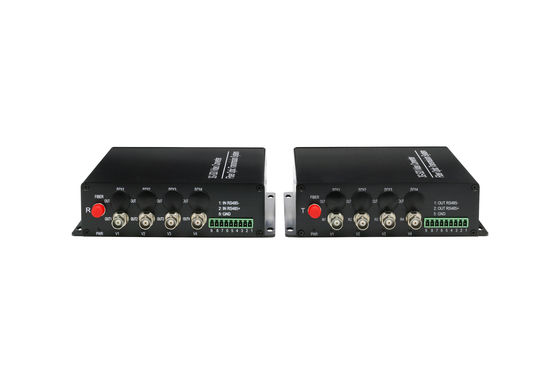

Large Image :  4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Data Rate: 2.97Gbps
Interface Type: FC/SC/LC Support Resolution: 1080P@60fps
Cage: Aluminum Alloy Weight: 2KG

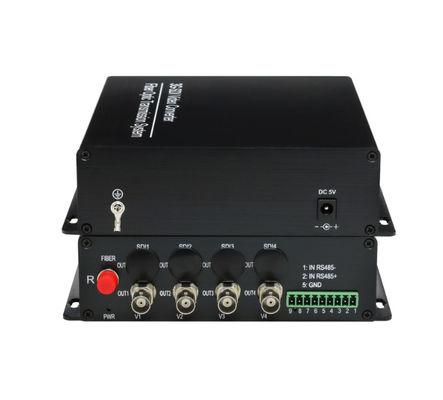

4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km







Overview:



     Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

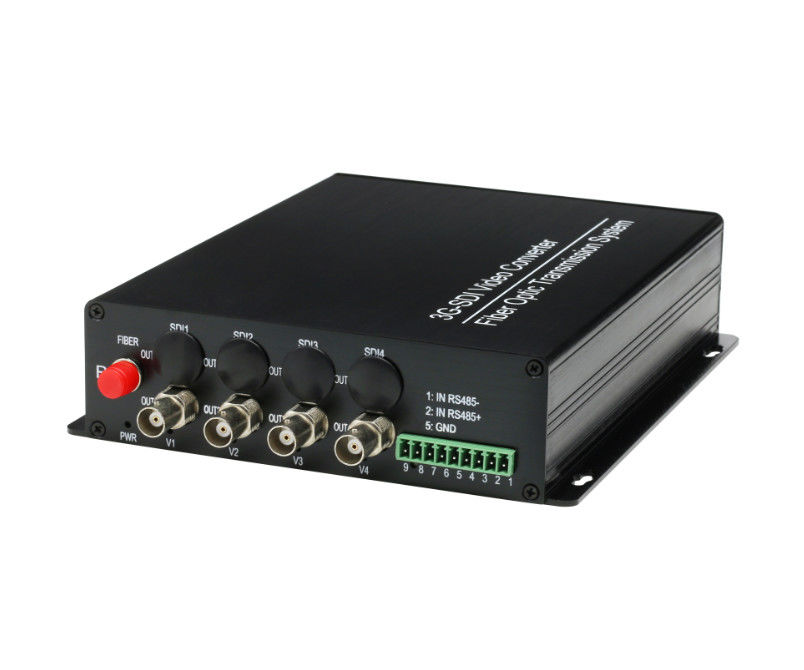

4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km







Feature:



1. 8 Channel HD-SDI High density digital audio/video fiber transmission

2. Handle all Pathological patterns

3. SD, HD, 3G input auto indentification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s

4. Support SMPTE-424M 3Gbps HD-SDI,SMPTE-292M HD-SDI , SMPTE-259M SDI

5. 10Km on single Mode Fiber transmission

6. 1470~1610nm CWDM wavelengths optional.









Specification:



SDI input/output
Signal format SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface BNC 75 Ohm
Fiber interface TC/UPC
Number of tranmitter channel 8
Transmitter wavelength CWDM wavelength optional
Transmitter output power -5~0dBm(0±3dBm optional)
Number of receiver output 8
Receiver sensitivity -18dBm~0 dBm
General index
Input power DC 12V
Power consumption 8W
Work Temp -20°C to 55°C
Storage Temp -40°C to 85°C
humidity 0 ~ 95% (non-condensing)
Net weight 2.5KG/pair









Application:

  1. Remote OB Van/Truck Video Feeds
  2. Broadcast Studio Camera Feeds
  3. Long-haul Signal Transport
  4. TV station/video conference
  5. Lecture Hall Projector Connectivity
  6. Medical/Surgical Room Broadcast
  7. Building to ing video conference calling
  8. Small corporate campus video links Product connection diagram4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data




Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

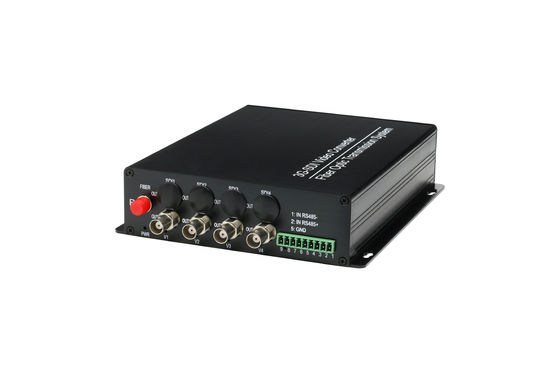

4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
