1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard

China 1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier
1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier 1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier 1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier 1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier 1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier 1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard supplier

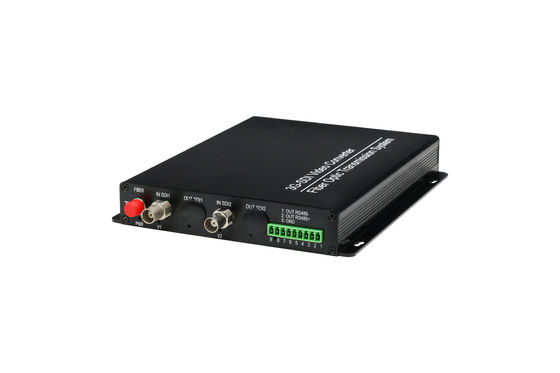

Large Image :  1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V1D-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Fiber Module: 3G SFP
Application: 3G SDI Broadcasting System HS Code: 8517622100
Interface Type: FC/SC/LC Support Resolution: 1080P@60fps,1080P@30fps

HDTV Broadcasting 8 Channel 1080P 3G SDI to Fiber Converter with 1Ch RS485 Data,180mm x 123mm x 30mm







Overview:



    Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

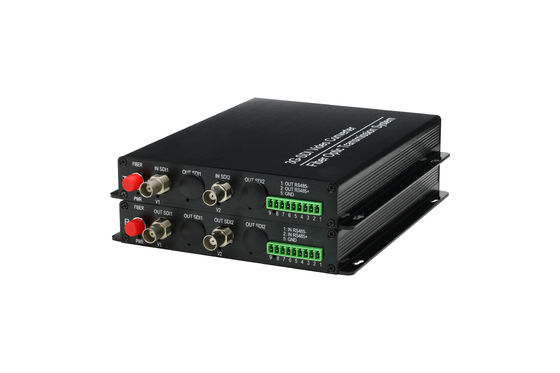

1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard







Feature:



1. 8 Channel HD-SDI High density digital audio/video fiber transmission

2. Handle all Pathological patterns

3. SD, HD, 3G input auto indentification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s

4. Support SMPTE-424M 3Gbps HD-SDI,SMPTE-292M HD-SDI , SMPTE-259M SDI

5. 10Km on single Mode Fiber transmission

6. 1470~1610nm CWDM wavelengths optional.









Specification:


Parameter
Description
Video connector BNC
The interface bandwidth 1.4835Gbps,1.485Gbps,2.97Gbps
impedance 75Ω
Resolution 1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz;
1280*720P@50Hz; 525i; 625i
RS485 connector Industrial terminals
Baud rate Self-adaptive, Max:115200bps
Optical fiber connector LC/SC
type Single-mode
Wavelength Single-mode 1310nm
bandwidth 2.97Gbps/1.25Gbps
Transmission distance Single-mode:3/20/40/80km
Other Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Temperature -5ºC ~ +70ºC
Humidity 5% ~ 90%
Size 120mmX97.5mmX25.2mm
Warranty 1 year







Typical application

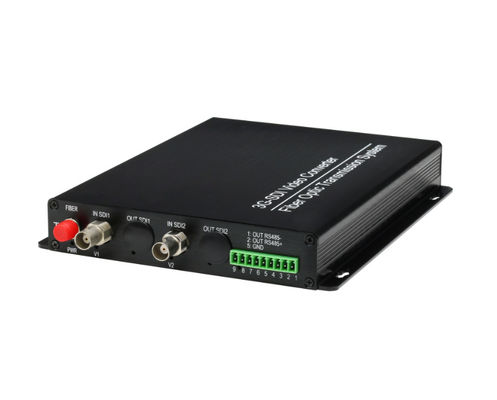

1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard

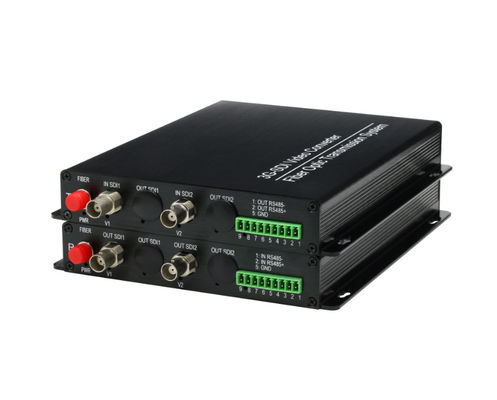

1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard





Payment



1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard



Our Services



Welcome to inquire!



1080p FC / SC / LC Interface type 3G SDI converter optical fiber receiver SMPTE 310m standard
