Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm

China Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm supplier
Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm supplier Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm supplier Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm supplier

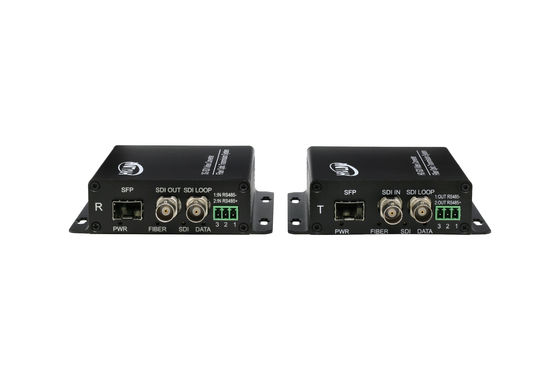

Large Image :  Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V1D-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G-SDI Over Fiber Converter Application: 3G SDI Multimedia System
Support Resolution: 1080P@60fps Fiber Module: 3G SFP Module
Standard: CE/ROHS/FCC Transmission Distance: 0-80KM

High quality 1Ch 1080P 3G SDI to Fiber Converter for TV live broadcast system,85mm x 76mm x 30mm







Overview:

    Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

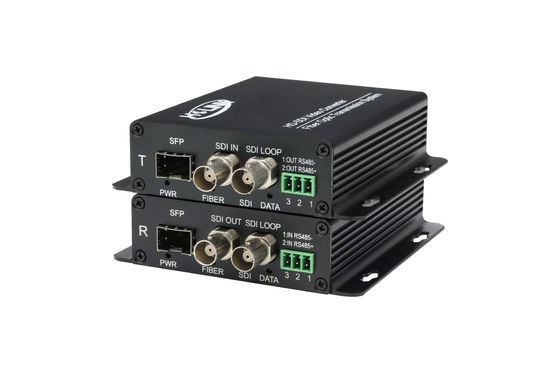

Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm



Feature:

  • SD/HD-SDI video signal supported;
  • Complied with SMPTE 259M SD-SDI, SMPTE 292M HD-SDI
  • Support 1485Mb/s and 270Mb/s transmission data rate
  • Audio, Switching Value, RS232/422/485 Data Oprional
  • Support 1080P@30,29.97,25,24,23.98; 1080I@60,59.94,50; 720P@60,59.94, 50,30,29.97,25,24,23.98 and 625i, 525i video format
  • Full digital non-compression broadcast level transmission;
  • super optic dynamic range and free of adjustment prior to use;
  • surface coating technique;
  • fiber optic WDM/CWDM/DWDM technique;
  • 1000M optical fiber transmission, easy for update;
  • industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;





Specification:

Serial TV, BNC Input Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom
rate 2.97Gb/s)
Input number: 1
Reflection loss: >15DB
Equilibrium: 0-150m @1.485Gb/s
Connector: FC/PC(SC/PC optional)
Optics Channel: 1
Type: single-mode (multimode optional)
Wavelength: 1310nm /1550nm
Trasmission distance 20Km
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
Serial TV, BNC output (EO/OE) Output number:1
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Analog audio Input/ output impedance: 600Ω equilibrium
Input/output interface: XLR
Max. input/output level: +15 dBu
Frequency Response: 20Hz-20KHz,±0.1dB
SNR: > 85dB(A weighted)
THD+N: < 0.01%@1KHz
Crosstalk: < -90dB
Data Channel: 1
Data format: RS-485/422/RS232 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal
Power and environmental indication Operating temperature: -40℃~+85
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours
SDI video format supports 625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;








Typical application

Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm



Best price SD-SDI 3G SDI converter with 1Ch 485 Data hd media converter 85mm x 76mm x 30mm







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization
