2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver

China 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver supplier
2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver supplier 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver supplier 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver supplier 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver supplier 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver supplier

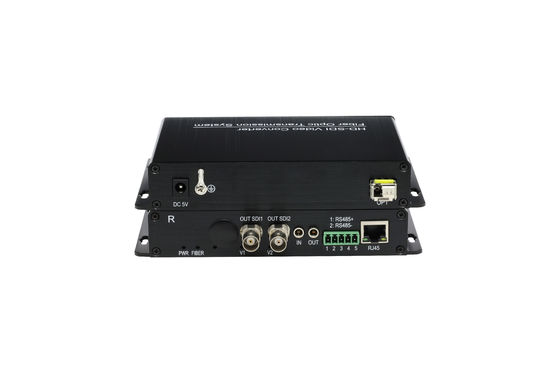

Large Image :  2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Support Definition: 1080P@30Hz
Operating Temperature: -40~85℃ Comply Standard: SMPTE-292M HD-SDI And SMPTE-259M SD-SDI
Data Rate: 2.97Gb/s,1.485Gb/s And 270Mb/s Fiber Type: SM Or MM

1080P Ho-link HD-SDI Video Digital Converter single mode single fiber 3G SDI, 98 x 65 x 28mm



Overview



     HD SDI Video Digital Converter 2.1CH Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber. 3.Fast Delivery.HD-SDI video digital optical converter adopts international advanced all-digital gigabit optical fiber transmission technology Technique,.the HD SDI video signal can be transmitted through 1 single fiber with non- Distortion, high-quality, long-distance transmission is .This series of video to fiber converter has Stable performance, clear picture quality.,and high Stability with LED Status Indication on the body of device.



    the working status of devices can be visually observed.At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by RS485 or RS232.This makes our devices more flexible when different customers’ request comes.
HD-SDI Video Digital Converter single mode single fiber 3G SDI

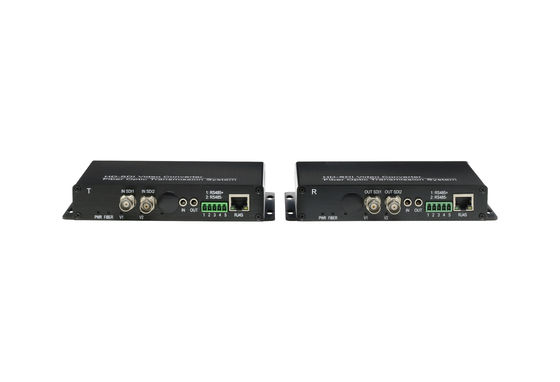

 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver






 Features:
1) SD, HD, 3G input automatic detection, All SMPTE compliance.
2) Support 270Mbit/s 1.48Gbit/s 3Gbit/s rate;
3) Support 1080P-60HZ 3G-SDI format; support 720P, 1080i, 1080P;
4) Support for SMPTE-424M, SMPTE-292M, SMPTE-259M SDI serial digital video signal and DVB-ASI signal
5) No compression without delay, lossless transmission reliable through optical fiber;
6) Battery powered mode transmission distance is more than 10KM, up to 80KM;
7) Photoelectric mixed cable power supply distance can reach more than 250 meters.
8) Aluminum alloy precision manufacturing, the size of a BP battery, lightweight convenience, type A or type V pinch with flexibility;
9) Wide temperature range, low power consumption
10) Handles pathological pattern
11) Plug-and-play
12) Long transmission capability at least 10 km, up to 80 km





Description



Model HD-SDI
Type Transmitter Receiver
Standard Supported SMPTE 259M (270Mb/s), SMPTE 292M
Speed 270Mb/s, 1.485Gb/s (automatic selection)
Support Input Format SD: 525i @ 59.94Hz, 625i @ 50Hz
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
720p @ 50Hz / 59.94Hz / 60Hz
1080i @ 50Hz / 59.94Hz / 60Hz
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz
Indicators Power on (on both end)
Sync detection (on both end)
Link between the two units working (on both end)
Connectors 1x BNC 75 ohm female
1x RJ45 of CAT5e/6 unshielded or shielded twisted pair
1x power plug, 2.1mm
Maximum Distance All resolutions
CAT5 UTP/STP: 50m / 160ft
CAT6 UTP/STP: 60m / 200ft
Power Supply DC12V/1A
Power Consumption 2.5W (Tx and Rx)
Operating Temperature -10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Dimensions (L*W*H) 98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches



Application:

1) Television studio, mobile studio
2)  EFP (Electronic Field Production) electronic field production, large-scale sports competitions and large-scale celebration live.
3)  Airports, studio complexes, arenas, and campus environments
4)  ENG and OB vans, SNG vehicles, and production trailers.







High Quality 1080P HD-SDI Fiber Converter







Application:
 2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver


Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver





Payment



2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver



Our Services



Welcome to inquire!



2 HD-SDI optical extender fiber video converter Standalone single fiber single mode fiber transceiver
