HD 3G SDI to Fiber optical Video converter 20KM fiber transmitter

China HD 3G SDI to Fiber optical Video converter 20KM fiber transmitter supplier

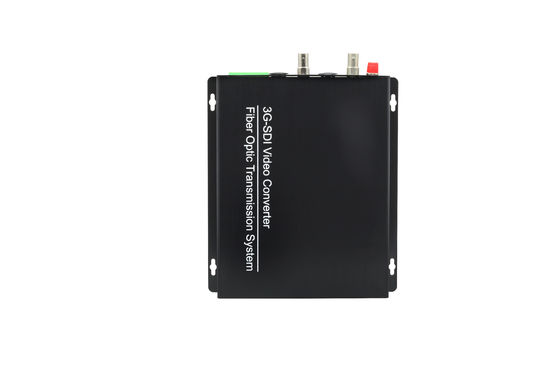

Large Image :  HD 3G SDI to Fiber optical Video converter 20KM fiber transmitter

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-2V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000Pairs/Month
Contact Now
Detailed Product Description
Product Name: HD-SDI Video To Fiber Converter Color: Black
Warranty: 3 Years Wave Length: 1310nm/1550nm
Fiber Connecter Type: FC Transmission Distance: Standard 10km

2Ch HD-SDI video converter+1Ch outside forward bidirectional Stereo Audio 3.5mm Jack with 1 Ch RS485

    HO-link LNK-SDI Series SDI Video Digital Optical Converter is used in the television industry for highly reliable, high-performance serial digital optical transmission equipment, systems support SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, as well as DVB-ASI (EN50083-9), such as digital TV format standards to meet industry level product requirements.


HD 3G SDI to Fiber optical Video converter 20KM fiber transmitter


  • Transmission 1 channel ASI / TS streaming digital television signals over a single fiber.
  • Supports SMPTE 259M and SMPTE 344M.
  • Supports data rates in the range of 143, 177, 270, 360, 540 Mbps and 270 Mbps DVB-ASI.
  • Automatic input equalization coaxial maximum 350m @ 270Mbps
  • The power and other parameters can monitor the system status indication LED Hot-swappable
  • Support 4U chassis, 1U chassis and independent structure et signal (shared 100M bandwidth, support port VLAN)

Technical Indexes

Transmission distance 0~20km(optional 40km,60km)
Wave length 1310nm/1550nm
Fiber connecter type FC
Transmission power -10~-3dbm
Fiber count 1
Receive sensitivity >-34dbm
Compatible standard SMPTE292M, SMPTE259M
Rate 270Mbps ~ 2.97Gbps
Video interface BNC SD/HD/3G-SDI
Signal interface 2*RS485
inputoutput level 800mVp-p±10%
Input/out put impedance 75Ω
Digtal video 48KHz
AES digtal video CH 8
AES digtal video CH 0℃~40℃/32℉~104℉
Operatation Temperature -20℃~60℃/-4℉~140℉
Shortage Temperature 5~24VDC
Dimension 177×150×30mm
Weight 450g








  • Animal films recording;
  • Live events broadcast over fiber
  • High performance(error-free) surveilance networks in Army or security;
  • Large video wall system
  • Intelligent Traffic Monitoring System
  • Security systems
  • School networking
  • Industrial monitoring (Electricity,Chemistry,Steel,Oil,Railway & etc)
  • Military Monitoring (Warehouse,Border,Guards,etc)
  • Stadium (For LIVE HD video,audio transmission)
