|DC Offset (maximum Allowable):||5V||Transmission Distance:||20km-100km|
|Resolution:||8 Or 10bits, Automatic||Data Connector:||RS-485/422,RS232|
|Optical Interface:||FC SC ST||Interface:||1 Channel HD-SDI Video Input|

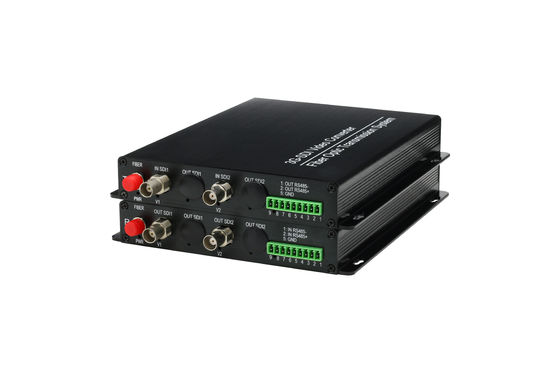

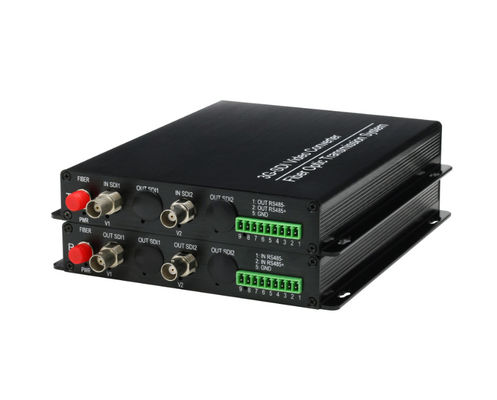

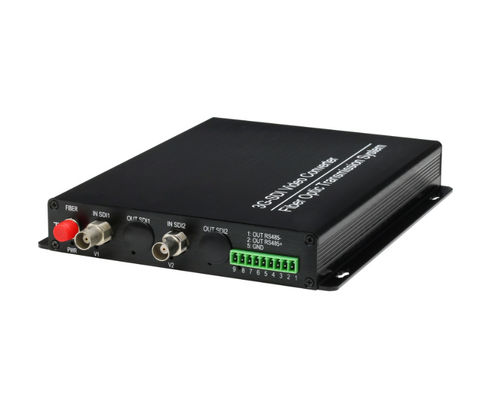

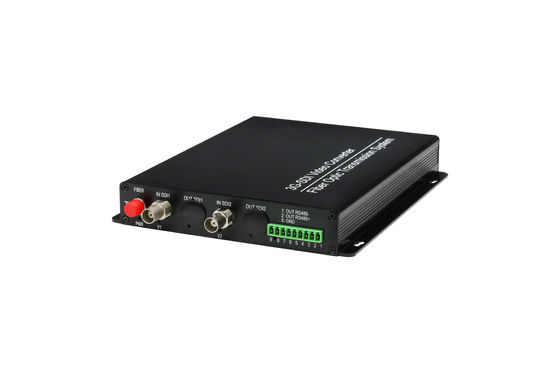

2Ch Forward HD SDI video embedded with audio + 1Ch Return RS485 Data
The SD/HD-SDI transmitter and reveiver is the low cost transfer device for one way SD/HD-SDI video by single mode and multimode optical fiber cable transfer. SD/HD-SDI transmitter and reveicer is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal(optional one way reverse 485 control signal) on one single mode optical fiber. Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of tramsmitter and receiver: Transmitter convert SDI signal to optical signal; Receiver convert optical signal to SDI signal and output.
•.Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive
Parameter of hd-sdi media converter
|SDI Video||Interface||1 Channel HD-SDI Video Input|
|Connector||1 BNC Connector|
|Signal Type||HD-SDI,SDI Digital Video Signal|
|Support Agreement||SMPTE259-M-C, SMPTE 292M, SMPTE424M,|
|ITU-R BT. 601, ITU-R BT.1120|
|Resolution||8 or 10bits, Automatic|
|Rate||270Mbps, 1.485Gbps, 2.970Gbps|
|Automatic Data Rate Lock||Yes|
|The nominal level||0.8Vp-p|
|Minimum / maximum level||0.5V-1Vp-p No offset|
|Return Loss||≥15Db 5MHz-1.5GHz|
|DC offset (maximum allowable)||5V|
|Input cable equalization||Automatic reach of fiber loss -30dB|
