2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter

China 2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter supplier
2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter supplier 2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter supplier 2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter supplier 2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter supplier 2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter supplier

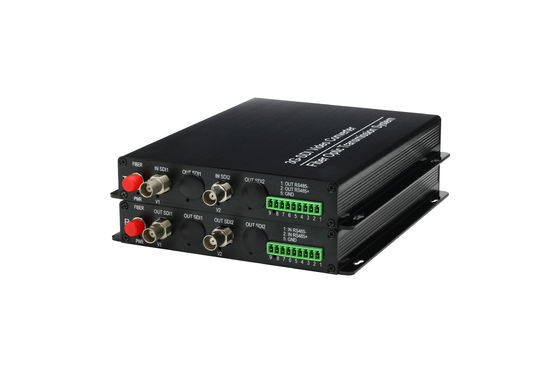

Large Image :  2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter

Product Details:

Place of Origin: CHINA
Brand Name: HO-Link
Certification: CE RoHS FCC
Model Number: HL-HDSDI-2V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 15 Pairs
Price: Negotiation
Packaging Details: International standard package
Delivery Time: 1-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
DC Offset (maximum Allowable): 5V 2A Transmission Distance: 20km-100km
Resolution: 8 Or 10bits, Automatic Data Connector: RS-485/422,RS232
Optical Interface: FC SC ST Interface: 2 Channel HD-SDI Video Input
Working Temperature: -30 °C ~ +75 °C Video Digital Bit Width: 8/10 Bit
Input Rating Voltage: AC220V/50Hz Certificates: CE/FCC/RoHs



2Ch Forward HD SDI video embedded with audio + 1 Ch Return RS485







Overview



     The SD/HD-SDI transmitter and reveiver is the low cost transfer device for one way SD/HD-SDI video by single mode and multimode optical fiber cable transfer. SD/HD-SDI transmitter and reveicer is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal(optional one way reverse 485 control signal) on one single mode optical fiber. Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of tramsmitter and receiver: Transmitter convert SDI signal to optical signal; Receiver convert optical signal to SDI signal and output.

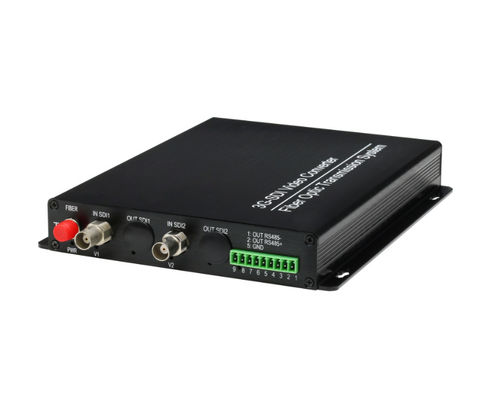

2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter





Features





.Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive

.Meet SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (SDTI) standard
.High-precision PCR correction, the average PCR jitter is usually maintained at 20 ~ 60ns
.Transmitter output power 0 ~ -14dBm (loss determined according to the actual chain of transmission power)
.By Pathological (extremely harsh environments) Test
.Support 1080P 30HZ / 1080I / 720P; suitable for HD-SDI monitoring system and the broadcasting system.
Full surface mount technology
.Industrial design, high reliability
.Support customization and OEM
• 10-digit coding and non-compression video transmission
• Automatically reply for overloading protection
• Status indicationg
• Surface mounted technology
• Advanced auto-adaptive technology avoiding pn-site electric or optical adjustment
• LED status indicating the operation of the surveillance
•Automatically compatible with PAL, NTSC and SECAM video format

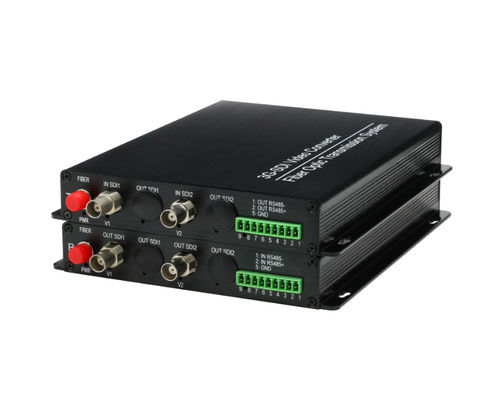

2 Channels HD SDI to Fiber Optic Converter with Embedded with audio + 1 Ch Reverse RS485 Data Hd-sdi Video Transmitter









Specifications





Parameter of hd-sdi media converter

SDI Video Interface 1 Channel HD-SDI Video Input
Connector 1 BNC Connector
Signal Type HD-SDI,SDI Digital Video Signal
Support Agreement SMPTE259-M-C, SMPTE 292M, SMPTE424M,
ITU-R BT. 601, ITU-R BT.1120
Gain Entity
Resolution 8 or 10bits, Automatic
Rate 270Mbps, 1.485Gbps, 2.970Gbps
Automatic Data Rate Lock Yes
The nominal level 0.8Vp-p
Minimum / maximum level 0.5V-1Vp-p No offset
Resistance 75ohms
Return Loss ≥15Db 5MHz-1.5GHz
≥10dB 1.5GHz-3GHz
DC offset (maximum allowable) 5V
Input coupling AC
Input cable equalization Automatic reach of fiber loss -30dB













Shipping and packing:



  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.









Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China


Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03









FAQ


Q:Are you a factory or trading company?

We are a factory



Q:What’s the most valuable and important parts for fiber optical converter ?

Chipset, fiber transceiver and power adaptor



Q1:How can i get your catalogue and price list?

A1:Please let us know your email or contact us from website directly for our catalogue and price list;



Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods .



Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.



Q4: Can I visit you?

A4: Sure, our factory is in ShenZhen, China.Please contact us to make an appointment.



Q5: What if there is quality problem when we get the goods?

A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you ,Furthermore we will also take action to improve the quality in future.
