1 x uncompressed forward HDMI fiber video converter

China 1 x uncompressed forward HDMI fiber video converter supplier
1 x uncompressed forward HDMI fiber video converter supplier 1 x uncompressed forward HDMI fiber video converter supplier 1 x uncompressed forward HDMI fiber video converter supplier 1 x uncompressed forward HDMI fiber video converter supplier

Large Image :  1 x uncompressed forward HDMI fiber video converter

Product Details:

Place of Origin: China
Brand Name: Ho-link
Certification: CE FCC ROHS
Model Number: HL-HDMI-1V1A1D-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: neutral packing
Supply Ability: 500 pairs per month
Contact Now
Detailed Product Description
Wavelength: 1310/1550nm Product Name: Video Digital Optical Converter
Transmission Distance: 20km Warranty: 3 Years
Fiber Type: Single Mode Single Fiber Input/output Impedance: BNC 75Ω (unbalance)
Operating Temperature: 0℃ To +70℃ Power: DC 5V2A
Color: Black Video Interface: BNC

Product Description

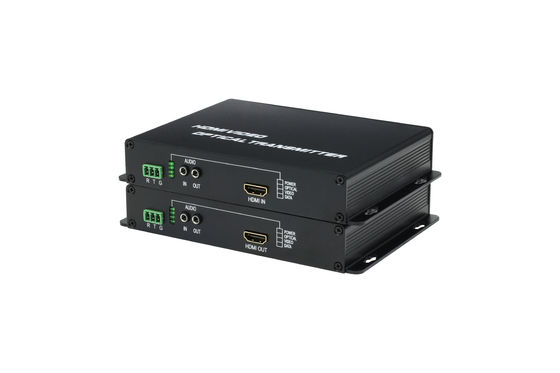

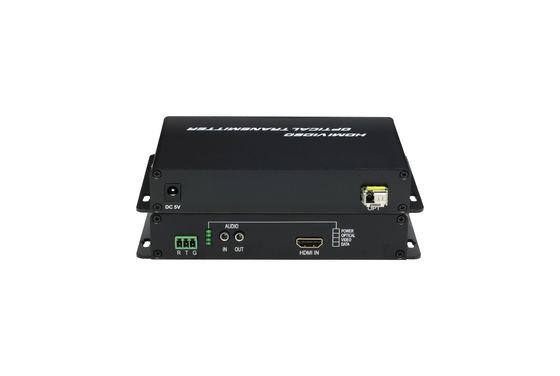

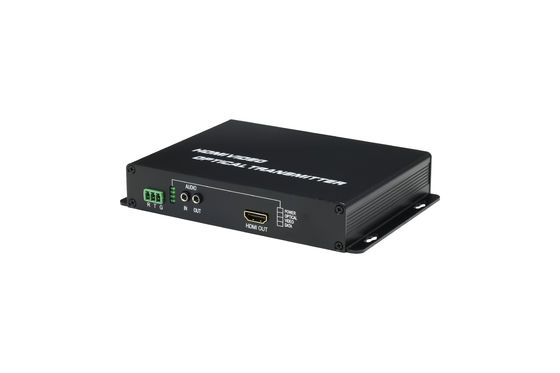

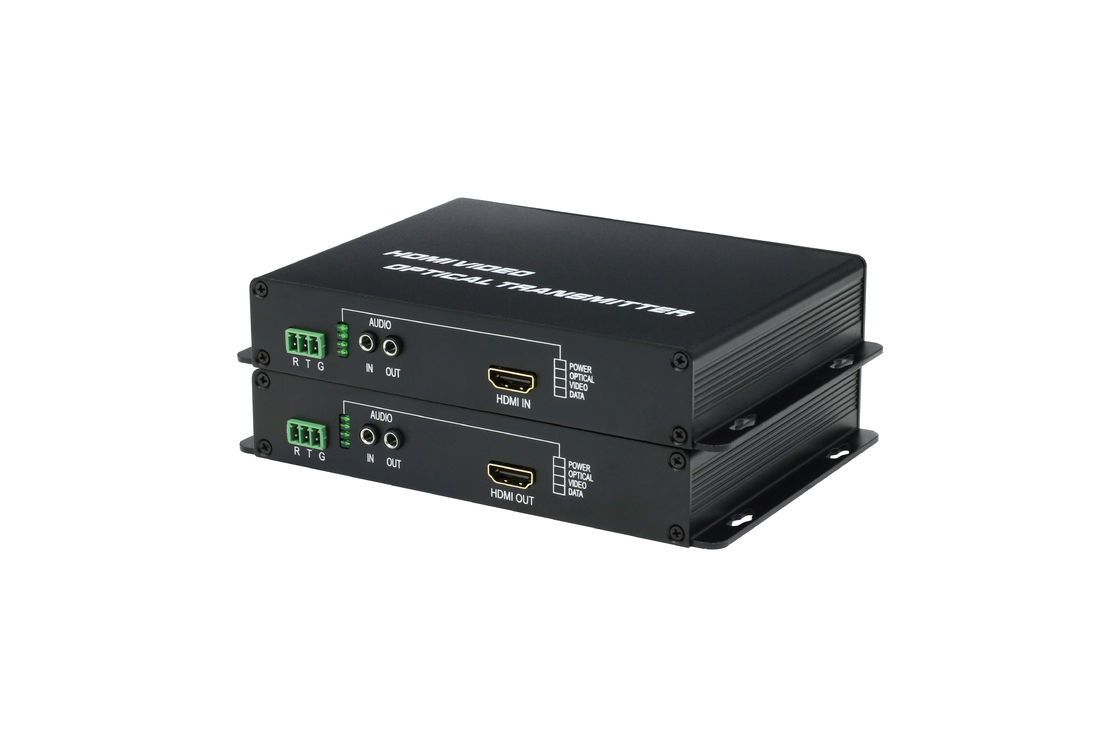

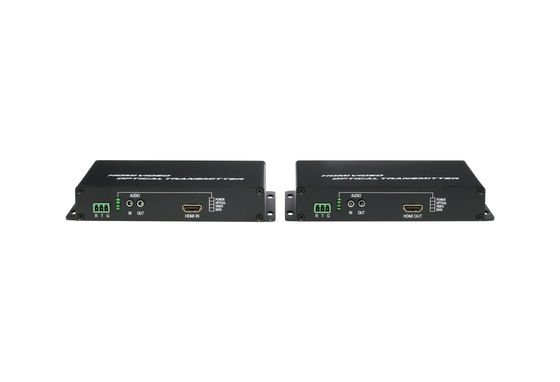

1 x uncompressed forward HDMI fiber video converter

HDMI fiber video conver ter is HD uncompressed video converter that HO-LINK solves HDMI AV,data,long distances transmission problems.Adopt the most advanced video processing technology on the market, HD video signals, analog audio signals, and control signals are converted into fiber signals, to achieve long - distance transmission without compression or delay. In the meantime,it has the advantages of low attenuation,band-width,strong anti-jamming ability,high safety performance,small volume,light weight ,and so on.So it has incomparable advantages in long-distance transmission and special environment.Moreover, it also uses HDMI interface,only one HDMI cable can connect to HDTV, you can enjoy the clear and delicate picture of 1080P, and up to 192K sampling rate,8 channel high-fidelity cinema audio.The application of HDMI equipment in multimedia system not only saves the construction costs and the complexity of wire running,but also ensures the possibility of high quality standards.

HDMI converter is mainly used for LED large screen and multimedia information publishing system.It is widely used in airports,toll station monitoring center,shopping malls,government,hospitals,and broadcast.

1 x uncompressed forward HDMI fiber video converter

Product Features

Support audio de-embedding Standalone bidirectional analog audio Support EDID automatic reading

Compatible with HDMI1.3 standard protocol Pluggable SFP optical module, LC connector

Automatically identify and configure various display modes Built-in automatic equalization, clear and stable picture Support full HD, 1920*1200@60HZ

Full digital, uncompressed HDMI HD fiber transmission Built-in ESD protection circuit to prevent static damage On-site installation: plug and play, free of setting

Technical parameters
Parameters
Signal standard
XUGA/SXGA/XGA/SVGA
Signal interface
HDMI
Bandwidth
300MHZ
Output input level
1VP-P
Support digital bit width
10Bit
Transmission distance
20KM/40KM/60KM
Support resolution
1920*1200@60HZ;1920*1080@60HZ/50HZ;1920*1080@30HZ/25HZ;1600*1200@60HZ;1280*1024@60HZ;1280*720@60HZ;800*600@60HZ;640*480@60HZ
Fiber parameters
LC connector,1310nm/1550nm,single mode/multi mode(Optional)
Audio parameters
3.5mm interface, analog audio, support 44.1K, 48K, 96K, 176K, 192K, bit error
rate<10 -9
Power
Adapter
5V power adapter
Power consumption
Less than 5W
Temperature
Operating temperature
-20 ° C to +70 ° C
Storage temperature
-40 ° C to +85 ° C
Humidity
Storage humidity
0 to 95%RH
Physical
Size
167*115*28.3mm
Weight
0.7kg/pair(With power supply and outer packaging 1.3kg / pair)
