Home ProductsHD SDI Video to Fiber Converter

2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack

China 2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack supplier
2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack supplier 2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack supplier 2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack supplier 2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack supplier

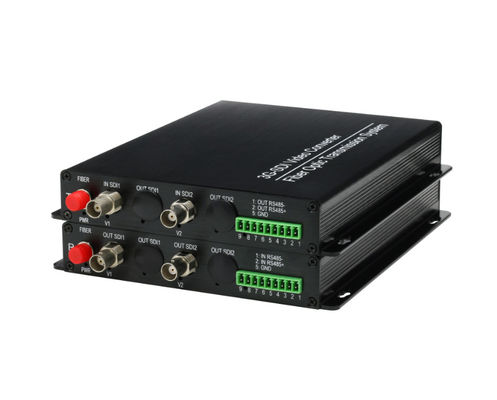

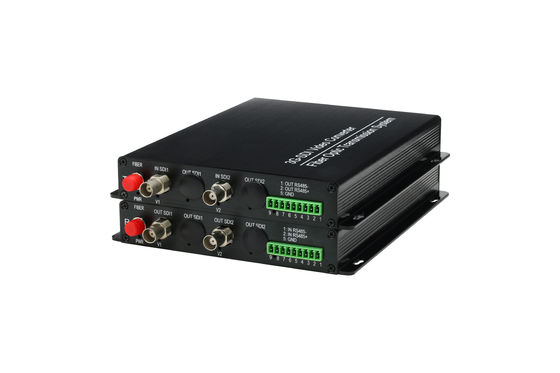

Large Image :  2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-2V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pairs
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000Pairs/Month
Contact Now
Detailed Product Description
Product Name: HD-SDI Video To Fiber Converter Color: Black
Warranty: 3 Years Wave Length: 1310nm/1550nm
Fiber Connecter Type: FC Transmission Distance: Standard 10km
Video Interface: BNC Port Transmission Distance: 20Km
Power Voltage:: AC85-260v/50Hz Video Bandwidth: 10MHz

2Ch HD-SDI video converter+1Ch outside forward bidirectional Stereo Audio 3.5mm Jack with 1 Ch RS485


Overview:



    HO-link LNK-SDI Series SDI Video Digital Optical Converter is used in the television industry for highly reliable, high-performance serial digital optical transmission equipment, systems support SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, as well as DVB-ASI (EN50083-9), such as digital TV format standards to meet industry level product requirements.

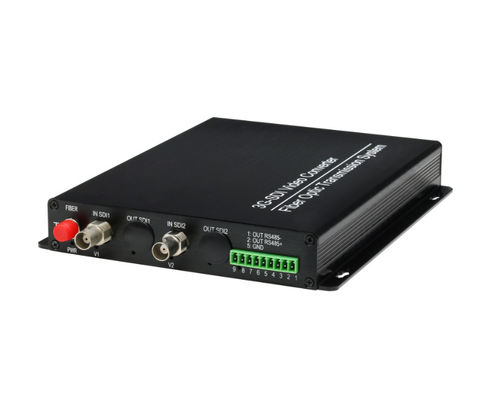

2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack


Features:


  • Transmission 1 channel ASI / TS streaming digital television signals over a single fiber.
  • Supports SMPTE 259M and SMPTE 344M.
  • Supports data rates in the range of 143, 177, 270, 360, 540 Mbps and 270 Mbps DVB-ASI.
  • Automatic input equalization coaxial maximum 350m @ 270Mbps
  • The power and other parameters can monitor the system status indication LED Hot-swappable
  • Support 4U chassis, 1U chassis and independent structure et signal (shared 100M bandwidth, support port VLAN)






Technical Indexes



Transmission distance 0~20km(optional 40km,60km)
Wave length 1310nm/1550nm
Fiber connecter type FC
Transmission power -10~-3dbm
Fiber count 1
Receive sensitivity >-34dbm
Compatible standard SMPTE292M, SMPTE259M
Rate 270Mbps ~ 2.97Gbps
Video interface BNC SD/HD/3G-SDI
Signal interface 2*RS485
inputoutput level 800mVp-p±10%
Input/out put impedance 75Ω
Digtal video 48KHz
AES digtal video CH 8
AES digtal video CH 0℃~40℃/32℉~104℉
Operatation Temperature -20℃~60℃/-4℉~140℉
Shortage Temperature 5~24VDC
Dimension 177×150×30mm
Weight 450g
































Application


  • Animal films recording;
  • Live events broadcast over fiber
  • High performance(error-free) surveilance networks in Army or security;
  • Large video wall system
  • Intelligent Traffic Monitoring System
  • Security systems
  • School networking
  • Industrial monitoring (Electricity,Chemistry,Steel,Oil,Railway & etc)
  • Military Monitoring (Warehouse,Border,Guards,etc)
  • Stadium (For LIVE HD video,audio transmission)




Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03


Our professional sales team and technology support team will answer all your questions and make sure our products meet your requirements. Also we offer long time after-service.





Company Profile


   Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

   Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.

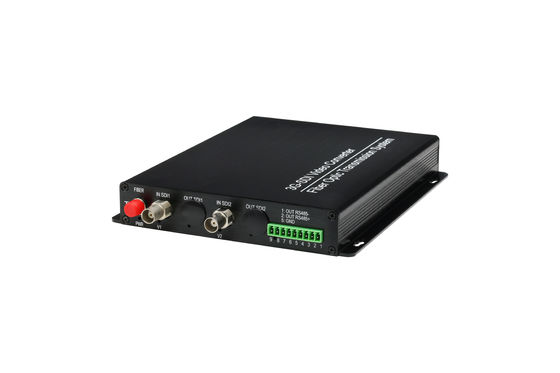

2 Ch HD SDI to Fiber Optical Converter with 1 Channel Outside Forward Bidirectional Stereo Audio 3.5mm Jack




FAQ

Q:Are you a factory or trading company?
We are a factory
Q:Where is your factory located? How can I visit there?
Our factory is located in Shenzhen City, Guangdong Province, China, about 1 hours train from Hongkong. All our clients, from home or abroad, are warmly welcome to visit us!
Q:What’s the most valuable and important parts for fiber optical converter ?
Chipset, fiber transceiver and power adaptor
Q:How does Ho-link make the quality control of media converter/SFP transceiver/video converter ?
Every product must be tested as above process before leaving factory.
Q:How about the Ho-link product price ?
Ho-link can not make sure our price is the lowest in the market, but we can make sure our price is the most competitive based on the same quality.
Q:What’s MOQ for OEM ?
Generally speaking, MOQ should be 500 pcs each item for OEM service; if you are the new customers, 500pcs may be the problem for the trial orders, you can discuss the detailed MOQ which you can accept with the Ho-link sales. Ho-link have never made the MOQ as the obstacle between our cooperation
Q: How long can you prepare the samples?
Samples can be prepared within 3 days after receiving the payment.
Q: What's the trading term and payment method?
The trading term we prefer is EXW, if you require different term, contact to discuss it. And the payment method we prefer is T/T, but we can still accept the payment via paypal and western union.
Q: What's the guarantee for the product?
We provide 36 months guarantee of repairing.
Q :Do you ship internationally?
Yes. We can ship anywhere you would like. we can ship it via our delivery forwarder or on your shipping account number, to ensure you are getting the best rates, which allows you to handle the export/import taxes.
Q: I placed an order, who do i call to get tracking information?
Our sales staff that you placed your order with, he/she will provide you with tracking information by email.
Q: Why choose Ho-link?
1) Prompt delivery and remarkable services.
2) Competitive selling prices
3) Rich experience of OEM&ODM co-operation.
4)100% new materials for production and 100% reliable quality If you have some question about our products, can contact us by ali trademanager or email. We will get back to you within 24 hours.
