|Limited Warranty:||3 Years||External Power Supply:||DC5V 1A|
|AC Power Adapter:||US Standard, UK Standard||Vertical Frequency Range:||50/60Hz|
|Resolution:||1920X1080P||Fiber Type:||Single Mode|
|Support Agreement:||HDMI1.3; HDCP1.2|

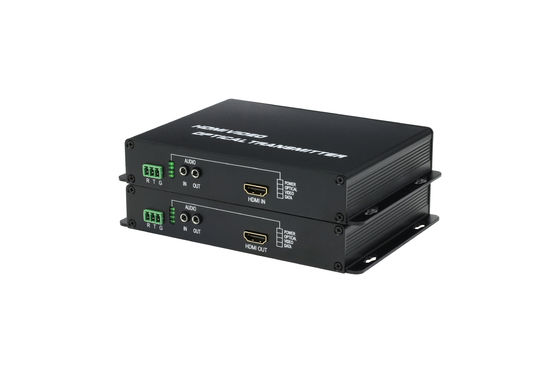

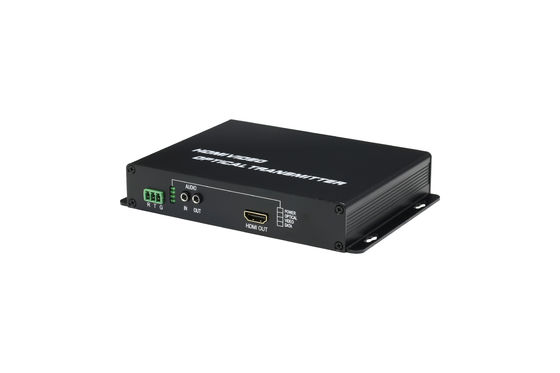

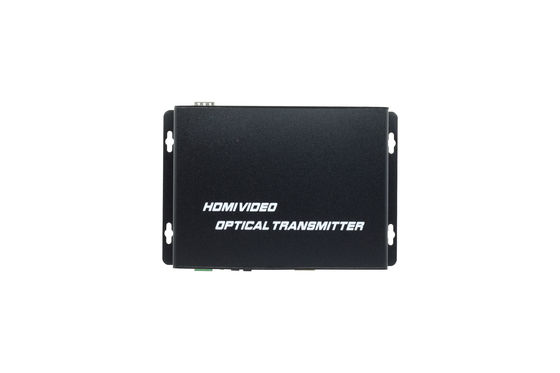

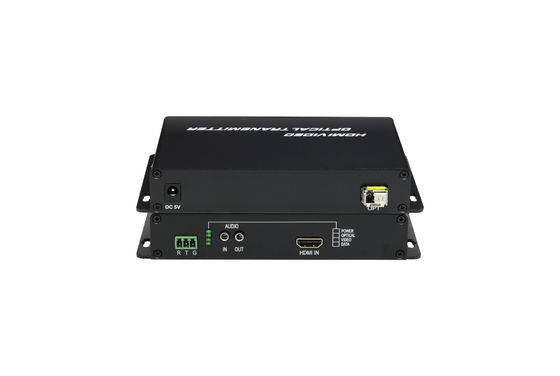

This uncompressed Optical Transmitter use high-speed FPGA technology, Converted HDMI (up to 1920 X 1080@60Hz) into 3G optical signal. Maximum distance up to 20 km. For home theater, security monitoring, hospitals, prisons, banks and other applications.
1,Full digital, Uncompressed HD optical fiber transmission
3,With an Independent analog audio
4,Automatic identification and reconfigure display mode
5,video formats up to 1080p up to 1920 X 1080P60Hz
6,Support single mode,multi mode optical transmission
7,Easily to installation, plug and play, no need to set up
Part 2 Standard Package

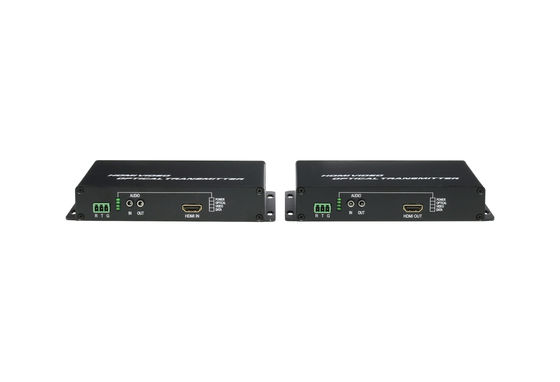

HDMI transmitter 1 pcs
HDMI receiver 1 pcs 5V/2A 2 pcs
User Guide 1 pcs
|Input Video Signal||0.5-1.0 volts p-p|
|Input DDC Signal||5 volts p-p (TTL)|
|Input connection||HDMI A female(19pin)|
|Output connection||VGA, R/L Audio|
|HDMI video input format||480i/576i/480p/576p/720p/1080i/1080P|
|VGA video output format||480i/576i/480p/576p/720p/1080i/1080P|
|Audio output format||2 channel LPCM|
|Vertical Frequency Range||50/60Hz|
|Input video Amplifier Bandwidth||1.65Gbps/165MHz|
|Limited Warranty||3 Year Parts and Labor|
|Operating Temperature||0 to +70℃|
|Operating Humidity||10% to 85 % RH (no condensation)|
|Storage Temperature||-10 to +80℃|
|Storage Humidity||5% to 95 % RH (no condensation)|
|External Power Supply||DC 5V 1A|
|AC Power Adapter||US standard, UK standard and so on|
|User Manual||English Version|
Product connection diagram
System connection diagram:
