1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter

China 1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter supplier
1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter supplier 1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter supplier 1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter supplier 1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter supplier 1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter supplier

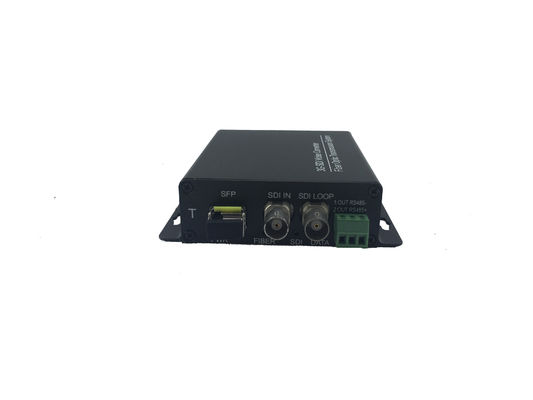

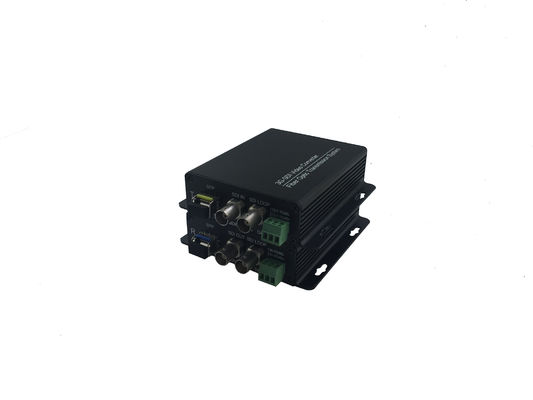

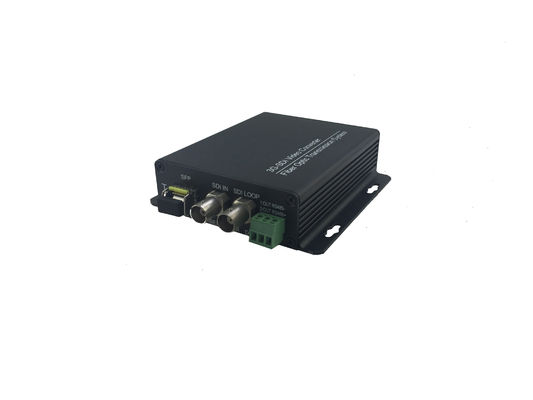

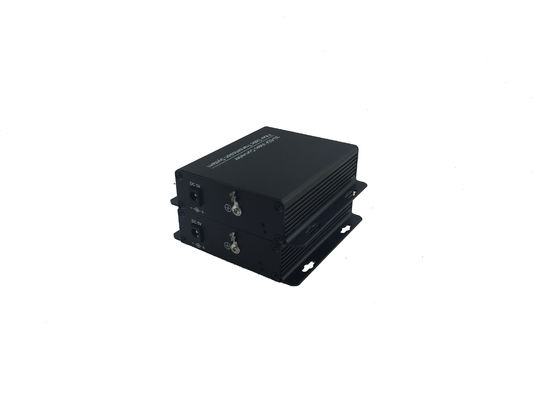

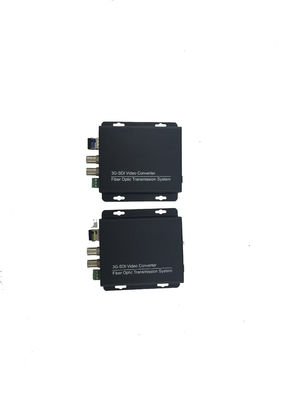

Large Image :  1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pairs
Price: Negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Channel Quantity: 1 Channel Physical Interface: BNC Port
Data Format: RS-485/422,RS232 Optical Interface: FC SC ST
Power Supply: DC 5V1A Operating Temperature: -40°C ~+85°C
Transmition Distance: 0~500M (MM) / 0~120KM (SM) Case Material: Aluminum
Operating Humidity: 0 ~ 95% (non-condensing)

3G SDI Video Converter 1 ch duplex data with exterfiber transmitter and receiver



1080P/60Hz 1 Channel SDI Converter+RS485 to fiber Optical Extender/3g-SDI Video to fiber Transmitter



Overview





     3G-SDI digital optical terminal machine can be a way of SDI by high precision PCR after correction for modulation into a FMTS optical signal through the optical fiber transmission to the remote. The HL-3GSDI-1V1D-T/RF receiver can be transmitted by optical fiber to a high-speed FMTS code streamer signal, by high precision PCR after correction, according to the ASI output stream interface.HL-3GSDI-1V1D-T/RFdigital optical transceiver as independent or rack. A set consists of a transmitter and a receiver, can easily achieve the signal to each other and relay transmission.



     In particular the digitized manages program or wonderful program remote regions in the world. Support optical path through the distribution of star type link point to point emission receiving, also can realize the tree type link bus branch multidrop receiving. Digital transmission with high quality image transmission request, can achieve the broadcast transmission quality. The real-time transmission, without delay. Mainly used in the TV news program between transmission, radio and television studio and transmitter between transmission, satellite ground station and the center of radio and television transmission between, live broadcast.











Features





  • 1, Digital Video Optical Transmission transmit signals of 1~4 channel video.

    2, One-way or two-way audio/ data and switching capacity through an optical fiber.

    3, Adopt the full digital video non-compressed transmission technology.

    4,Video quality can achieve broadcast standards and Audio quality can achieve CD level.

    5, Adopt independent type or frame structure to install.

    6, Completely suitable for all kinds of harsh working conditions environment.

    7, 100% burn-in test before delivery.

    8, RoHs compliance.

















Specifications









Video Interface

Characteristics



Channel Quantity(Transmitter) 1 channel
Input Level(transmitter) >380mVp-p
Input Reflection Loss (transmitter) >15dB
Input Impedance (transmitter ) 75 Ω(unbalanced)
Physical Interface(transmitter ) BNC port
Output Channel Quantity ( receiver ) 2 channels
Output Level (receiver) 800mVp-p ± 10%
Rising or Decline Time (receiver ) <0.8ns
Maximum Jitter(Receiver) <0.2UI
Output Impedance (receiver) 75 Ω(unbalanced)
Physical Interface(Receiver) BNC
Transmitter/Receiver Signal Formats

SMPTE292 SMPTE-259M,SMPTE-305M,

SMPTE-310M,SMPTE 424M,

DVB-ASI serial digital video signal

Transmitter/Receiver

Signal Speed Rate

270Mbit/s - 1.48Gbit/s - 3Gbit/s SD





Data Interface

Characteristics



Input/Output Port Quantity 1-ch(can be customized)
Physical Interface Industrial terminals
Baud Rate 0~500Kbps
Error Rate Less than -1000000000
Working Mode Full Duplex
Data Formats RS485/RS422/Huffman code



Audio Interface

Characteristics



Input/Output Port Quantity 1-ch(can be customized)
Physical Interface Industrial terminals
Input/Output Level 0dB(Typical )
Input/Output Impedance 75 Ω(balanced/unbalanced )
Input/Output Voltage 2Vp-p(peak value)
Audio Bandwidth 20HZ~20kHZ
Sampling Speed Rate 58.6K
Non-Linear distortion coefficient <=1%
Audio SNR

S/N>=85dB



















Connection Diagram:

1x4 3G-SDI Splitter - Video Splitter - 4 x 3G-SDI



















Shipping and packing:





1.All goods are packaged strictly .
2.DHL , UPS , TNT , FeDex , EMS are used according to customers requirement . Goods could be shipped to all countries in time .
3.Samples could be shipped in 3-5 workdays .





Quality: will be tested again and again before shipment;

Price: try our best to support you according to your markets;

Package: strong package to protect the goods during transportation;

Delivery time: will complete the production on time accoring to your order;

After service: will actively resolve any question or any doubt you meet during usage
