|Fiber Connector:||SC Duplex Connector||Single Mode:||20/40/80 Km|
|Fiber Number:||Single Fiber Or Dual Fibers||Brand:||Ho-link|
|Limited Warranty:||3 Years||Data Format:||RS-232/422/485|
|Product Name:||Uncompressed HD Video Optical Transmitter And Receiver||Color:||Black|
|Application:||Telecommunication And Security Field||Certification:||CE RoHS FCC|

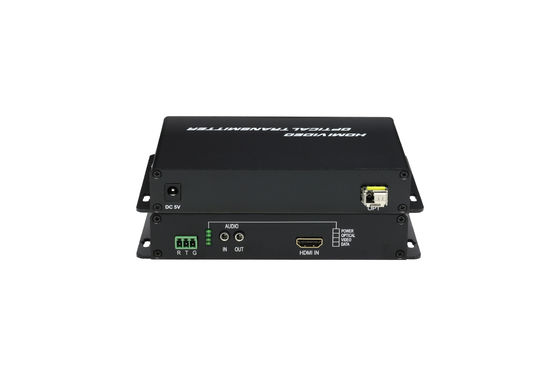

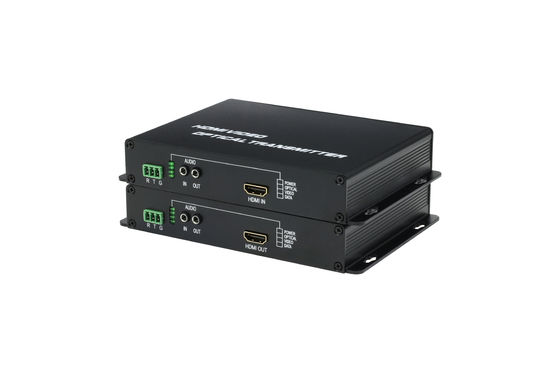

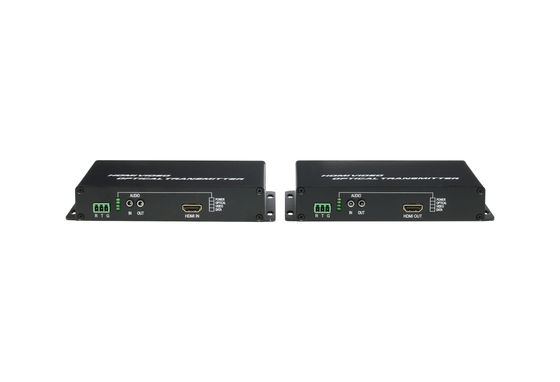

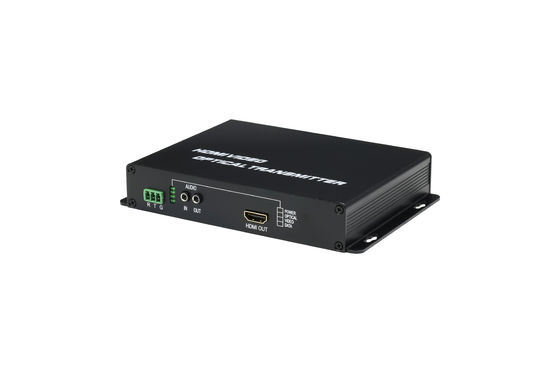

The device includes a sender and a receiver, which can transmit HDMI video and Audio signal of PC to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
The product support HD HDMI video signal transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20KM(SM fiber cable).
The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
1) Full digital, uncompressed, high-definition fiber optic transmission
2) 1ch unidirectional HDMI/DVI video signal, 2ch bidirectional audio signal, 1ch bidirectional data transmission
3) HDMI1.3 standard, supports resolution up to 1920*1080P60
4) Extension distance 2KM(MM)/20KM(SM)
5) Function of alarm for remote device power failure, easy for maintenance
6) Standalone and rack-mounted types, with rack-mount type supporting hot spare for power supply, and hot swap for boards
7) Pure hardware design, no need software driver, plug and play
8) Support HDMI, Audio interface
|Operating Temperature Range||-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )|
|Storage Temperature Range||-10 to +70 Degree Celsius ( +14 to +158 Degree Fahrenheit )|
|Operating Humidity Range||10 to 90% RH ( No Condensation )|
|Storage Humidity Range||5 to 90% RH ( No Condensation )|
|Fiber Module||1310nm Single mode Transmitter and Receiver|
|Fiber Connector||SC Duplex Connector|
|Transmission Distance||1080p 36bit @60Hz 20km ( Maximum )|
|Power Consumption||TX: 8 watts ( Maximum )|
|IR wavelength & frequency||Wavelength: 940nm, frequency: 38KHz|
|Net Weight||Transmitter: 410g Receiver:410g|
|LED Indicators||Power, Link/Act and Speed|
Product connection diagram
System connection diagram:
