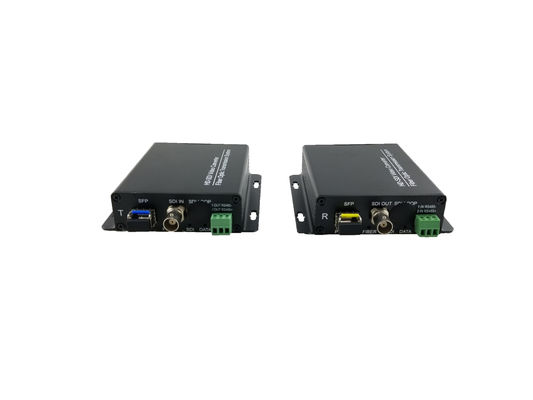

1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data

China 1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data supplier
1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data supplier 1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data supplier 1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data supplier 1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data supplier

Large Image :  1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pairs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Support Definition: 1080P@30Hz
Operating Temperature: -40~85℃ Comply Standard: SMPTE-292M HD-SDI And SMPTE-259M SD-SDI
Data Rate: 2.97Gb/s,1.485Gb/s And 270Mb/s Fiber Type: SM Or MM
Fiber Connector: FC Default,SC Selectable Material: Aluminum Alloy
Transmission Distance: 0~100km,20km Default Key Words: Hd-sdi Video Transmitter

HD Video Audio Transmission 1080p video transmitter HD-SDI fiber optic converter RS485 singlemode up to 20/40/80km





Production:



      It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.





      The SDI over fiber converter adopts the latest video process technology, which support long distance and high quality transmission of 1 channel video and 1 channel reverse RS485 data signal at real time. And signal format ranges 19.4Mbps~ 2.97Gbps, support SMPTE292, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M etc.

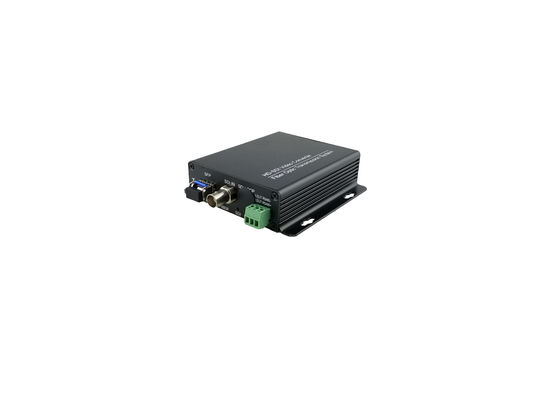

1Ch 1080P Hd-sdi fiber optical video transmitter and receiver with SDI loopout and 1Ch Reverse RS485 Data

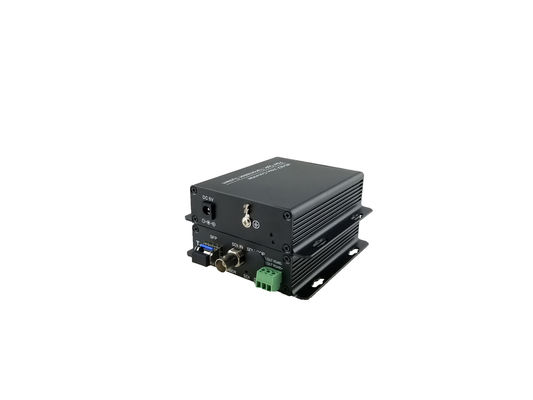

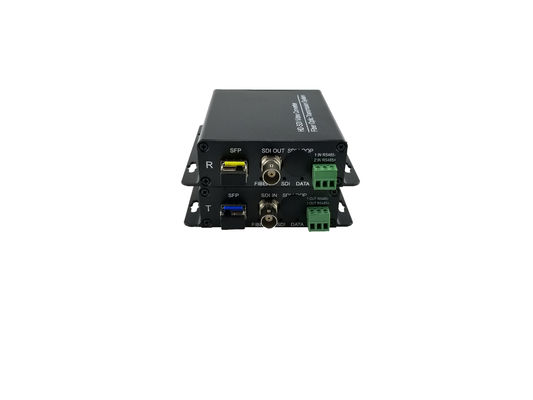

Front drawing:



SDI fiber media converter RS485







Function and Feature:



1,  Support 1 channel video and 1 channel RS485 data transmission



2,  Distance up to 20KM over SM fiber cable



3,  Available for 19.4Mb/s~2.97Gb/s



4,  100m Automatic cable equalization, suitable for the all rates bellow 2.97Gb/s



5,  Support video intact regenerative relay



6,  LED indicator to monitor all critical parameters



7,  No software needed, support plug and play



8,  with anti-surge and anti-electrostatic protection function







Features





Parameter Description
Video connector BNC
The interface bandwidth 1.4835Gbps,1.485Gbps,2.97Gbps
impedance 75Ω
Resolution

1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz;

1280*720P@50Hz; 525i; 625i

RS485 connector Industrial terminals
Baud rate Self-adaptive, Max:115200bps
Optical fiber Self-adaptive, Max:115200bps LC/SC
type Single-mode
Wavelength Single-mode 1310nm
bandwidth 2.97Gbps/1.25Gbps
Transmission distance Single-mode:3/20/40/80km
Other Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Temperature -5 ~ +70
Humidity 5% ~ 90%
Size 120mmX97.5mmX25.2mm
Warranty 3 year




Product Model HDSDI
Transmission distance 0~20km(Optional 40km/60km)
Wavelength 1310nm/1550nm
Optical fiber connector type SC/PC
Transmit power -10~-3dbm
Fiber Count 1core
Receiver sensitivity Better than-34dbm
Compatible with standard Support SMPTE292M, SMPTE259M standard
Rate Working at 270Mbps ~ 1.5Gbps
Video Interface 1 BNC
Data Interface 1 RS485 industrial terminal
The nominal input and output level 800mVp-p±10%
The nominal input and output impedance 75Ω
Sampling frequency 32K/48KHz
The nominal input and output level Unbalanced 2V p-p
Operating temperature 0 to 40 Degree Celsius / 32 to104 Degree Fahrenheit
Storage Temperature -20 to 60 Degree Celsius /-4 to 140 Degree Fahrenheit
Relative Humidity 20~90%RH ( No condensation )
Power requirements 5~24VDC









Connection Diagram

Attention: Insert/Extract cables gently.





Packaging & Shipping

PACKING CONTENTS

1) Main Unit. SDI Over Fiber Optic Extender

2) Manual

3) Power Adapter
