|PC Highest Resolution:||1920×1200@60Hz||Optical Interface:||LC|
|Transmission Wavelength:||1310nm /1550nm||Storage Temperature:||-40-80℃|
|Power Consumption:||5W||Warranty:||3 Years|
Real-time ,unpressed HDMI optical fiber audio/ video extender (LC), 20KM multimode transceiver,1080P 60HZ,
HDMI without compression optical transceiver is a set of extender device of high-definition video transmission which use fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it support audio transmission and RS232 transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

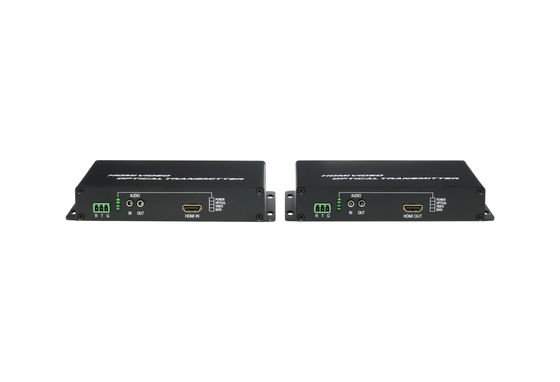

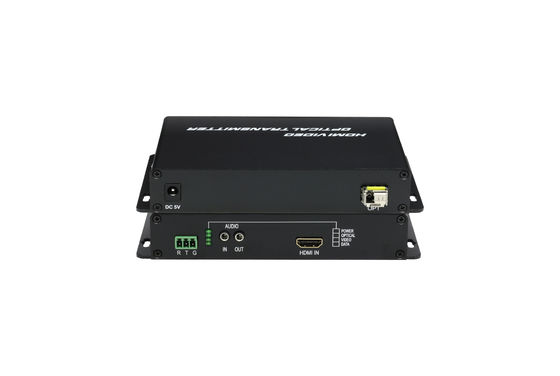

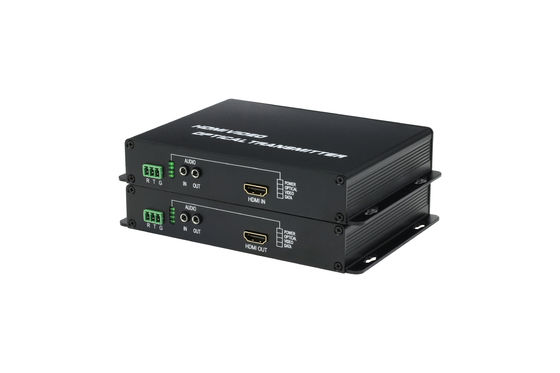

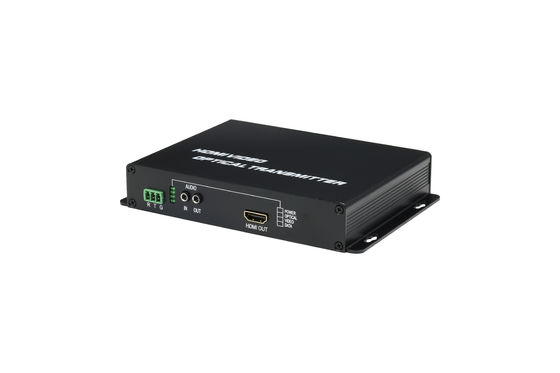

The product is composed of sender(marked with Sender)and receiver (marked with receiver),Can extended the HDMI, USB keyboard mouse signal to the remote through the single core optical fiber. Using high speed FPGA techniques convert the HDMI signal to 3G fiber signal transmission. Maximum resolution can reach 1920*1200@60Hz,maximum transmission distance up to 20 km, widely used in the field of security monitoring , multimedia information distribution, government, medical system, commercial display, multimedia function hall, utilities and so on.
l Compatible HDCP..
l Provides high-resolution image quality.
l Plug-and-play operation - no programming or setup required.
l Extends 1080p HDMI signals up to 20km over a optic cable.
l Optical fiber use rules out any RF interference.
l Ethernet Pass-Through
l All-digital, uncompressed high definition optical fiber transmission technology
l SFP optical module
l Support single-mode/multimode optical fiber transmission
l Support read EDID
|Function||Number of input signal||1CH(HDMI,USB)|
|Number of output signal||1CH HDMI,2CH USB|
|Transmission distance||500M(multi mode)/10KM(single mode)|
|Video interface and performance||Video input interface||Sender:HDMI|
|Video output interface||Receiver:HDMI|
|USB||Protocol||Only support USB wired/wireless keyboard&mouse|
|Optical||The optical input and output interface||single/multi mode LC|
|Power supply||Adaptable voltage||DC5V/2A|
|Operating environment||Storage temperature||-40-80℃|
|Humidity||0-95% (No condensation)|
Packing and shipping:
1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
3 by DHL TNT UPS EMS etc.
1 HDMI transmitter 1pcs
2 HDMI receiver 1pcs
3 Power Supply Unit 12V/1A 2pcs
4 User Guide 1 pcs
1. OEM Manufacturing welcome: Product, Package...
2. Sample order MOQ:1 pcs is ok to assess quality first
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
5.Our Delivery Terms is upon your choose
