|DC Offset (maximum Allowable):||5V||Transmission Distance:||20km-100km|
|Resolution:||8 Or 10bits, Automatic||Data Connector:||RS-485/422,RS232|
|Optical Interface:||FC SC ST||Interface:||2 Channel HD-SDI Video Input|

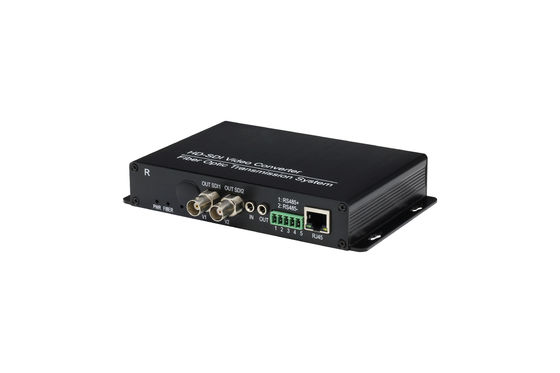

2Ch Forward HD SDI video embedded with audio + 1Ch Return RS485

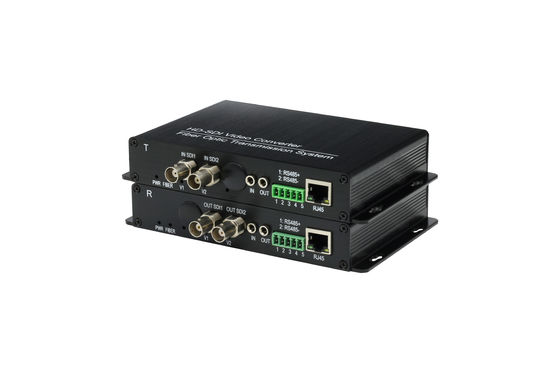

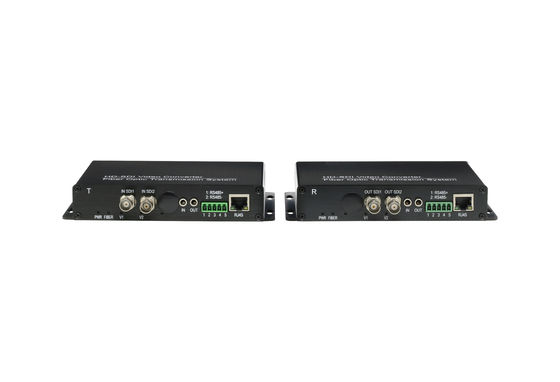

The SD/HD-SDI transmitter and reveiver is the low cost transfer device for one way SD/HD-SDI video by single mode and multimode optical fiber cable transfer. SD/HD-SDI transmitter and reveicer is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal(optional one way reverse 485 control signal) on one single mode optical fiber. Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of tramsmitter and receiver: Transmitter convert SDI signal to optical signal; Receiver convert optical signal to SDI signal and output.
•.Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive
Parameter of hd-sdi media converter
|SDI Video||Interface||1 Channel HD-SDI Video Input|
|Connector||1 BNC Connector|
|Signal Type||HD-SDI,SDI Digital Video Signal|
|Support Agreement||SMPTE259-M-C, SMPTE 292M, SMPTE424M,|
|ITU-R BT. 601, ITU-R BT.1120|
|Resolution||8 or 10bits, Automatic|
|Rate||270Mbps, 1.485Gbps, 2.970Gbps|
|Automatic Data Rate Lock||Yes|
|The nominal level||0.8Vp-p|
|Minimum / maximum level||0.5V-1Vp-p No offset|
|Return Loss||≥15Db 5MHz-1.5GHz|
|DC offset (maximum allowable)||5V|
|Input cable equalization||Automatic reach of fiber loss -30dB|
Shipping and packing:
Q:Are you a factory or trading company?
We are a factory
Q:What’s the most valuable and important parts for fiber optical converter ?
Chipset, fiber transceiver and power adaptor
Q1:How can i get your catalogue and price list?
A1:Please let us know your email or contact us from website directly for our catalogue and price list;
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods .
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q4: Can I visit you?
A4: Sure, our factory is in ShenZhen, China.Please contact us to make an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you ,Furthermore we will also take action to improve the quality in future.
