4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km

China 4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km supplier
4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km supplier 4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km supplier 4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km supplier 4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km supplier

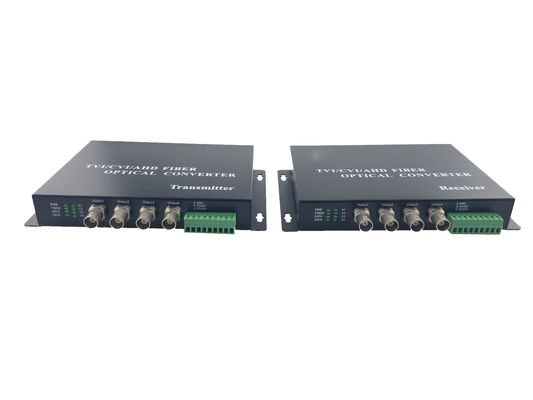

Large Image :  4ch Noncompression Digital Video Ethernet RS232 To Fiber Optic Converter 80km

Product Details:

Place of Origin: China(mainland)
Brand Name: holink
Certification: CE FCC RoHS
Model Number: H-CVI/TVI/AHD-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Warranty: 3 Years Bandwidth: 5-8MHz
Impedance: BNC 75Ω Environmental. Mechanical Input Rating Voltage: AC220V
Wavelength: 1310nm/1550nm Operating Voltage: DC5V1A

4ch noncompression digital video Ethernet RS232 to fiber optic converter 80km for NTSC/PAL/ SECAM CCTV camera system





Overview:



   It is to transmit 2 line positive digital video broadcasting, to one fiber efficiently. With the complete digital and technology, H-CVI/TVI/AHD-4V-T/RF support any high resolution dynamic or stationary picture high-fidelity transmit. It also can be anti-disturbance against several signals, environment, and work stably. It is widely used in security monitoring and control, high way, electronic police, automation, intelligent residential districts and so on.



     Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status .Devices are availavle for either stand aloe or rack mount installation,which is suitable for different working environment.







Feature:



1. 8-bit digitally encoded and non-compression video transmission

2. Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support
RS-232, RS- 422, and RS-485 data protocols

3.Support any high-resolution video signal

4. Automatic compatible PAL, NTSC and SECAM video system

5. all digital,unpressed

6.Support OEM.







Application:



1. Intelligent Transportation System

2. Connection of Sub-network for Surveillance Center

3. Public Security Surveillance

4..High Way & Toll Station Surveillance

5.3 ndustrial Closed Circuit Television Surveillance





Specification



Fiber Optic Fiber Type

Single mode (9/125um) 20Km,

multimode ( 62.5/125um) 550m

Wavelength 1310nm/1550nm
Transmission Power -18
Receiving sensitivity -35
Interface FC standard, ST/SC optional
Video Channel Quantity 1
Compatible Systems NTSC/PAL/SECAM
Impedance/Voltage BNC 75Ω (unbalanced) / 2.0Vp-p
Bandwidth 5-8MHz
Differential gain <1% (typical)
Differential phase <0.6°
SNR ≥68dB
Interface BNC

Audio



Channel Quantity 1
Bandwidth 20Hz~20KHz
Frequency 96KHz
Digitization 24bit
Input impedance(Line-in) 47KΩ/unbalance
Output impedance(Line-out) 10KΩ unbalance
Input/Output Voltage 2Vp-p
Unbalance SNR 80dB(Typical value)
  Total wave distortion 0.1%(Typical value)
Electrical. Environmental. Mechanical Input rating voltage External power supply AC220V/50Hz
Operating voltage DC 5V/1A
Power Consumption ≤5W
Working temperature -10 ℃ ~ +75 ℃
Storage temperature -40 ℃ ~ +85 ℃
Relative humidity 0~95%
Emission/Safety FCCPart15, ClassA, RoHS and CE Mark
Warranty 3 years
Packing list User manual,Warranty card, , Power adapter, Device.
