Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio

China Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio supplier
Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio supplier Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio supplier Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio supplier Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio supplier

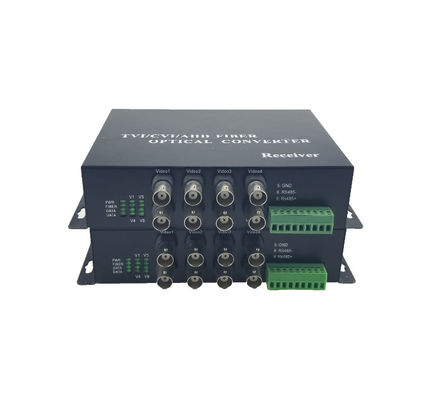

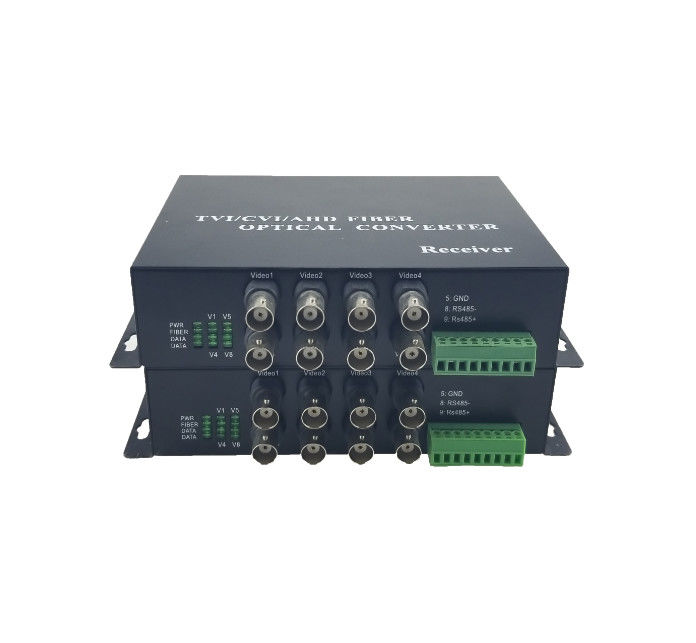

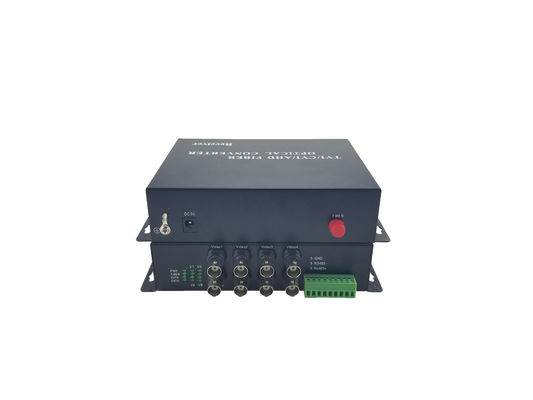

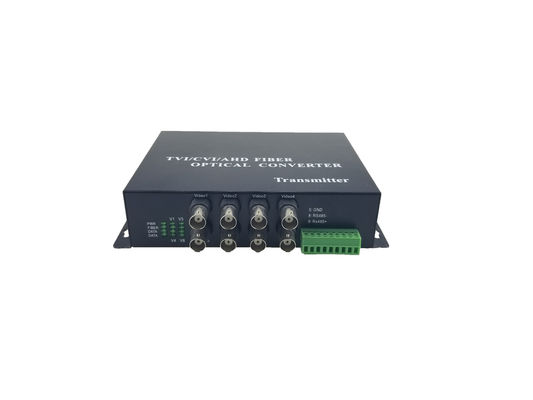

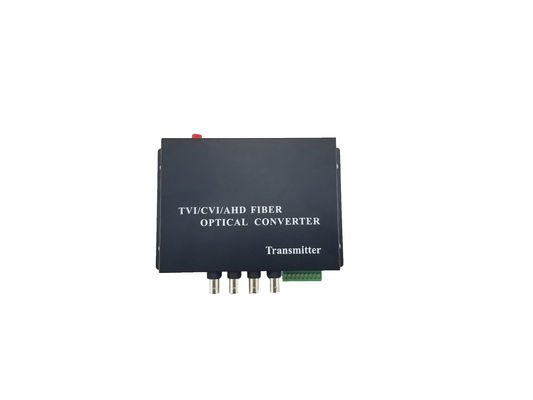

Large Image :  Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio

Product Details:

Place of Origin: China(mainland)
Brand Name: Ho-link
Certification: CE FCC RoHS
Model Number: HL-TVI/CVI/AHD-8V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working daysafter payment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Physical Interface: BNC Wavelength: 1310/1550nm
Data Format: RS485 422 232 Resolution: 1080P
Fiber Type: Single Mode Fiber EPS: DC5V

Digital Fiber Optic CCTV Video Converter with or without Reverse Data and Audio,1RS485 Return Data to Fiber SM 20km




Overview:




       The 2 Channel Video + Audio Series products adopt the most advanced international technology of digital video and optical fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal transmission over all kinds of optical fiber.





This Fiber Optical Transmitter & Receiver can be easily used in the normal operation by virtue of LED indication of working status, and without any electric or optical regulation on site. It can be installed independently or installed in 2U/4U rack.




Feature:

  • 1) High definition, Lossless non-compression real time transmission

    2) Auto recognition of input audio

    3) UPnP, easy installation

    4) Constant input optical power, and large dynamic range , no electrical or optical adjustments required .

    5) Industry-grade of operating temperature from -30to 75

    6) Stand-alone type or card-type installed in 19’’ 4U rack-mount chassis.

    7) Optical interface: FC,ST, SC (optional)







Product parameters






Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC
Distance 0km~120km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate less than 10
Operation Mode Half-Duplex
Indicators LOS, PWR, DATA, VIDEO
Mean time between failures(MTBF)
>100 000 hours
General EPS DC5V
Power Consumption less than 5W















Application:




Digital Fiber Optic CCTV Video Converter With Reverse Data And Audio














Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China

Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03










 Shipping and packaing



Package:neutral /standard/customized packing



Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)






Company Profile

     Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

     Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
