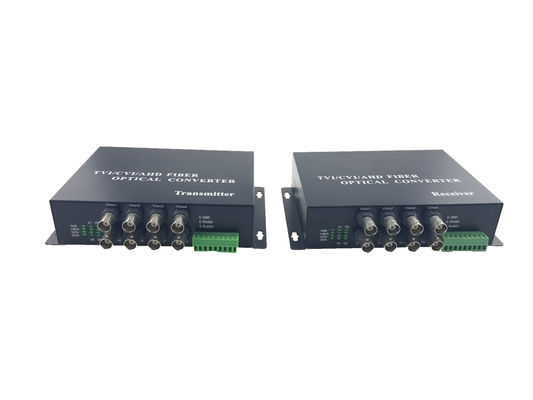

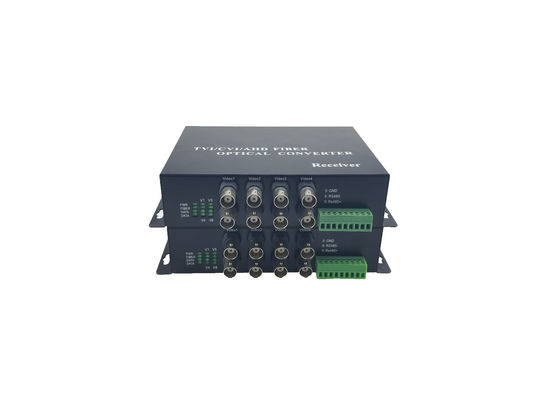

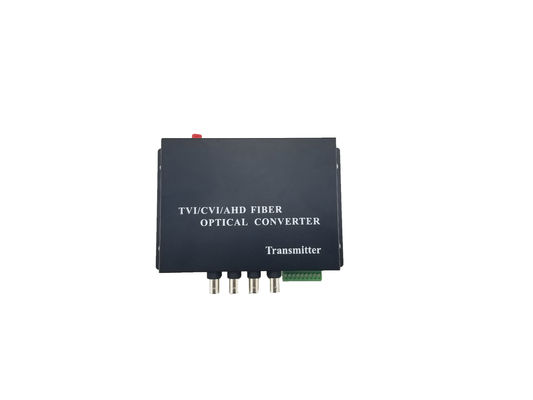

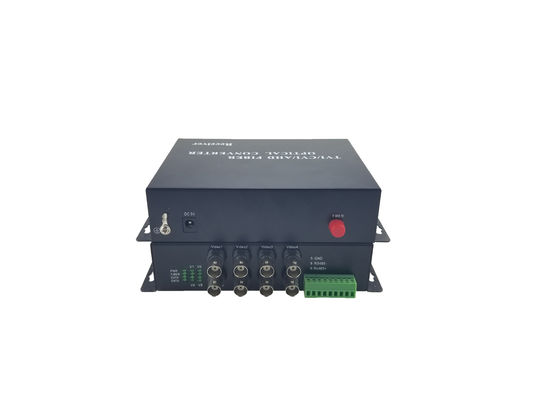

8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector

China 8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector supplier
8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector supplier 8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector supplier 8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector supplier 8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector supplier

Large Image :  8 Channel TVI / CVI / AHD Video to Fiber Transmitter 20km With FC Connector

Product Details:

Place of Origin: China(mainland)
Brand Name: Ho-link
Certification: CE FCC RoHS
Model Number: HL-TVI/CVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working daysafter payment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Distance: 20KM Corlor: Black
Data Format: RS485 422 232 Resolution: 1080P
Optical: FC (Standard) Power Adapter: 100-240V

8 channel TVI/CVI/AHD video transmitter video converter video multiplexer video surveillance,20km , with FC connector


Overview:


      This series of Digital Video/Data/Audio/Phone/Ethernet/E1 optical transmitter/reicever adopted the world-advanced SOC digital signal processing technology and the latest transmission technology for optical fiber communication, can transmit the 1-32 channels video data, 1-32 channels two-way audio data, 1-32 channels single/dual direction RS485/RS422/RS232 data and multiplexing data from Ethernet, telephone and E1 on single-core or two-core optical fibers through non-compression and lossless broadcasting-level transmission mode. The products are easy to be installed and adjustment free. It can transmit the signals for high quality video, audio and data with a distance of 110KM


      Digital Video Fiber Transmitter&Receiver is simple, small, light and easy to install. It applies advanced digital video and optic fiber transmission technology to achieve real-time and synchronous transmission of high quality and non-compression signals on single-core optic fiber. It is a perfect solution for signal transmission over remote distance.


Feature:

  • Full-digital non-compression, broadcasting level transmission, 8 digits coding

  • Compatible with Video lossless regenerative repeater
  • It can transmit 8 Channel forward direction Video and 1Channel reverse direction RS485 data.
  • The multi-channel single-direction bi-direction audio, video, data, telephone, Ethernet and switch real-time synchronization, no-distortion and high quality transmission is on the single-core or dual-core optical fiber.
  • signal transmission solution
  •  WDM/CWDM/DWDM optical fiber technology

  • For Bullet cameras, no control function

  • This product is made up of optical transmitter and receiver.
  • Support user-specified customization and OEM mode







Product parameters




VideoConnectors
Number of Channels1 channel to 64CH VideoVideo75Ω BNC (Gold Center Pin)
Input/output impedanceBNC 75ΩData3 Pin Terminal Block
Input/output CompatibilityPAL,NTSC,SECAMAudioTerminal Block
Input/output voltage1.0 Volt p-pOpticalFC (Standard)
Bandwidth6.5MHZStandalone powerScrew terminal block
Bit Resolution8-Bit Digital TransmissionRack PowerAC line card
Differential Gain< 1.5%Electrical & Mechanical
Differential Phase< 1.5°Input Power RequirementsDC 5V@2A
Tilt< 5%Power AdapterAC 100V~240V
Signal-to-Noise Ratio(SNR)> 67 dBPower Consumption< 3W







 Application:
