|Operating Temperature:||-40℃ - +85℃||Humidity:||0~95%non-condensing|
|Optical:||FC (ST, SC Optional)||Data Format:||RS485|

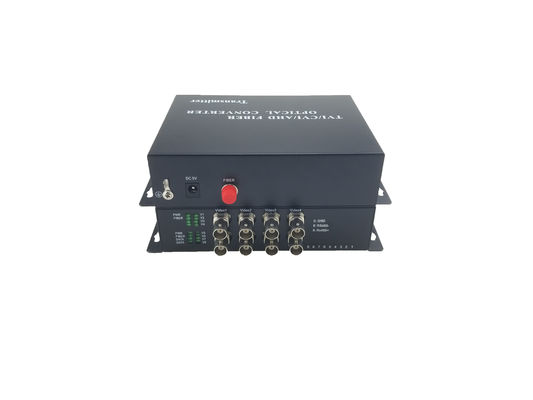

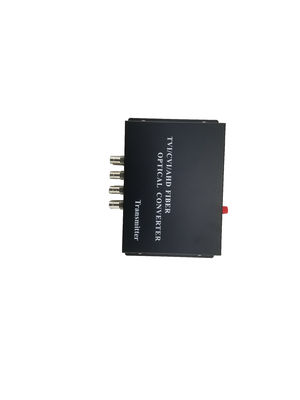

AHD CVI TVI 960P 8 Channel Video Optical Converter 8V1D Fiber Optic Video Optical Transmitter & Receiver 8CH +RS485 Data
TVI/CVI/AHD series video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 1-channel video signal on thesingle fiber. 1-channel video optical transceiver adopts the full digital videonon-compression transmission technology and high quality video effect, whichcan meet the user’s requirements; the play-and-plug design makes theinstallation more convenient and easier, and it is unnecessary to implement thespot adjustment; its optical module and core circuit adopts the importedcomponents that have high stability, and all optical & electricalinterfaces conform to the international standards, which is applied to thedifferent working environment. This optical transceiver with video statusindication can monitor the normal operation of system.
Thisoptical transceiver adopts the structure modularization design, and the usercan flexibly select or customize the configuration according to the spotdetailed conditions; the above optical transceiver can adopt the installationmode of independent type or framework type
|Optic fiber||Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m|
|Interface||FC standard, ST/SC optional|
|Channel Quantity||1/2/4/8/16ch from camera to control center|
|Impedance/Voltage||BNC 75Ω (unbalanced) / 2.0Vp-p|
|Differential Gain||< ±1%|
|Differential Phase||< ±1|
|S/N ratio||>60dB(weighting)(8 bit)|
|Channel Quantity||1-16, from control center to camera|
|Electrical. Environmental. Mechanical|
Shipping and packing:
· Standard and customized OEM products from small to large quantity are welcome.
· Compliance with global environmental industry with RoHS and SGS standards.
· All products are 100% fully tested by our technical expertise.
Our professional sales team and technology support team will answer all your questions and make sure our products meet your requirements. Also we offer long time after-service.
