OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM

China OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM supplier
OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM supplier OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM supplier OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM supplier OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM supplier

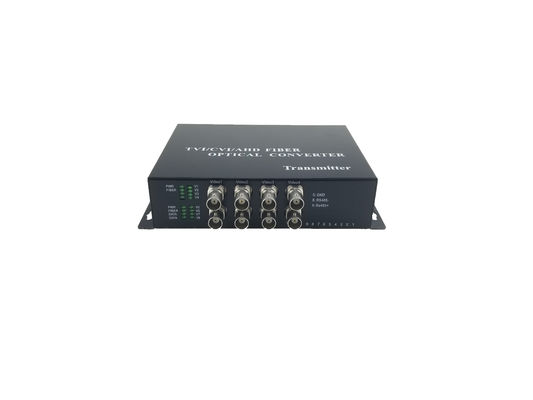

Large Image :  OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM

Product Details:

Place of Origin: CHINA (MAINLAND)
Brand Name: ho-link
Certification: CE FCC RoHS
Model Number: HL-CVI/TVI/AHD-8V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Wavelength: 850/1310nm Package Size: 57*40*49
Support: OEM/ODM Power: 5V 2A
Physical Port: BNC Port Video Bandwidth: 45MHz

OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM







Product Description



    8CH HDCVI Data Media Fiber Converter support 8CH 720p / 25,720p / 30,720p / 50,720p / 60,1080p / 25,1080p / 30 CVI coaxial analog HD video+ 1CH reverse/bidi RS485 data +1CH full duplex 10/100M ehternet over a single fiber , using self-developed non-compressed digital photoelectric conversion technology, , to achieve megapixels level analog HD video point to point highly and reliably transmission over fiber without delay,



OEM 8ch 1080P AHD CVI TVI video optic fiber converter extender HD CCTV signals,with Reverse rs485&RS422&RS232 data,20KM







Product Features



1. aluminum case wall-mounted or plug-mounted 2U chassis
2. Support 25/30/50 / 60fps 720P & 25 / 30fps 1080P
3. All interface uses three anti-static, lightning protection
4. Wide optical dynamic range and advanced adaptive technology, transmissiondistance up to 20KM
5. The surface mount devices, to ensure that products are small, high stability, high reliability
6.Low electromagnetic interference (EMI), radio frequency interference (RFI)as well as common ground loop interference
7. Rich LED indicator diagnostic indication
8. Plug and Play, hot swappable
9. Small size, low power consumption, anti-interference ability, high fidelity, etc.
10. Industrial wide temperature range (-30 ℃ ~ + 75 ℃), to adapt to the more environment
11. support user customization and OEM











Description:







Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~-3dBm
Rx sensitivity -25dBm
Transmission Distance

50/125u multimode,1km;62.5/125u multimode,500m

9/125u single mode, 20km

Optical connector FC,ST,SC (optional)

Video:

Number of Channels 8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Data:

Data protocol RS485(Reverse or Bidi)
Data rate 0~200 Kbps
Error rate < 10-9
Connector Standard terminal lead

Ethernet:

Work mode Full duplex/half duplex
Data Rate 10/100Mbps(AUTO)
connection terminal RJ45

Other

Power DC5V 2A
Power Consumption ≤5W
Temperature -30ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1.5 (pair)
Dimension 175mm×154mm×30mm
Package size 57*40*49cm
Installation Wall mount
MTBF ≥ 100000Hours
Case material Aluminum











Application:



1. Urban Traffic Monitoring System
2. public security, safe city monitoring system
3. highway security, charging system
4. buildings, campus monitoring network
5. Industrial monitoring (airport, chemical, iron and steel, petroleum, railway, water conservancy, mining, etc.)
6. Military monitoring (storage, frontier defense, guard, national defense, etc.)
7. Power oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)
