Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC

China Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC supplier
Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC supplier Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC supplier Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC supplier Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC supplier

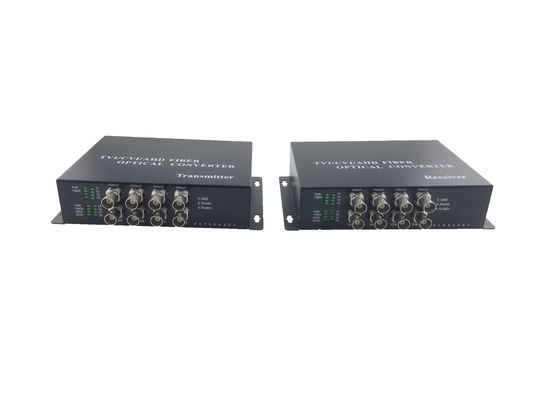

Large Image :  Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC

Product Details:

Place of Origin: CHINA (MAINLAND)
Brand Name: ho-link
Certification: CE FCC RoHS
Model Number: HL-CVI/TVI/AHD-8V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Wavelength: 850/1310nm Output Impedance: 75Ω
Support: OEM/ODM Power: 5V 2A
Physical Port: BNC Port Number Of Channels: 8

Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC ​







Product Description



   HDCVI optical transceiver is designed by Ho-link for long-distance fiber transmission of HDCVI HD compound video, adopt the compressed digital photoelectric conversion technology by their research and development, use fiber to transfer Millions of pixel HD video by dot to dot, and realize video transmission without delay and with high



   Reliability. Single fiber can transfer 1-2 CH HDCVI HD compound video at the same time.
HDCVI HD optical transceiver supports two HD video format 1280H and 1920H, supports two resolution ratio 1280×720 and 1920×1080,four frame rate 25,30,50,60, six HD format 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f.





Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC







Product Features



*Aluminum alloy shell wall or 1 u case

*Support 1280H and 1920H two HD video format

*All interface adopts three-level anti-static, lightning protection

*Ultra-wide optical dynamic range and advanced adaptive technology , and transmission distance is up to 40 km

*Surface Mount Optical Device, and ensure small volume of products, high stability, high reliability

*Very low electromagnetic interference (EMI),adio-frequency interference (RFI) and a total of ground loop interference

*Rich LED lights, diagnostics indicator

*Plug and play, support hot plug

*The advantage of small dimension,small power,strong anti-interference ability, high fidelity

*Industrial-grade ultra wide temperature range (-40℃~+85℃), adapt to the more environment

*Support user customization and OEM













Description:



Opitcal:
Wavelength 1310nm&1550nm
Output Power -6~-2dBm
Rx sensitivity -22dBm
Transmission Distance 9/125u single mode, 20km
Optical connector FC,ST,SC (optional)



Video:
Number of Channels 8
Input/output impedance 75Ω
Physical Port BNC port
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 60MHz
Sampling Bandwidth 10bit
Sampling Frequency 120MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Data:
Data protocol RS485 442 232
Data rate 0~200 Kbps
Error rate < 10-9
Connector Standard terminal lead



Other:
Power DC5V 2A
Power Consumption ≤7.5W
Temperature -30ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours
unit pair


Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC



Packaging & Shipping


Delivery

1. Method of shippment

The goods will be sent by International express, such as DHL/Fedex/UPS/TNT. It takes 3~7 days!

2. Delivery time

Sample: 2 days
Order: Normal 3~5 days
Mass production: It depends on the quantity and the season when you order. Please contact LISA to ask the lead time.









Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China

Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03



Video To IP Converter Fiber Optical Converter Audio Video









Packing list

1 Pair (Transmitter & Receiver)

2 x Power supply

1 x User manual
