R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm

China R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm supplier
R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm supplier R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm supplier R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm supplier R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm supplier R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm supplier

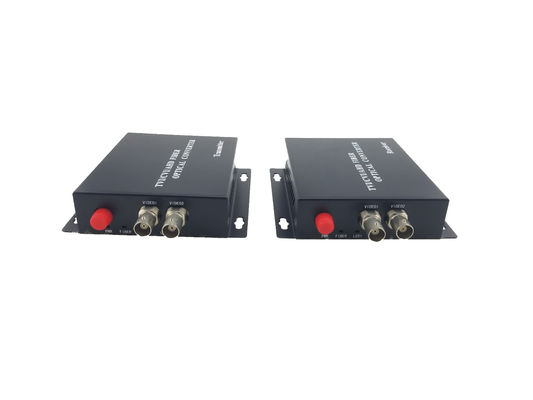

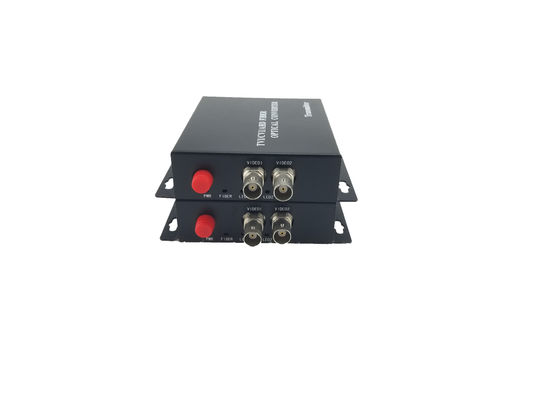

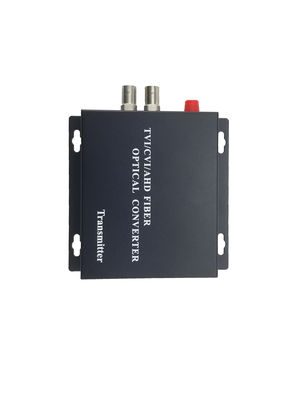

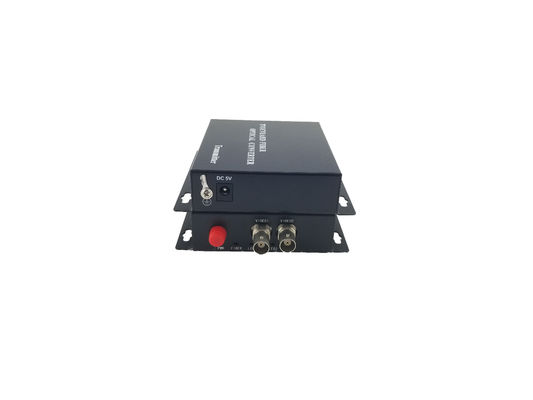

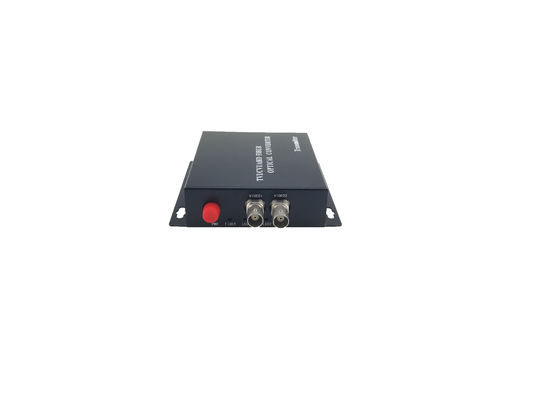

Large Image :  R232 / RS422 / R485 BNC To Fiber Converter For IP Camera 20KM 1310 / 1150nm

Product Details:

Place of Origin: China
Brand Name: ho-link
Certification: CE RoHS FCC
Model Number: H-TVI/CVI/AHD-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Transmission Distance: 20KM Operating Wavelength: 1310/1550nm
Optical: FC (ST, SC Optional) Encoded Type: RS485 RS422
Standards: IEEE802.3 Video: 8 Channels

R232/RS422/R485 BNC to fiber digital video converter for IP Camera,20KM 1310/1150nm,FC connector,1080P



Description





     video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 32-channel video signal on thesingle fiber. 32-channel video optical transceiver adopts the full digital videonon-compression transmission technology and high quality video effect, whichcan meet the user’s requirements; the play-and-plug design makes theinstallation more convenient and easier, and it is unnecessary to implement thespot adjustment; its optical module and core circuit adopts the importedcomponents that have high stability, and all optical & electricalinterfaces conform to the international standards, which is applied to thedifferent working environment. This optical transceiver with video statusindication can monitor the normal operation of system.



      Thisoptical transceiver adopts the structure modularization design, and the usercan flexibly select or customize the configuration according to the spotdetailed conditions; the above optical transceiver can adopt the installationmode of independent type or framework type.









Feature



1. Support any high-resolution video signal
2. 5Hz-10MHz video channel
3. Automatic compatible PAL, NTSC and SECAM video system
4. constant input optical power, and largedynamic range
5. Kilomega optical fiber transmission, large capacity, andeasy to upgrade
6. Power supply and other parameter state indication, whichcan monitor the operation condition of system
7. Support no-damage regenerative trunk of video
8. Advanced self-adapting technology, and it is unnecessary toimplement the adjustment of spot electrics or optics when using
9. Industry-grade design and modularization design make theequipment reliable and flexible













Specifications

Technical Specification
Video
8 channels
Video bandwidth automatic 8MHz
Compatible video system PAL,NTSC,SECAM
Video input / output impedance 75 ohm(unbalance)
Video signal-to-noise ratio more than 67dB
Differential gain (10%-90%APL) DG <1% ( typical value)
Differential phase (10%-90%APL) DP <0.7° ( typical value)
Video connector BNC
Fiber-optic Specification
F/O connector FC/ST/SC
TX Power:-8 ~ -3dBm Sensitivity :≤-35dBm
RX Power:-15 ~ -8dBm Sensitivity :≤-24dBm
Transmission Distance 20KM (single mode)
Operating Wavelength TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
Specification of custom-made options
Data Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER: ≤10-9
Audio Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted)
Telephone
Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO
Ethernet Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M













Application


Intelligent Transportation System

Connection of Sub-network for Surveillance Center
Public Security Surveillance High Way & Toll Station Surveillance
Industrial Closed Circuit Television Surveillance
