Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector

China Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector supplier
Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector supplier Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector supplier Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector supplier Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector supplier

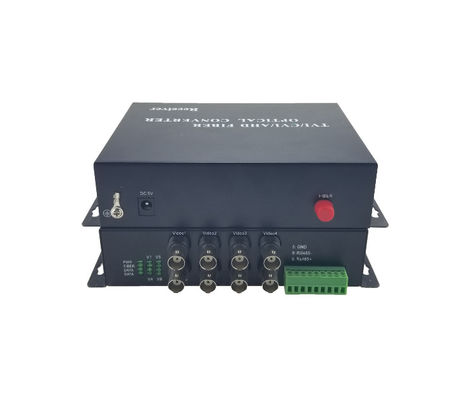

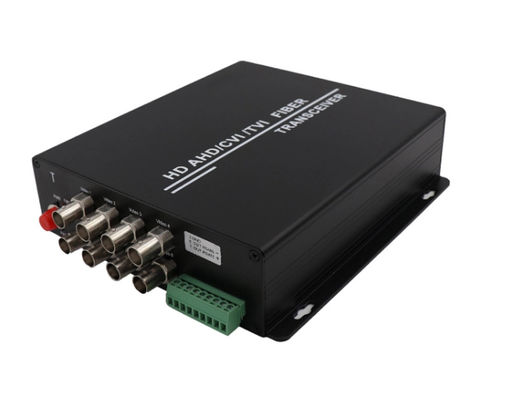

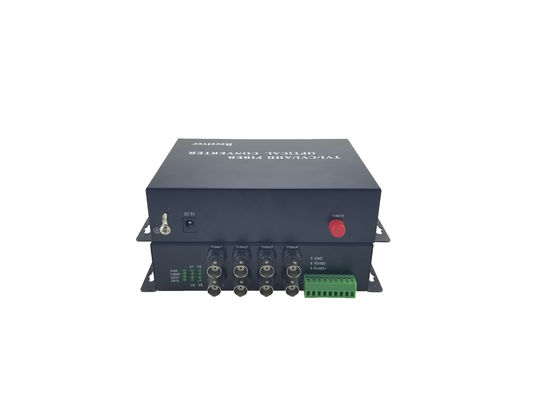

Large Image :  Single Core 8 Channel Fiber Optic Audio Digital Video Optical Converter FC Connector

Product Details:

Place of Origin: China
Brand Name: ho-link
Certification: CE RoHS FCC
Model Number: H-TVI/CVI/AHD-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Input Power: DC5V @ 2A Operating Wavelength: 1310/1550nm
Optical: FC (ST, SC Optional) Data Format: RS485
Bandwidth: 8MHz Video: 8 Channels

Single core 8 Channel Fiber Optic Required Audio Digital Video Optical Converter,20KM 1310/1150nm,FC connector,1080P



Description



    The bnc to fiber video converter can simultaneously transmit 1-8 channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These High Performance 8channel Fiber Video Multiplexer are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .











Feature



1.8channels encoded and non-compression broadcast quality video transmissionDirectly compatible with NTSC, PAL, and

2.SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocolsSupport any high-resolution video signal

3.Automatic compatible PAL, NTSC and SECAM video system

4.1-4 channels audio (optional)

5.1-4 channels asynchoronus data (optional)

6.1 port 10/100Mbps ethernet (optional)

7.Power supply and other parameter status indication, which can monitor the operation condition of system

8.Support no-damage regenerative trunk of video

9.Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .

10.Industry-grade of operating temperature from -40 to 85 degree , which is applied to the different working environment

11.Hot-swap supportted

12.Stand-alone type or card-type installed in 19 inch 2U or 4U rack-mount chassis.

















Specifications

Technical Specification
Video
8 channels
Video bandwidth automatic 8MHz
Compatible video system PAL,NTSC,SECAM
Video input / output impedance 75 ohm(unbalance)
Video signal-to-noise ratio more than 67dB
Differential gain (10%-90%APL) DG <1% ( typical value)
Differential phase (10%-90%APL) DP <0.7° ( typical value)
Video connector BNC
Fiber-optic Specification
F/O connector FC/ST/SC
TX Power:-8 ~ -3dBm Sensitivity :≤-35dBm
RX Power:-15 ~ -8dBm Sensitivity :≤-24dBm
Transmission Distance 20KM (single mode)
Operating Wavelength TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
Specification of custom-made options
Data Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER: ≤10-9
Audio Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted)
Telephone
Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO
Ethernet Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M













Application


Intelligent Transportation System

Connection of Sub-network for Surveillance Center
Public Security Surveillance High Way & Toll Station Surveillance
Industrial Closed Circuit Television Surveillance


Fiber optic terminal equipment bnc to fiber video converter 8 channels
