OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter

China OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter supplier
OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter supplier OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter supplier OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter supplier OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter supplier

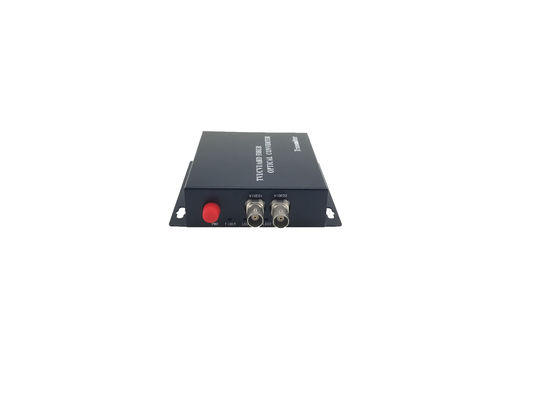

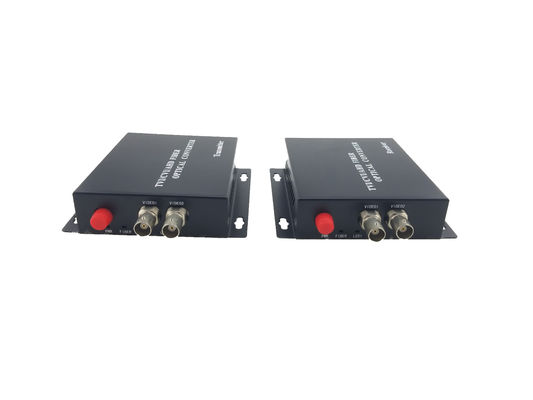

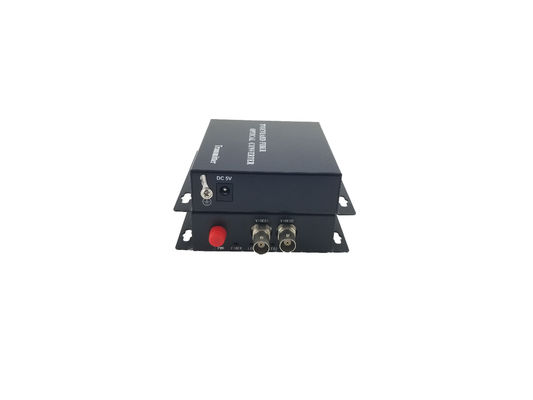

Large Image :  OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter

Product Details:

Place of Origin: China
Brand Name: ho-link
Certification: CE RoHS FCC
Model Number: H-TVI/CVI/AHD-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Input Power: DC5V @ 2A Video: BNC
Optical: FC (ST, SC Optional) Data Format: RS485
MTBF: >100,000 Hours Number Of Channels: 1 Channel Video

OEM 2 Channel AHD Video to Fiber Optic media converter/ RS485/Ethernet/audio,Video optical transmitter and receiver



Description



    Series fiber video multiplexers transmit 1-channel of broadcast quality video using 8-bit digitally

encoding and decoding over one multimode or single-mode optical fiber. The modules are directly compatible

with NTSC, PAL or SECAM CCTV camera systems. These multiplexer units are typically used in applications

that have fixed cameras. 1 return rs485 data is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never

required. A typical installation utilizes a 1-channel transmitter unit at the camera end of the link, connected via

a single fiber optic cable, to a 1-channel receiver unit at the monitoring end of the link. Devices are available

for either standalone or rack mount installation. The units incorporate LED indicators for monitoring the power and video operating status.











Feature



1.8channels encoded and non-compression broadcast quality video transmissionDirectly compatible with NTSC, PAL, and

2.SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocolsSupport any high-resolution video signal

3.Automatic compatible PAL, NTSC and SECAM video system

4.1-4 channels audio (optional)

5.1-4 channels asynchoronus data (optional)

6.1 port 10/100Mbps ethernet (optional)

7.Power supply and other parameter status indication, which can monitor the operation condition of system

8.Support no-damage regenerative trunk of video

9.Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .

10.Industry-grade of operating temperature from -40 to 85 degree , which is applied to the different working environment

11.Hot-swap supportted

12.Stand-alone type or card-type installed in 19 inch 2U or 4U rack-mount chassis.

















Specifications

• Video
Video input/output impedance BNC 75 Ω
Number of Channels 1 Channel Video
Video input 1 volt pk-pk (75 ohms)
Bandwidth 5 Hz - 8 MHz
Bit Resolution 8-Bit Digital Transmission
Differential Gain < 1.5%
Differential Phase < 1.5 °
Tilt < 5%
Signal-to-Noise Ratio(SNR) > 67 dB
Data
Data Format RS485
Bit Error Rate 10E-9
• Connectors
Optical FC (ST, SC Optional)
Video BNC
• Electrical & Mechanical
Input Power Requirements DC5V @ 2A
Power Adapter AC 100V~240V
Stand-Alone Dimensions 113*95*25mm
Card for 4U Rack Dimensions 195*140*29mm
• Environmental
Operating Temperature 0°C ~ +50°C
Storage Temperature -20°C ~ +70°C
Relative Humidity 0% ~ 95% (non-condensing)
MTBF >100,000 hours











Connection Diagram

OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter











Shipping and packing:



OEM HD 1080p Video Converter 2 Channel AHD Video To Fiber Optic Media Converter
