|Optic Wavelength:||1310/1550nm||Video Connector:||BNC|
|Encoded Type:||RS485 / RS422 / RS232||Physical Interfaces:||One Way Forward|
|Single Mode:||20KM||Differential Gain:||<1% (typical)|

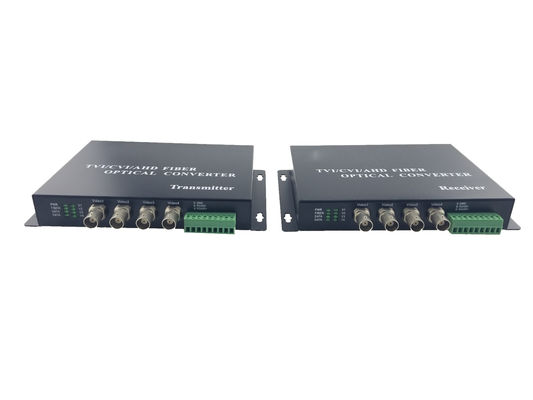

HD 4Chs AHD video converter over fiber optic 1Ch Half duplex RS485 , single mode, 20km, supplying HD-CVI/AHD/TVI vedio converter
4 channel video+1 channel RS485+Ethernet+ audio etc. over fiber - 4 channel transmitters and receiversrealizes maximum 4channel forward video or 2channel bidirectional video, 100M Ethernet, bidirectional RS485 data transmission over fiber. Besides, 2 extra service slots are also offered to provide more flexible functions, including audio, data, key, phone. Please feel free to contact us to verify your specifications.
- Digital video uncompressed transmission technology makes perfect video transmission effect
- Supprot any video signal with high reslution
- Support 720p, 960p, 1080p video etc.
-Support 1~8ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.
- Supports any high-resolution video signals
- With 1-CH reverse RS485 data or without data for optional.
- Auto compatible with PAL, NTSC, SECAM video systems
AHD TO Fiber Converter System connection diagram

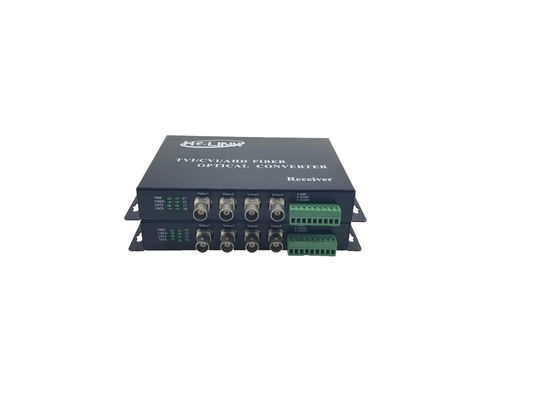

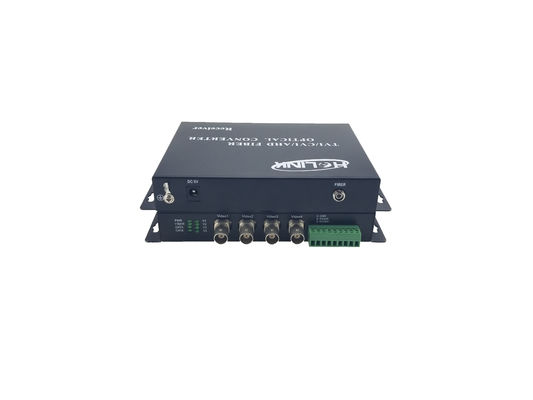

Video Digital Fiber Optic Transmitter and Receiver
Video Digital Fiber Optic Transmitter
3.low power comsuption
|Transmission distance: multi-mode 2KM, Single 20/40/60/100Km|
|Optical Interface: FC / PC, SC / PC, ST / PC|
|Video channels: 1-32|
|Video format: PAL / NTSC / SECAM auto-compatible|
|Video Bandwidth: 8MHz|
|Weighted signal to noise ratio:> 70dB (typical)|
|Differential Gain: <1% (typical)|
|Differential phase; <0.7 °|
|Input / Output: 1.0VP ~ P75Ω (BNC)|
|Number of channels / physical interface: 2-way (single / two-way optional), Industrial terminal|
|Data format: RS485/RS232 / RS422/Manchester code|
|Total sampling rate / baud rate: 2MHz / DC ~ 256Kbps|
|Alarm / indicator switch capacity|
|Number of channels / physical interfaces: one way forward, Industrial terminal blocks|
|Input / Output: support any active or passive alarm, switch signal|
|Audio channels / interfaces: one-way or 4-way 8-way, industrial terminal|
|Input / output impedance of 600 ohms, unbalanced|
|Rated level: 2Vp-p (typical)|
|Weighted signal to noise ratio: S / N ≥ 85dB|
|Operating temperature: -40 °C ~ 75 °C|
|Operating voltage: DC5V/1A|
Packaging & Shipping
Packaging Details : Product inside the plastic bag,PE Foam to protect the product,then put in the carton.
Delivery Detail : Sample: within 24 hours Bulk Order: 3-7 days after deposit
