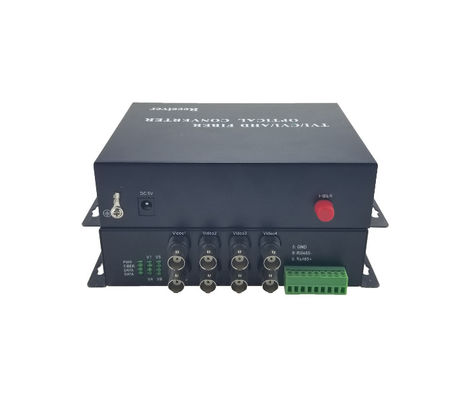

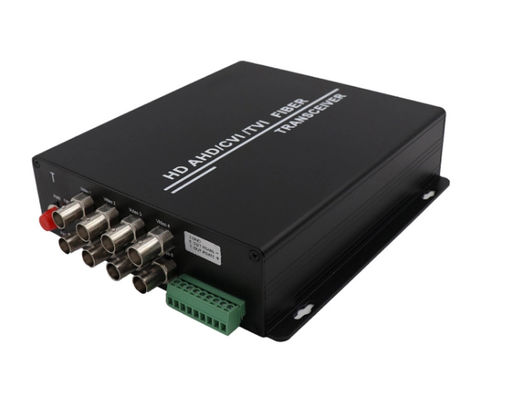

Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode

China Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode supplier
Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode supplier Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode supplier Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode supplier Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode supplier

Large Image :  Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Optic Wavelength: 1310/1550nm Shipping: DHL.TNT,UPS
Encoded Type: RS485 / RS422 / RS232 Certificate: CE RoHS ,FCC
Video Bandwidth: 50MHz Power: 5V2A

AHD vedio to fiber converter with 1ch data, 0~20km, SMF/MMF,Optic wavelength 1310/1550nm/5V2A







Product Description



Introduction





This digital video optical transceiver adopts digital video encoding and gigabit optical fiber transmission technology. The multi-channel single-direction bi-direction audio, video, data, telephone, Ethernet and switch real-time synchronization, no-distortion and high quality transmission is on the single-core or dual-core optical fiber. Complete digital video non-compression transmission technology, with video and data condition indicator, can monitor the system normal operation. It uses modular design, the user can flexibly select or customize configuration based on the scene occasion. Rack installation or desktop installation can be optional. This product is made up of optical transmitter and receiver. It can transmit 16Channel forward direction Video and 1Channel reverse direction RS485 data.



Full HD 8 Channels CVI TVI AHD Video Fiber Converter With 1channel Data SMF / MMF Optic 1310mm 1550nm single mode





Feature





- Supports point-to-point connection

- Unpressed and undistorted digital broadcasting transmission

- Transports 32channel video



for simulated frequency, phase, and amplitude modulations

- Supports any high-resolution video signals

- Asynchronous data can be RS232/RS485/RS422/Manchester code


- Auto compatible with PAL, NTSC, SECAM video systems

- Supports video, data, Ethernet, telephone voice parallel

transmis sion









Application



Green city, highway and subway full control, RS-422 or RS-485 full/half-duplex control of PTZ, communication transmission, access control system, fire alarm system, intelligent building etc..







AHD TO Fiber Converter System connection diagram





video optical transmitter and receiver 64 Channel











Technical Specification

Video Digital Fiber Optic Transmitter and Receiver

Video Digital Fiber Optic Transmitter
1.good Price
2.high-quality
3.low power comsuption
4. CE,RoHs,FCC



Fiber FC/ ST/PC Single Mode Single Fiber
Transmition Distance 0-120km
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
delivery 2-3 wroking days
Self-adaption cable equilibrium



1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m



Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 1-Ch~16-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A
Warranty 3 years
Corlor black
Operation Temperature -30°C~75°C





* Accessories in the package



User Manual maintenance card Qualified Certification Power Adapter Device
1 copy 1 copy 1 copy 1 pcs



1 pair







* Process of replacement:


1. Show us the defective products via picture, video
2. Comfirm the quantity
3. We will verify it and find the root case to solve it out

4. New replacements will be offered together with your next order







Packaging & Shipping



  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT .If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
