HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode

China HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode supplier
HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode supplier HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode supplier HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode supplier HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode supplier

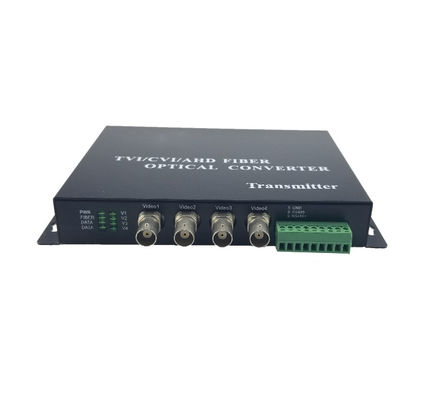

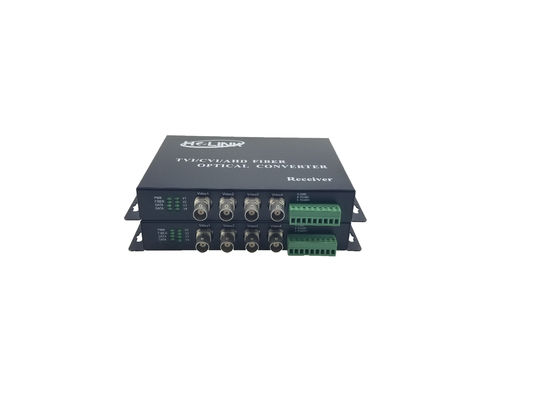

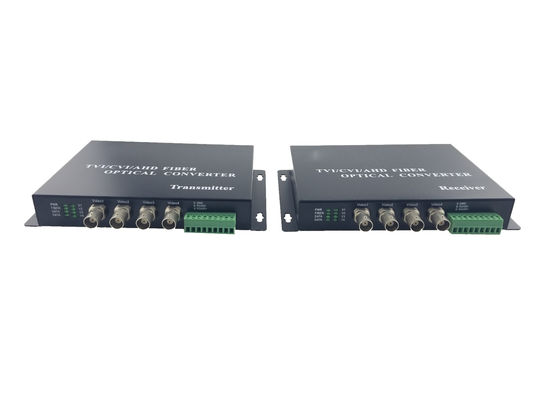

Large Image :  HD-CVI / AHD / TVI Fiber Video Converter 4 Channel Fiber Optic Single Mode / Multi Mode

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Optic Wavelength: 1310/1550nm Number Of Channels: 4 Channels
Optical Connector: FC,ST,SC (optional) Resolution: 720p, 960p,1080p
Transmission Distance: 0-40KM Power: DC5V 2A

hd-cvi/ahd/tvi vedio converter with 4 channel fiber optic,single mode/multi mode,DC 5V power supply,Non-compression







Product Description



Introduction





   Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer.



    Holink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.


   Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.





Feature





8 bit video signal digital sampling

High-speed synchronous digital transmission technology

Modular structure design(audio card and data card for optional configuration)

Super optical dynamic range, no adjustment needed

Status indication for power supply, optical signal and video

No electromagnetic interference, radio frequency interference and ground current

Safe transmission guaranteed under poor electromagnetic environment

BNC video connector

FC optical connector

Video DC recovery

Maximum tolerable link loss for single mode single fiber is 17db









Application



Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance

Coliseum using for TV-live ,audio transmission







AHD TO Fiber Converter System connection diagram



2 Channel Video Converter; 2 channel digital fiber optical video converter 2 Channel Video to Fiber Converter









Technical Specification





Product hd cvi/tvi/ahd video converter
Video Digital Bit Width 8/10 bit
Optic wavelength 1310/1550nm
Resolution 720p, 960p,1080p
Transmission Distance 0-40KM
Features lossless, hd, real time transmition
External Power Supply DC5V2A
Video Connector BNC
Fiber connector FC/ST/SC (optional)
Video channel 8 channel forward video
Data cnannel 1 channel reverse data
Input/Output Impedance 75 Ω
Weight 1.23kg
Size 165mm*140mm*30mm
MTBF ≥ 100000Hours
Warranty 3 years









Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

Shipment







Company Information


Company Profile



Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
