2ch HD 1080p Video Converter 1 Return Data / 1 Audio To Fiber Optic Video Multiplexer

China 2ch HD 1080p Video Converter 1 Return Data / 1 Audio To Fiber Optic Video Multiplexer supplier

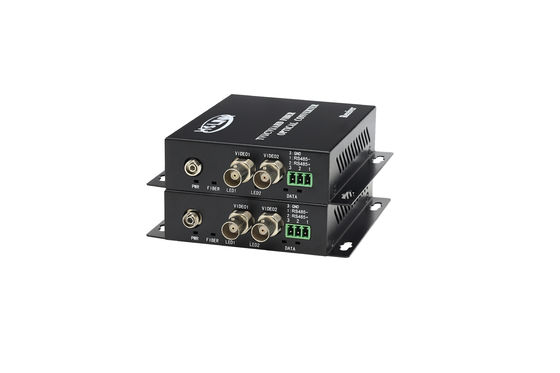

Large Image :  2ch HD 1080p Video Converter 1 Return Data / 1 Audio To Fiber Optic Video Multiplexer

Product Details:

Place of Origin: CHINA
Brand Name: HOLINK
Certification: CE RoHS
Model Number: H-CVI/TVI/AHD-8V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1PAIRS
Price: USD 1-160 1 PAIR
Packaging Details: international standard package
Delivery Time: 2-3 workdays
Supply Ability: 10000PAIRS ONE MONTH
Contact Now
Detailed Product Description
Number Of Channels: 1~16 Distance: 0-120KM
Physical Interface: BNC Power: DC5V 2A
Operation Mode: Half-Duplex Indicators: LOS,PWR,DATA,VIDEO

ahd cvi 2ch video/1return data/1 audio to fiber sm 20km optical video multiplexer 1ch to 64ch cctv fiber video converter factory




Product Description



Introduction



Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.



Devices are available for either standalone or rack-mount installation, which is suitable for

different working environment .



Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.



Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation



Application



² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)







AHD TO Fiber Converter System connection diagram

2ch HD 1080p Video Converter 1 Return Data / 1 Audio To Fiber Optic Video Multiplexer







Technical Indexes

Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC
Distance 0km~120km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≤ 10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)
>100 000 hours
General EPS DC5V
Power Consumption

≤ 5W









Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed
