TVI / AHD / HD 1080p Video Converter 1 - 16 Ch HD Coaxial Fiber Video Converter

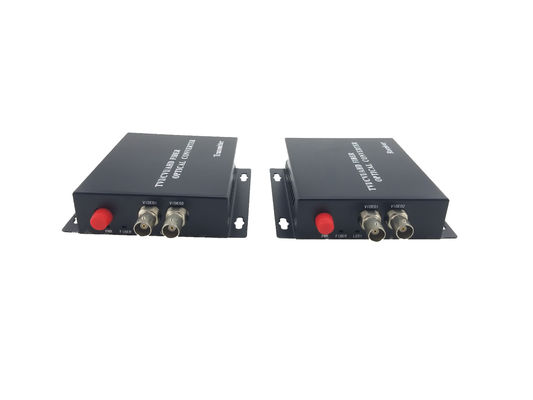

Large Image : TVI / AHD / HD 1080p Video Converter 1 - 16 Ch HD Coaxial Fiber Video Converter

Product Details:

Place of Origin:	CHINA
Brand Name:	HOLINK
Certification:	CE RoHS
Model Number:	H-CVI/TVI/AHD-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity:	1PAIRS
Price:	USD 1-160 1 PAIR
Packaging Details:	international standard package
Delivery Time:	2-3 workdays
Supply Ability:	10000PAIRS ONE MONTH

Contact Now

Detailed Product Description

Number Of Channels:	1~16	Video Bandwidth:	45MHz
Sampling Bandwidth:	120MHz	Rx Sensitivity:	-22dBM
Sampling Frequency:	AHD Video Converter	Differential Gain:	< ±1.5%
Highlight:	1080p hd video converter , cctv video multiplexer

TVI/AHD/HD CVI fiber optical converter 1 to 16 channels HD coaxial Fiber video converter

Product Description

Introduction

HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.

HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.

Feature

Ø Non-compression coding technology
Ø Automatically identify formats of input videos
Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
Ø DC 5V power supply
Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
Ø Through LED indicators to inform its functional mode
Ø Industrial wide range of operational temperature
Ø Plug and play, simple installation

Application

² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)

AHD TO Fiber Converter System connection diagram

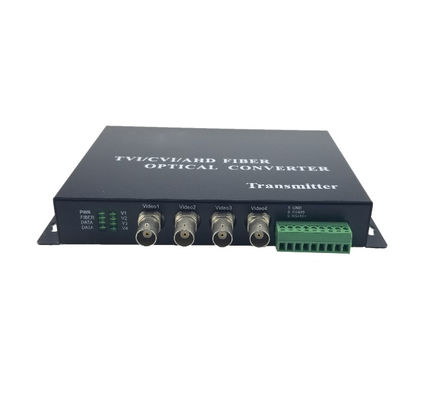

TVI / AHD / HD 1080p Video Converter 1 - 16 Ch HD Coaxial Fiber Video Converter

Specifications

Opitcal:

Wavelength	1310nm&1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-22dBm
Optical connector	FC,ST,SC (optional)
Distance	0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels	1~16
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	60MHz
Sampling Bandwidth	10bit
Sampling Frequency	120MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC

Other:

Power	DC5V 2A
Power Consumption	≤5W
Temperature	-40ºC ~75ºC
Humidity	10%~90% RH
Unit Weight	1ch :0.75kg, 2ch/4ch/8ch: 1.5KG(pair)
Dimension	1 : 104mm×104mm×28mm 2ch /4ch/8ch: 183mm×154mm×30mm
Installation	Wall mount
MTBF	≥ 100000Hours
