1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver

China 1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver supplier
1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver supplier 1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver supplier 1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver supplier 1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver supplier

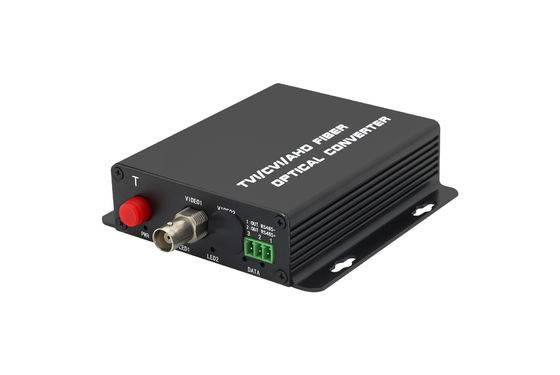

Large Image :  1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver

Product Details:

Place of Origin: CHINA
Brand Name: HOLINK
Certification: CE RoHS
Model Number: H-CVI/TVI/AHD-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1PAIRS
Price: USD 1-160 1 PAIR
Packaging Details: international standard package
Delivery Time: 2-3 workdays
Supply Ability: 10000PAIRS ONE MONTH
Contact Now
Detailed Product Description
Number Of Channels: 1~16 Video Bandwidth: 45MHz
Input/Output Impedance: 75Ω Power: DC5V 2A
Atmospheric Pressure: 86kpa~106kpa Fiber Connector: FC Or ST Or SC

1 Channel Video and 1 Reverse Data coaxial video transmitter and receiver/1 channel receiver



Product Description



Overview



AHD TO Fiber Converter can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.





Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation







Application



² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)







AHD TO Fiber Converter System connection diagram



1 Channel Video And 1 Reverse Data Coaxial Video Transmitter And Receiver










Technical Indexes:


Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength

Transmitter

T1310nm, R1550nm.

Receiver

T1550nm,R1310nm.

HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m

Input/Output Impedance 75 Ω
Physical Interface 1~64 channels BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~64 channels BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate <10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption <5W
Operation Temperature —40℃~75
Operation Humidity 10%~90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted
