HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector

China HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector supplier
HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector supplier HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector supplier HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector supplier HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector supplier HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector supplier

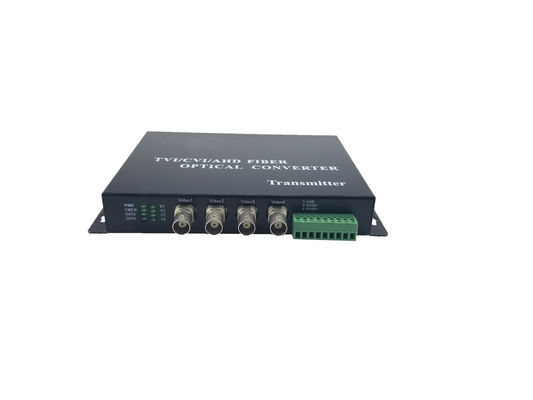

Large Image :  HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC/SGS
Model Number: HL-4V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 10pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: shipped within 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 6,000pairs per month
Contact Now
Detailed Product Description
HDCVI/TVI/AHD Interface: 4 Channels Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
RS485 Data: Yes Operating Temperature: -40 °C ~ +70 °C

HDTVI AHD HDCVI Video to Fiber Converter for for 720P/960P/1080P PTZ Camera

HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector



Company information:



      Ho-link HD-AHD/CVI/TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI or HD-TVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.

      Ho-link AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-8 channels AHD, HD-CVI or HD-TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.



HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector







Product Description:



     4 channel CVI/TVI/AHD Video+reverse RS485 data to fiber converter
This video transmitters and receivers support 4 channels CVI/TVI/AHD video + Rs485 over one multi-mode or single-mode optical fiber. The devices are directly compatible with NTSC, PAL, and SECAM camera systems.
     Plug and Play design ensures adjustment-free installation and operation. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. Devices are available for either stand alone or rack-mount installation with the 14-Slot Chassis.






Key features:



1. Automatically identify formats of input videos.

2. Support 1~32ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.

3. With 1-CH reverse RS485 data or without data for optional.

4. DC 5V power supply.

5. Support 720p, 960p, 1080p video etc.

6. Through LED indicators to inform its functional mode.

7. Industrial wide range of operational temperature.

8. Plug and play, simple installation.









PANEL DESCRIPTIONS:



1-Channel AHD CVI TVI video to ethernet converter1-Channel AHD CVI TVI video to ethernet converter









Technical Indexes:



Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC/SC/ST
Distance 0km~80km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDTVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDTVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate <10 -7
Operation Mode Half-Duplex;Full-Duplex;RS-232
Indicators LOS,PWR,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≤ 5W








HDTVI TO Fiber Converter System connection diagram:

HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector

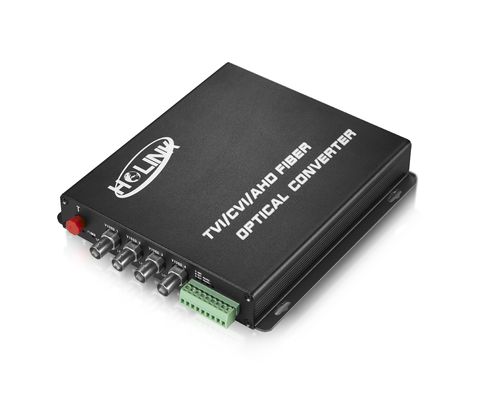

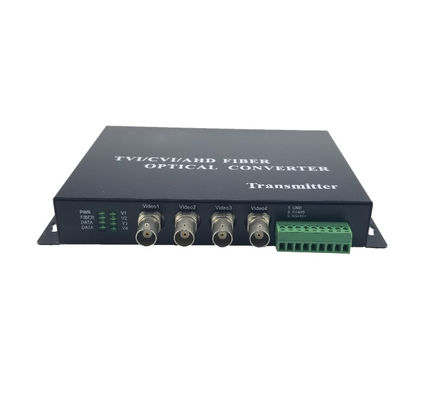

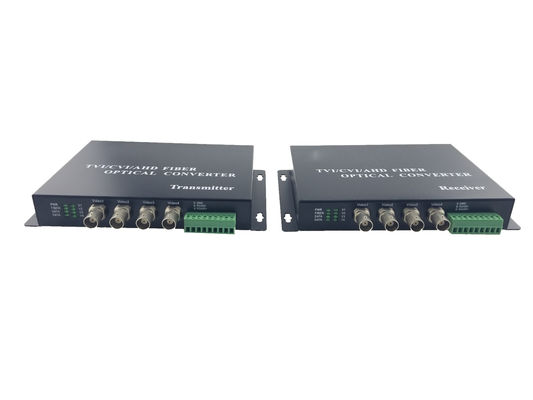

Photo display:

HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector

HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector

HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector

Shipping:



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector





Payment



HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector





Our Services:



Welcome to inquire!



HDTVI AHD HDCVI Video to Fiber Converter  for 720P/960P/1080P ,Non-compression,10-80KM,SC FC ST fiber connector
