8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber

China 8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber supplier
8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber supplier 8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber supplier 8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber supplier 8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber supplier 8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber supplier

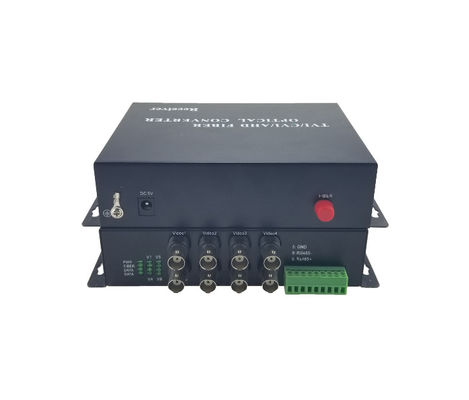

Large Image :  8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC/SGS
Model Number: HL-4V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 10pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: shipped within 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Number Of Channels: 4 Channels Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Operating Temperature: -40 °C ~ +70 °C Optical Connector: FC/SC/ST(optional)

8 channel HDTVI/CVI/AHD to video converter with 1-CH Half duplex RS485,Single mode fiber





Product Description:



     4 channel CVI/TVI/AHD Video+reverse RS485 data to fiber converter
This video transmitters and receivers support 4 channels CVI/TVI/AHD video + Rs485 over one multi-mode or single-mode optical fiber. The devices are directly compatible with NTSC, PAL, and SECAM camera systems.
     Plug and Play design ensures adjustment-free installation and operation. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. Devices are available for either stand alone or rack-mount installation with the 14-Slot Chassis.

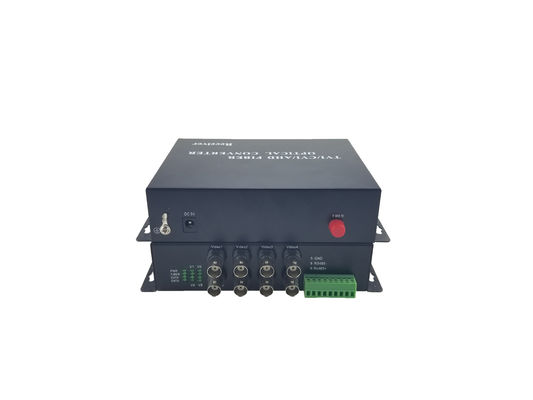

8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber


Key features:



1.  Automatically identify formats of input videos.

2.  Support 1~32ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.

3. With 1-CH reverse RS485 data or without data for optional.

4.  DC 5V power supply.

5.  Support 720p, 960p, 1080p video etc.

6.  Through LED indicators to inform its functional mode.

7.  Industrial wide range of operational temperature.

8.  Plug and play, simple installation.









Application:



²   City traffic monitoring system

²   Public security, safe city monitoring system

²   Highway security protection, charging system

²   Building, campus monitoring net

²   Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

²   Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

²   electric power, oilfield, television program transmission system

²   Gymnasium (live video, audio transmission)









HDTVI TO Fiber Converter System connection diagram

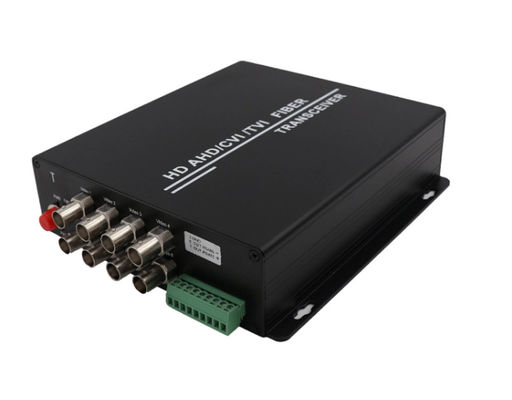

8 channels HDTVI/CVI/AHD to video converter with 1-CH RS485,Single mode fiber









Technical Indexes:



Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC/SC/ST
Distance 0km~80km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDTVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDTVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate <10 -7
Operation Mode Half-Duplex;Full-Duplex;RS-232
Indicators LOS,PWR,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≤ 5W



  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.







Company information:



    Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from Media converter, Video converter(TVI/CVI/AHD/HDMI/VGA/TVI/SDI), to SFP Optical transceiver. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

    Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,finding good markets in many countries and regions including United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
