1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode

China 1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier
1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier 1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier 1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier 1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier 1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier 1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode supplier

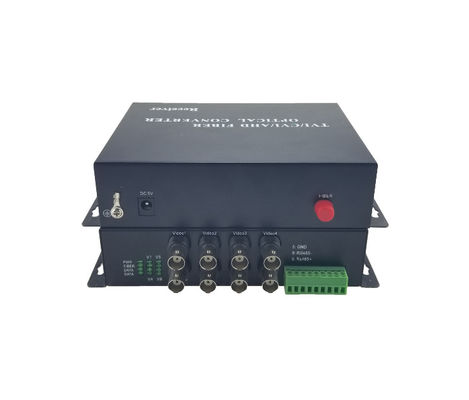

Large Image :  1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC/SGS
Model Number: HL-8V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 10pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: shipped within 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Number Of Channels: 8 Channels Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm Operating Temperature: -40 °C ~ +70 °C

720P/960P/1080P HDTVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode




Product Description



    TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.



   TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.



   TVI Fiber to Converter is designed for long-distance optical fiber transmission HD-CVI/AHD/TVI composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HD-CVI/AHD/TVI composite video.



   Can effectively solve the long-distance optical fiber transmission Dahua HD-CVI , Hikvision HD-TVI and XM HD-AHD camera signals, including 1280H, 1920H of 1,000,000, 1,300,000, 2,000,000 HD-CVI/AHD /TVI signal can also be transmitted to other technical standards HD-CVI /AHD/TVI same camera signal.







Key features



1. Automatically identify formats of input videos.

2. Support 1~8ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.

3. With 1-CH reverse RS485 data or without data for optional.

4. DC 5V power supply.

5. Support 720p, 960p, 1080p video etc.

6. Through LED indicators to inform its functional mode.

7. Industrial wide range of operational temperature.

8. Plug and play, simple installation.









Opitcal:



Wavelength 1310nm&1550nm
Output Power -6~-2dBm
Rx sensitivity -22dBm
Transmission Distance

50/125u multimode,550m

62.5/125u multimode,350m

9/125u single mode, 20km

Optical connector FC,ST,SC (optional)



Video:



Number of Channels 8
Input/output impedance 75Ω
Physical Port BNC port
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 60MHz
Sampling Bandwidth 10bit
Sampling Frequency 120MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°



Data:



Data protocol RS485
Data rate 0~200 Kbps
Error rate < 10-9
Connector Standard terminal lead
Audio
Input/output Impedance 600ohm(unbalance)
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz~29kHz @±3dB
SNR > 70dB
Connector Standard terminal lead



Ethernet:



Work mode Full duplex/half duplex
Data Rate 10/100Mbps(AUTO)
connection terminal

RJ45





  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

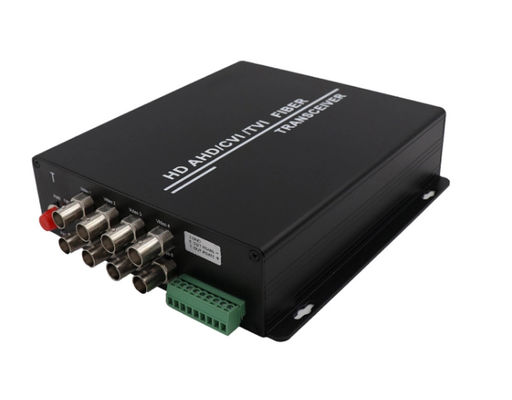

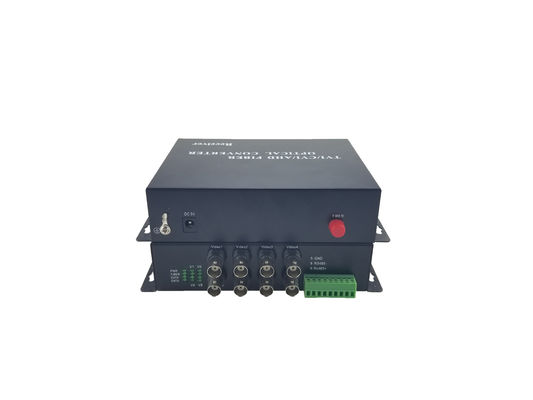

1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode



1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode

1080P/60hz HD CVI AHD TVI fiber optic video converter FC / ST / SC / 20Km,Single Fiber Mode





Company information:



      Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from Media converter, Video converter(TVI/CVI/AHD/HDMI/VGA/TVI/SDI), to SFP Optical transceiver. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

      Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,finding good markets in many countries and regions including United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
