|Product Name:||HDCVI/TVI/AHD To Fiber Converter||Operating Temperature:||-35 °C ~ +75 °C|
|Application:||Telecom Network||Fiber Interface:||FC,SC,ST Optical Interface|
|Optical Signal Intrinsic Jitter:||<0.2 UI||Warranty:||3 Years|

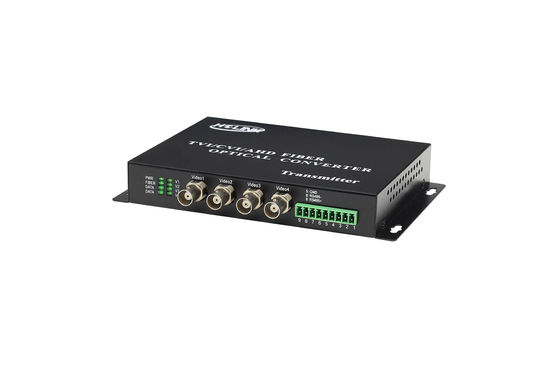

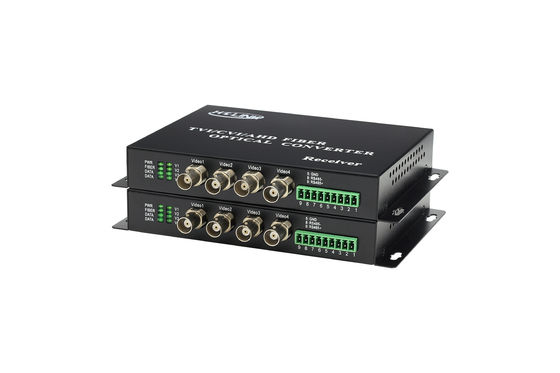

4 Channel Digital Video Converter,IP/AHD/CVI/TVI Signal to DVR,BNC to Fiber Video Transmitter/Receiver
Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount installation, which is suitable for
different working environment .
Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.
² City traffic monitoring system
² Public security, safe city monitoring system
² Highway security protection, charging system
² Building, campus monitoring net
² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
² electric power, oilfield, television program transmission system
² Gymnasium (live video, audio transmission)
AHD TO Fiber Converter System connection diagram
|Optic fiber||50/125u multimode,62.5/125u multimode,9/125u single mode|
|Optical connector||FC,ST,SC (optional)|
|Distance||0~550M (MM) / 0~80KM (SM)|
|Number of Channels||1~16|
|Input/output impedance||BNC 75Ω (unbalance)|
|Standard video input/output voltage||1.0Vp-p|
|Rise and Fall time||<0.8ns|
|Optical Signal Intrinsic Jitter||<0.2 UI|
|Differential Gain||< ±1.5%|
|Differential Phase||< ±1°|
