Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data

China Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data supplier
Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data supplier Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data supplier Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data supplier Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data supplier

Large Image :  Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC
Model Number: H-8CVI/TVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PAIR
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: within 3 working days after payment confirmed
Payment Terms: TT,Western Union,Paypal
Supply Ability: 3000pair/month
Contact Now
Detailed Product Description
Product Name: 8-Ch HDCVI/TVI/AHD To Fiber Video Converter Operating Wavelength: 1550±20nm
Rise And Fall Time: <0.8ns Frequency Range: 47-862MHz
Optical Signal Intrinsic Jitter: <0.2 UI Supply Voltage: 135-270VAC, 50Hz

8-ch Digital HD-CVI Video Fiber Optical Converter+1Ch RS485 data



2. Features

« 4-ch HDSDI

« Range from 19.4Mb/s to 1.485Gb/s

« SMPTE 292M (1.485Gb/s) clock recovery

« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s

« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard

« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

« 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)

« Optional network management system

« LED status indicators monitor the critical parameters

« Optional network system

« Support hot swap

« Stand-alone, 1U rack mount and 4U rack mount



3. Specifications

a) Serial TV, BNC input

Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom rate(19.4Mb/s - 1.485Gb/s)

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @1.485Gb/s

Connector: 75Ω BNC

b) Optics

Channel: 1

Type: single-mode (multimode optional)

Wavelength: 1310nm /1550nm

Reflection loss: > 15dB

Dithering: < 0.2UI

Connector: FC/PC (SC/PC optional)

c) Serial TV, BNC output (EO/OE)

Channel: 4

Signal level: 800mV nominal

Rise/fall time: 200ps indication

Overshoot: < 10% amplitude

Reflection loss: >15dB

Dithering: < 0.2UI

Connector: 75Ω BNC

d) Power and environmental indication

Operating temperature: -45°C~+50°C

Pressure: 1A@12VDC

Power: 12 W

EMI/RFI: meet FCC Part 15 Class A, EU EMC standard

Average time trouble-free: >100000 hours

e) Other

Dimension: 173mm ×276mm ×40.6mm

Weight: 2Kg



4. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links

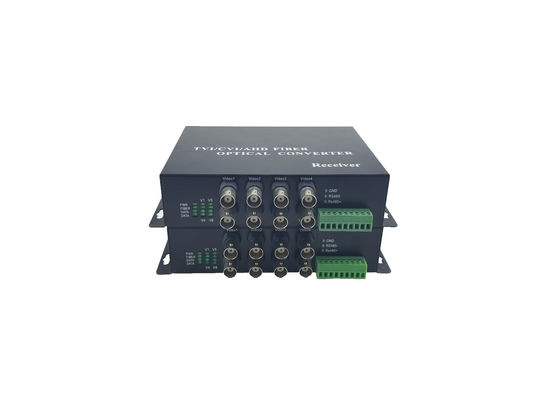

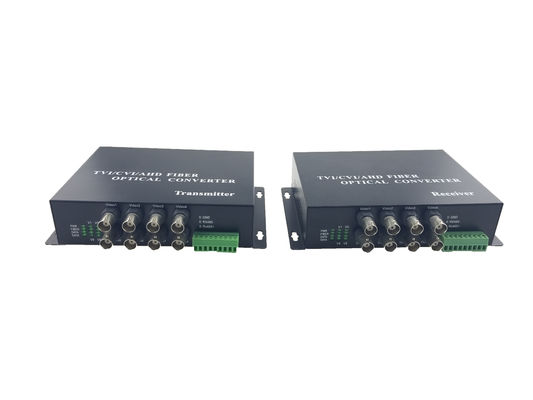

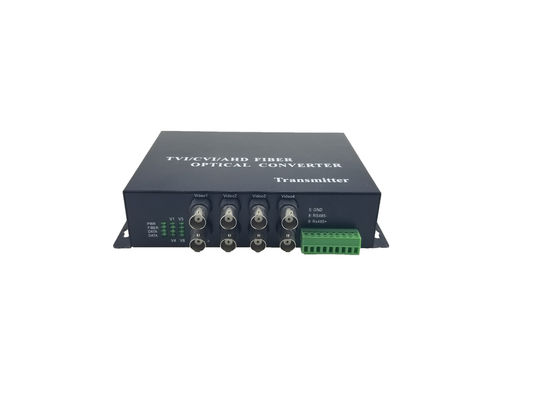

Product Display:


Digital HD 1080p Video Converter With 8 Channel BNC Interface 1-Ch Reverse RS485 Data

Our Advantage:


HDCVI/HDTVI/AHD Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
