sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance

China sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance supplier
sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance supplier sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance supplier

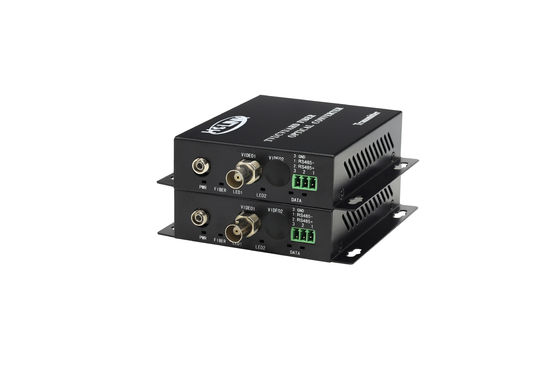

Large Image :  sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC
Model Number: H-2CVI/TVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PAIR
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: within 3 working days after payment confirmed
Payment Terms: TT,Western Union,Paypal
Supply Ability: 10000pair/month
Contact Now
Detailed Product Description
Product Name: 2-Ch HDCVI/TVI/AHD To Fiber Converter Standard Transmission Distance: 20Km
Optical Connector: FC,ST ,SC For Option Receiving Sensitivity: -22dBm
Video Output Input: 2 Channel Forward Video Video Resolution: 720p(25/30/50/60 Pin), 1080p(25/30/50/60 Pin)



Ho-Link 2-Ch Digital HD-CVI Video Fiber Optical Converter







Descriptions:



     HDCVI/TVI/AHD TO Fiber Converter can simultaneously transmit 1-8 channels CVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.

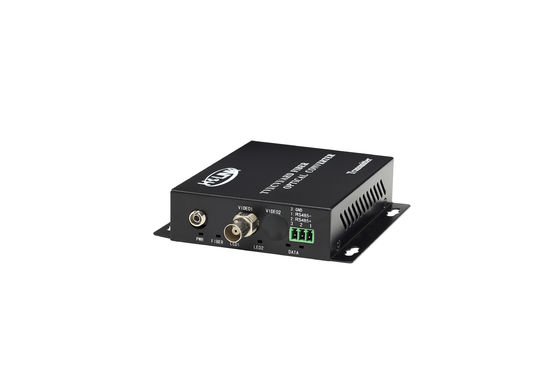

sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance






Features



1) High definition, Lossless non-compression real time transmission

2) Auto recognition of input video format as 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30,1080p/50hz, 1080p/60hz

3) UPnP, easy installation

4) Constant input optical power, and large dynamic range , no electrical or optical adjustments required .

5) Industry-grade of operating temperature from -20to 75

6) Stand-alone type or card-type installed in 19’’ 2U rack-mount chassis.

7) Optical interface: LC/ST/SC/FC (optional)
8) Handles pathological pattern
9) Automatic cable equalization to ensure signal integrity
10) Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
11) Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards
12) Long transmission capability at least 10 km(6.2 miles) , up to 80 km
13) Terminal block power input for industrial application
14) Supports hot swapping and hot plugging









Specifications

Opitcal:
Wavelength 1310nm / 1550nm
Output Power -6~-2dBm
Rx sensitivity -22dBm
Transmission Distance 9/125u single mode, 20km
Optical connector ST (optional)



Video:
Number of Channels 1/2/3
Input/output impedance 75Ω
Physical Port BNC port
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 60MHz
Sampling Bandwidth 10bit
Sampling Frequency 120MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Data:
Data protocol RS485
Data rate 0~200 Kbps
Error rate < 10-9
Connector Standard terminal lead



Other:
Power DC5V 2A / DC 12V2A
Power Consumption ≤8.5W
Temperature -20ºC ~75ºC
Humidity 10%~90% RH
Unit Weight (pair) 2.20kg
Dimension 183mm×154mm×45mm
Installation Wall mount
MTBF ≥ 100000Hours
Case material Aluminum
Packing:
Item Dimension (mm) Package Size (mm) GW (kg)









About US

Holink Technology Co., LTD is an ISO 14000:2004 & ISO 9001:2008 certified manufacturer specialized in R&D, production, sales and services of Optical Transmission products. Relying on the rapid growth of Data Center and HPC, Holink has become a Top-100 maker and one of the earliest suppliers for optical products, including optical modules and HDMI/SDI video over fiber converter.







Application



² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)











AHD TO Fiber Converter System connection diagram

sdi to fiber optic converter 2 Channel HD 1080p Video Converter With 1 Channel RS485 Data 20Km Transmission Distance
