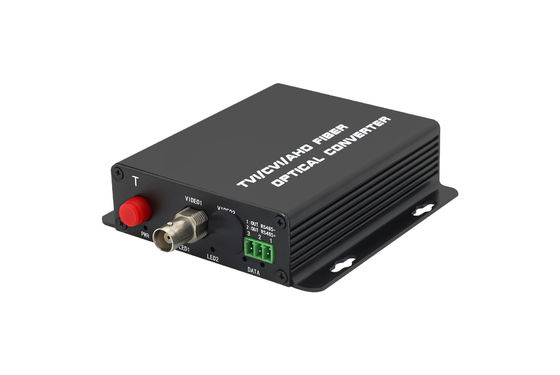

1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter

China 1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier
1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier 1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier 1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier 1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier 1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier 1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter supplier

Large Image :  1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: HL-1V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000pairs per month
Contact Now
Detailed Product Description
Number Of Channels: 1 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm
EPS: DC5V

1 CHANNEL AHD VIDEO CONVERTER



AHD TO Fiber Converter can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter





Feature



*   Non-compression coding technology



*  Automatically identify formats of input videos.



*  Support transmission of 1~8 channel AHD signal and controlling data simultaneously though coaxial cable

DC 5V power supply



*  Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc.



*  Through LED indicators to inform its functional mode





*  Industrial wide range of operational temperature



*  Plug and play, simple installation.









Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)



Video:



Number of Channels 1~8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC



Other



Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1/2ch:1.1kg,4ch:1.8KG,8ch:2.15KG(pair)
Dimension

1/2ch:108mm×106mm×27mm

4ch:173mm×173mm×30mm

8ch:173mm×167mm×45mm

Installation Wall mount
MTBF

≥ 100000Hours











Application



*  City traffic monitoring system



*  Public security, safe city monitoring system



*  Highway security protection, charging system



*  Building, campus monitoring net



*  Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)



*  Military monitoring (storehouse, frontier defense, guard, nation defense, etc)



*  electric power, oilfield, television program transmission system



*  Gymnasium (live video, audio transmission)











Shipping and packing:



Package:neutral /standard/customized packing



Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)

1 Channel TVI/CVI/AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter





Company information:



      Holink Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.



     Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,our first class brand products have long enjoyed good reputation among United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vienam and India
