2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector

China 2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector supplier
2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector supplier 2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector supplier 2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector supplier 2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector supplier 2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector supplier

Large Image :  2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Distance: 10km~80km (Optional) Input Level: >500mVp-p
Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m Input/Output Impedance: 75 Ω
Physical Interface: BNC Connector Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm
Warranty: 3 Years Certification: CE RoHS FCC

2chs digital HD-CVI video Fiber Optical Converter

2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector

Descriptions:



CVI TO Fiber Converter can simultaneously transmit 1-8 channels CVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.





Aplications:

  • Remote OB Van/Truck Video Feeds
  • Broadcast Studio Camera Feeds
  • Long-haul Signal Transport
  • TV station/video conference
  • Lecture Hall Projector Connectivity
  • Medical/Surgical Room Broadcast
  • Building to video conference calling
  • Small corporate campus video links



Technical Indexes:



Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)



Video:



Number of Channels 1~8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC



Other



Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1/2ch:1.1kg,4ch:1.8KG,8ch:2.15KG(pair)
Dimension

1/2ch:108mm×106mm×27mm

4ch:173mm×173mm×30mm

8ch:173mm×167mm×45mm

Installation Wall mount
MTBF ≥ 100000Hours

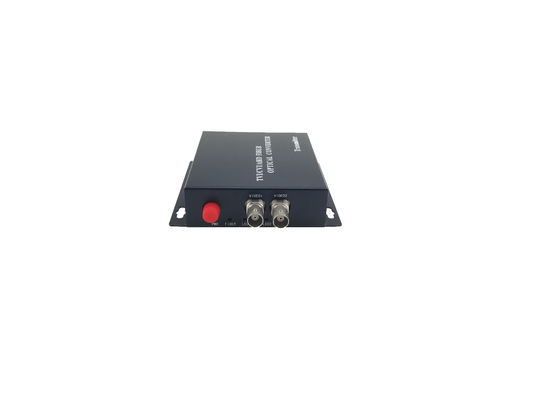

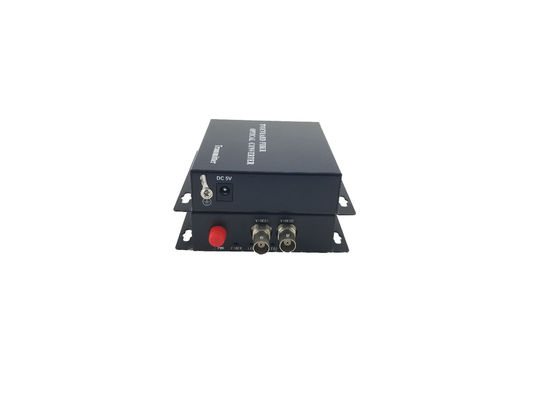

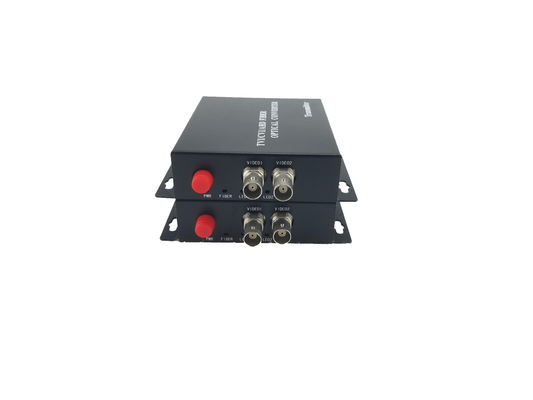

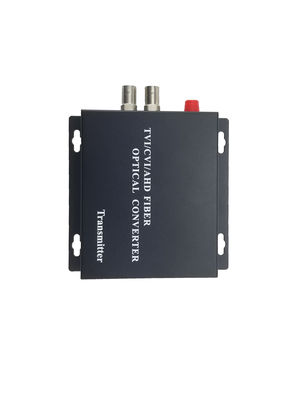

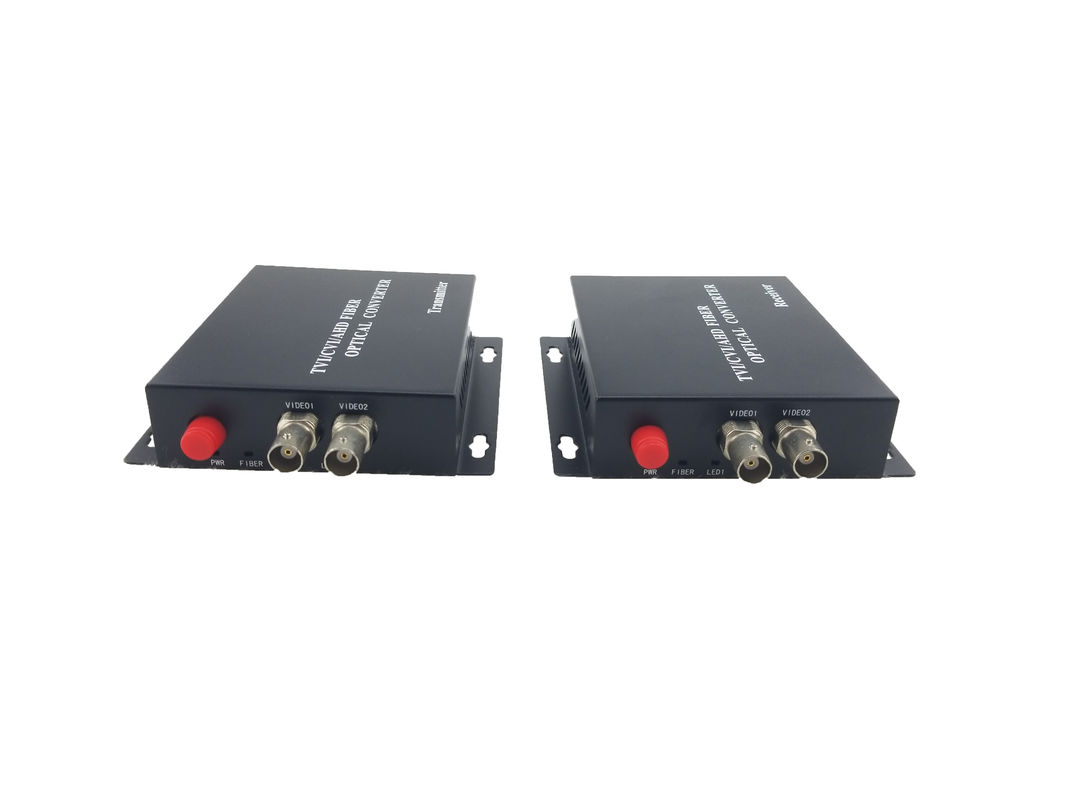

Product Display:


2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector
 2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector
