1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance

China 1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier
1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier 1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier 1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier 1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier 1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier 1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance supplier

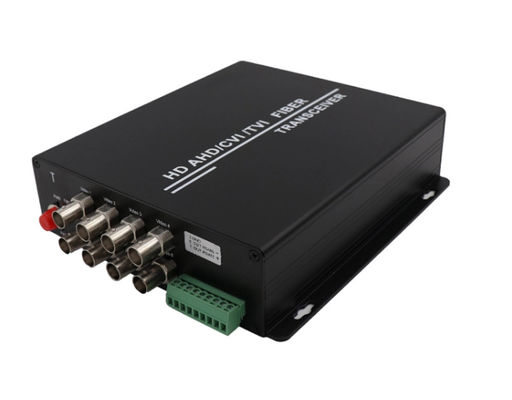

Large Image :  1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Model Number: H-CVI-8V1D-T/RF Optical Connector: FC/SC/ST
Fiber Type: SMF Physical Interface: BNC
Warranty: 3 Years Certification: CE/FCC/RoHs Compliant
Power Supply: DC 5V

8Chs CVI Video to Fiber Optic Converter






Product Description:



    Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer. Powerlink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.


    Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.






Overview:



    HD-AHD/HD-CVI/HD-TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI or HD-TVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.

  HO-link AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-16 channels AHD, HD-CVI or HD-TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.

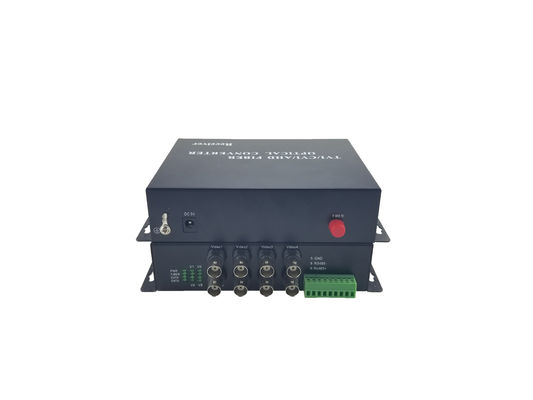

1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance





Features:

  • Non-compression coding technology
  • Automatically identify formats of input videos.
  • Support transmission of combined AHD, HDCVI or HD-TVI signal and controlling PTZ data RS485 simultaneously though fiber optical cable
  • Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.
  • Wide-range temperature application: -40ºC ~75ºC







Application:



8-Channel AHD CVI TVI combined RS485 1080P fiber optic video converter









Technical Indexes



Fiber FC, Single Mode Single Fiber
Transmission Distance 0-120km (Optional)
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Self-adaption cable equilibrium 1080p: 75-5 coaxial cable, 300m
720p: 75-5 coaxial cable, 500m
Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 1-Ch~8-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A or AC220V
Power Consumption ≤7W
Operation Humidity 10%~90%
Operation Temperature -40°C~75°C





About Ho-link

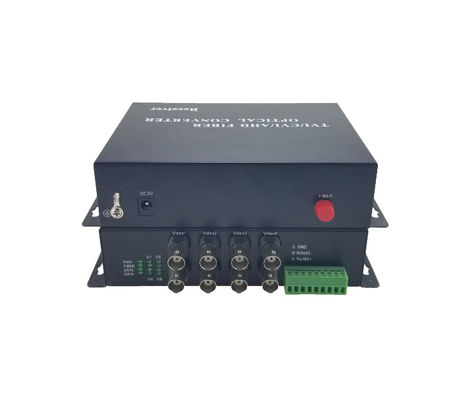

1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance



Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from 4K-SDI | 4K-HDMI | 3G-SDI | HD-SDI | AHD | HDCVI | HDTVI | VGA | DVI Video over Fiber Converter | Fiber Media Converter | SFP Fiber Module .Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world



Holink Technology Co., LTD is an ISO 14000:2004 & ISO 9001:2008 certified manufacturer specialized in R&D, production, sales and services of Optical Transmission products. Relying on the rapid growth of Data Center and HPC, Holink has become a Top-100 maker and one of the earliest suppliers for optical products, including optical modules and HDMI/SDI video over fiber converter.







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

1080P HD CVI TVI AHD to HDMI fiber optic video media converter with RS485 0 - 120km Distance
