1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter

China 1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier
1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier 1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter supplier

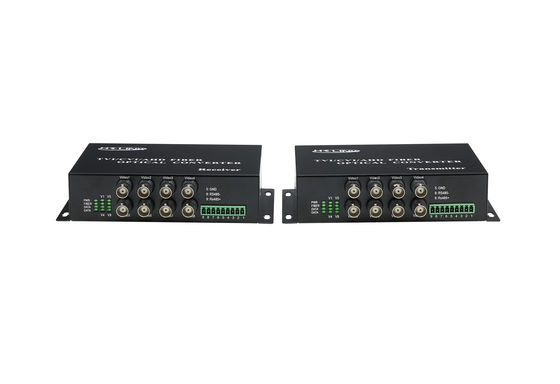

Large Image :  1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Fiber Type: Single Mode Fiber Fiber Connector: FC Or ST Or SC
Distance: 10km~80km (Optional) Work Temperature: -30~+75
Input/Output Impedance: 75 Ω Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm
Interface Type: RS-232/485/422 Manchester

1-16ch AHD Over Fiber Optic,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter







Product Description:



   This video transmitters and receivers support 1-channel of 8-bit digitally encoded broadcast quality video + 1 channel BiDi simplex RS485 data over one multi-mode or single-mode opticalfiber. The devices are directly compatible with NTSC, PAL, and SECAM camera systems. Especially for PTZ Cameras and support RS485, RS232, and RS-422 data protocols.And this devices are available for either stand alone or rack-mount installation with the BATR 14-Slot Chassis.

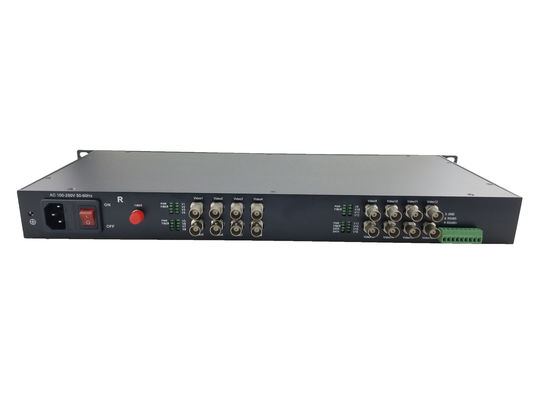

1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter









Features:


* Aluminum alloy shell wall
* Support 1280H and 1920H two HD video format
* All interface adopts three-level anti-static, lightning protection
* Ultra-wide optical dynamic range and advanced adaptive technology , and transmission distance is up to 40 km
* Surface Mount Optical Device, and ensure small volume of products, high stability, high reliability
* Very low electromagnetic interference (EMI),adio-frequency interference (RFI) and a total of ground loop interference
* Rich LED lights, diagnostics indicator
* Plug and play, support hot plug
* The advantage of small dimension,small power,strong anti-interference ability, high fidelity
* Industrial-grade ultra wide temperature range (-40℃~+85℃), adaptive to the harsh environment
* Support user customization and OEM






Applications:


* City traffic monitoring system
* Public security and safe city monitoring system
* Security and charging system on the highway
* Building, campus monitoring network
* Industrial monitoring (airport, chemical, steel, petroleum, railway, water conservancy, mining, etc.)
* Military monitoring (warehouse, frontier defense, the guards, national defense, etc.)
* Television transmission system
* Gymnasium (live video and audio transmission)









Technical specifications



Technical parameter list:
Product Name 2channel HDCVI To Fiber Converter
Product Model HD401-HDCVI-12VT/R
Wavelength 1310nm&1550nm
Fiber Power -8~ -3dBm / -3~+2dBm
Fiber Mode 50/125um Multimode, 62.5/125um Multimode, 9/125um Single-Mode
Receiver Sensitivity -22dBm
Fiber Interface FC, ST , SC (Optional)
Transmission Distance 0~500M(Multimode) / 0~40KM(Single-Mode)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Input & output Impedance 75
Receiver Rise & Fall Time <0.8ns
Receiver Max Jitter <0.2 UI
Physical Interface BNC Interface
Input/output Interface Number 1
LED Light Light Chain, Power Supply, Data and Video Source Lights
Power Supply DC5V 2A
Power Consumption ≤5W
Power Adapter 100V~240V AC Adaptive
Working Environment Working temperature: -40℃~ +85℃; Storage temperature:-40℃~ +85℃; Working humidity: 0~95% No Condensation;
MTBF ≥100,000 Hours








HDTVI TO Fiber Converter System connection diagram

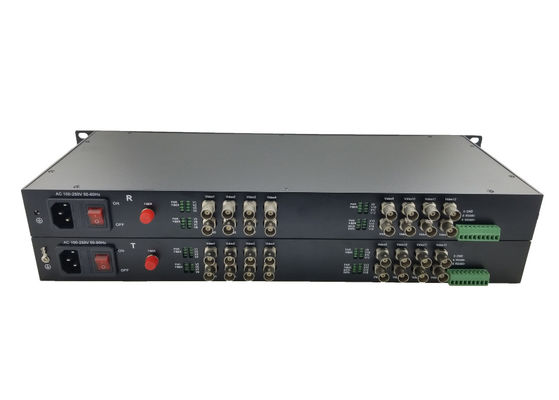

1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter





Order Information:


Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data









Shipping:
1-16ch ahd fiber converter,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter



16ch AHD Over Fiber Optic,16 ch AHD +1 ch RS485(optional) ,fiber optic to coaxial converter





We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
