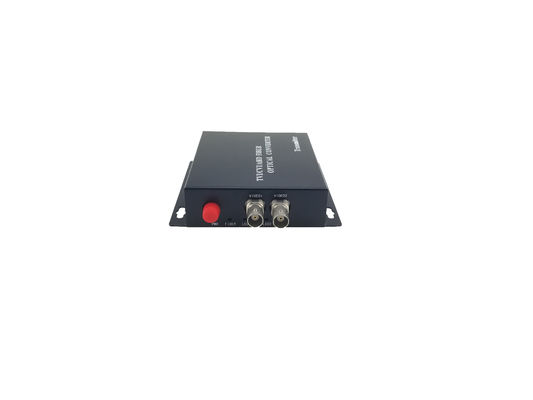

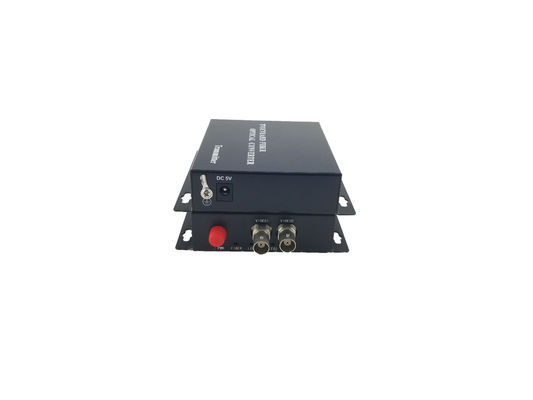

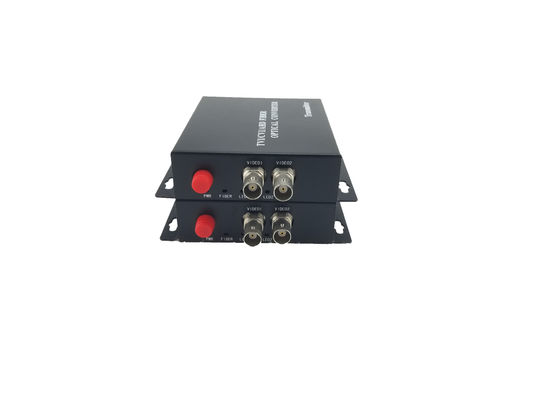

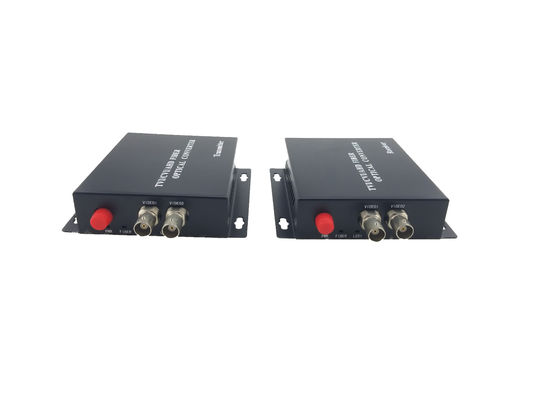

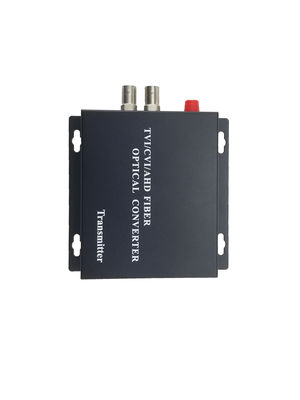

2channels 10bit Sampling Bandwidth fiber optic video converter , 0 ~ 550M Distance audio fiber converter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Optical Connector: | FC | Power Supply: | DC5V |
|---|---|---|---|
| Sampling Bandwidth: | 108MHz | Rise And Fall Time: | <0.8ns |
| Application: | CCTV/Protection/monitor Ect | Fuction Support: | Video,Audio,date,hd-sdi,AVI,AHD,HDMI |
| Network Port: | WDM Optical | Video Port: | 8 Channel 1080P High Resolution |
| Warranty: | 3 Years | ||
| Highlight: | ahd video converter,video optical multiplexer |
||
2 CH AHD video FC connector Single mode single fiber 20km with RS485/RS232/RS422 data optical fiber video converter
Description
Our AHD Video over Fiber Converters can simultaneously transmit 8 channel AHD/TVI/CVI video over fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Compatible with AHD-H, AHD-M, AHD-L / HD-TVI 720P & 1080P / HD-CVI 720P & 1080P.
Features:
- Ø Non-compression coding technology
- Ø Automatically identify formats of input videos
- Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
- Ø DC 5V power supply
- Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
- Ø Through LED indicators to inform its functional mode
- Ø Industrial wide range of operational temperature
- Ø Plug and play, simple installation
Certifications
ROHS, FCC
Specifications
|
Optical
|
Wavelength | 1310nm&1550nm |
| Output Power | -8~3dBm | |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode | |
| Rx sensitivity | -25dBm | |
| Optical connector | FC,ST,SC (optional) | |
| Distance | 0~550M (MM) / 0~20KM (SM) | |
|
Video
|
Number of Channels | 8 |
| Input/output impedance | BNC 75Ω (unbalance) | |
| Standard video input/output voltage | 1.0Vp-p | |
| Video Bandwidth | 45MHz | |
| Sampling Bandwidth | 10bit | |
| Sampling Frequency | 108MHz | |
| Rise and Fall time | <0.8ns | |
| Optical Signal Intrinsic Jitter | <0.2 UI | |
| Differential Gain | < ±1.5% | |
| Differential Phase | < ±1° | |
| Connector | BNC | |
|
Other
|
Power | DC5V 2A |
| Power Consumption | ≤6W | |
| Temperature | -40ºC ~75ºC | |
| Humidity | 10%~90% RH | |
| Unit Weight | 1/2ch :0.75kg, 4ch/8ch: 1.5KG(pair) | |
| Dimension |
1/2ch : 104mm×104mm×28mm 4ch/8ch: 183mm×154mm×30mm |
|
| Installation | Wall mount | |
| MTBF | ≥ 100000Hours |
System connection diagram
AHD TO Fiber Converter System connection diagram
- Ø City traffic monitoring system
- Ø Public security, safe city monitoring system
- Ø Highway security protection, charging system
- Ø Building, campus monitoring net
- Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
- Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
- Ø electric power, oilfield, television program transmission system
- Ø Gymnasium (live video, audio transmission)
Order Information:
| Part No. | Description |
| H-TVI/CVI/AHD-1V-T/RF | 1 Ch Forward TVI/CVI/ AHD Video |
| H-TVI/CVI/AHD-1V1D-T/RF | 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-2V-T/RF | 2 Ch Forward TVI / CVI / AHD Video |
| H-TVI/CVI/AHD-2V1D-T/RF | 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-4V-T/RF | 4 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-4V1D-T/RF | 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-8V-T/RF | 8 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-8V1D-T/RF | 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-16V-T/RF | 16 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-16V1D-T/RF | 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
| H-TVI/CVI/AHD-32V-T/RF | 32 Ch Forward TVI /CVI / AHD Video |
| H-TVI/CVI/AHD-32V1D-T/RF | 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data |
We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
